YN130R-GKPSEQ (1989)

Toyota Hilux/4runner (4wd)

Production Aug 1989 - Aug 1990
Engine 4YE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

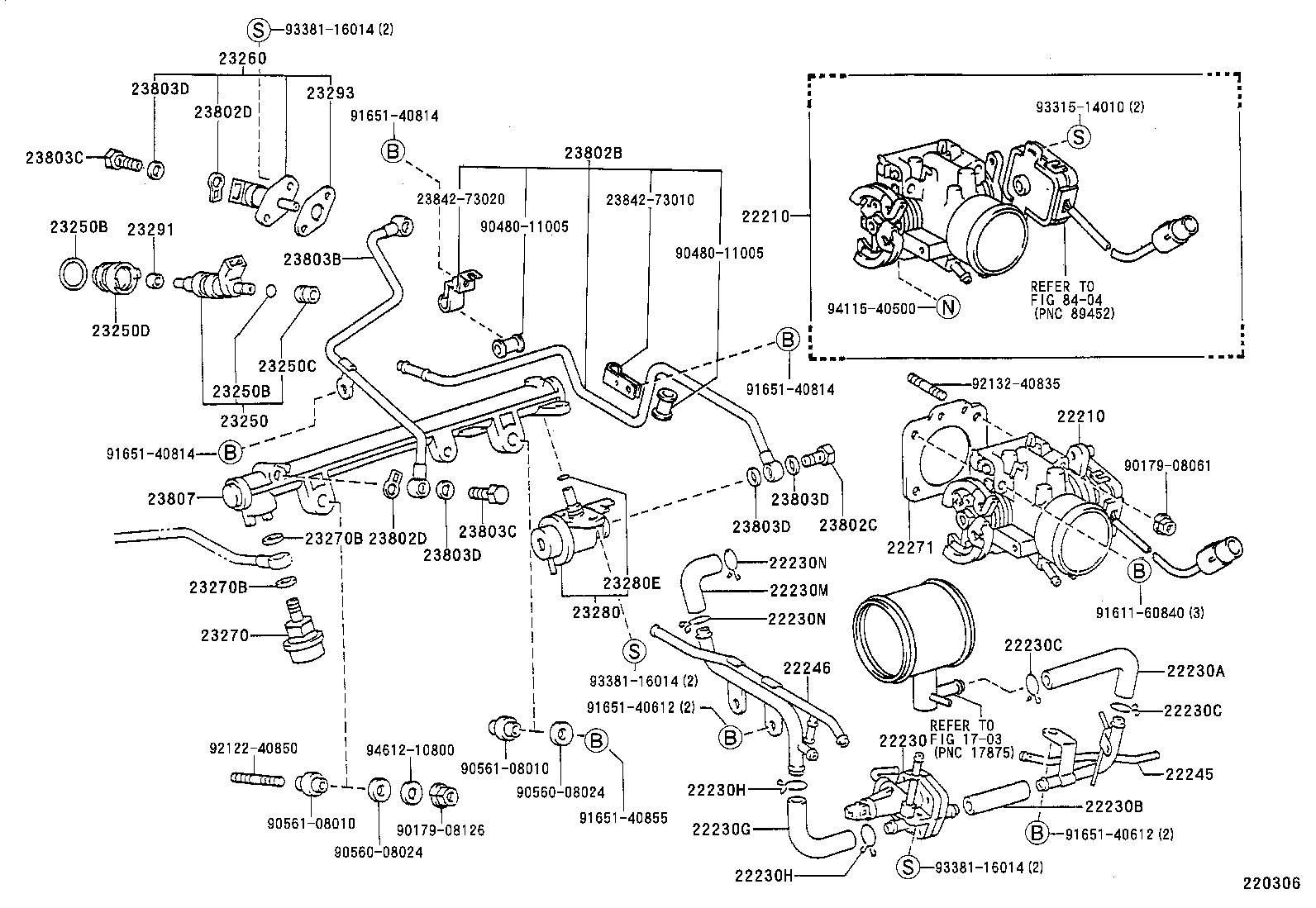

ILLUST NO. 1 OF 3(8908-9008)4YE

Click highlighted areas on diagram

diagram 1703 22210 22210 22230 22230A 22230B 22230C 22230C 22230G 22230H 22230H 22230M 22230N 22230N 22245 22246 22271 23250 23250B 23250B 23250C 23250D 23260 23270 23270B 23270B 23280 23280E 23291 23293 23802B 23802C 23802D 23802D 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23807 2384273010 2384273020 8404 9017908061 9017908126 9048011005 9048011005 9056008024 9056008024 9056108010 9056108010 9161160840 9165140612 9165140612 9165140814 9165140814 9165140814 9165140855 9212240850 9213240835 9331514010 9338116014 9338116014 9338116014 9411540500 9461210800
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-73050

4YE..YN130

 1
22210 - BODY ASSY, THROTTLE
22210-73050

4YE..YN130

 1
22230 - VALVE ASSY, AUXILIARY AIR
22230-73011

4YE..YN130

 1
22230A - HOSE, AUXILIARY AIR VALVE, NO.1
22233-73021

4YE..YN130

 1
22230B - HOSE, AUXILIARY AIR VALVE, NO.2
90445-21008

4YE..YN130

 1
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-19003

4YE..YN130

 1
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-19003

4YE..YN130

 1
22230G - HOSE, AUXILIARY AIR VALVE, NO.3
22236-73011

4YE..YN130

 1
22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3
90467-19003

4YE..YN130

 2
22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3
90467-19003

4YE..YN130

 2
22230M - HOSE, AUXILIARY AIR VALVE, NO.4
22237-73010

4YE..YN130

 1
22230N - CLIP, AUXILIARY AIR VALVE, NO.4
90467-19003

4YE..YN130

 2
22230N - CLIP, AUXILIARY AIR VALVE, NO.4
90467-19003

4YE..YN130

 2
22245 - PIPE, AUXILIARY AIR, NO.2
22245-73020

4YE..YN130

 1
22246 - PIPE, AUXILIARY AIR, NO.3
22246-73012

4YE..YN130

 1
22271 - GASKET, THROTTLE BODY
22271-73011

4YE..YN130

 1
22271-73010

4YE..YN130

 1
23250 - INJECTOR ASSY, FUEL
23209-45011

4YE..YN130

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-23004

4YE..YN130

MANIFOLD SIDE

 4
90301-07001

4YE..YN130

DELIVERY PIPE SIDE

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-23004

4YE..YN130

MANIFOLD SIDE

 4
90301-07001

4YE..YN130

DELIVERY PIPE SIDE

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

4YE..YN130

 4
23250D - SPACER(FOR FUEL INJECTOR)
90561-10002

4YE..YN130

 4
23260 - INJECTOR ASSY, COLD START FUEL
23260-79085

4YE..YN130

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-73010

4YE..YN130

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-28010

4YE..YN130

DAMPER SIDE

 1
90430-12005

4YE..YN130

PIPE SIDE

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-28010

4YE..YN130

DAMPER SIDE

 1
90430-12005

4YE..YN130

PIPE SIDE

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-73040

4YE..YN130

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

4YE..YN130

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-73010

4YE..YN130

 4
23293 - GASKET, COLD START INJECTOR
23293-73011

4YE..YN130

 1
23293-73010

4YE..YN130

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-73020

4YE..YN130

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08004

4YE..YN130

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08011

4YE..YN130

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08011

4YE..YN130

 2
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-73011

4YE..YN130

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08004

4YE..YN130

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08004

4YE..YN130

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08009

4YE..YN130

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08009

4YE..YN130

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08009

4YE..YN130

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08009

4YE..YN130

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-73010

4YE..YN130

 1
Common parts
23842-73010
23842-73020
90179-08061
90179-08126
90480-11005
90560-08024
90561-08010
91611-60840
91651-40612
91651-40814
91651-40855
92122-40850
92132-40835
93315-14010
93381-16014
94115-40500
94612-10800
Linked diagrams
1703
8404

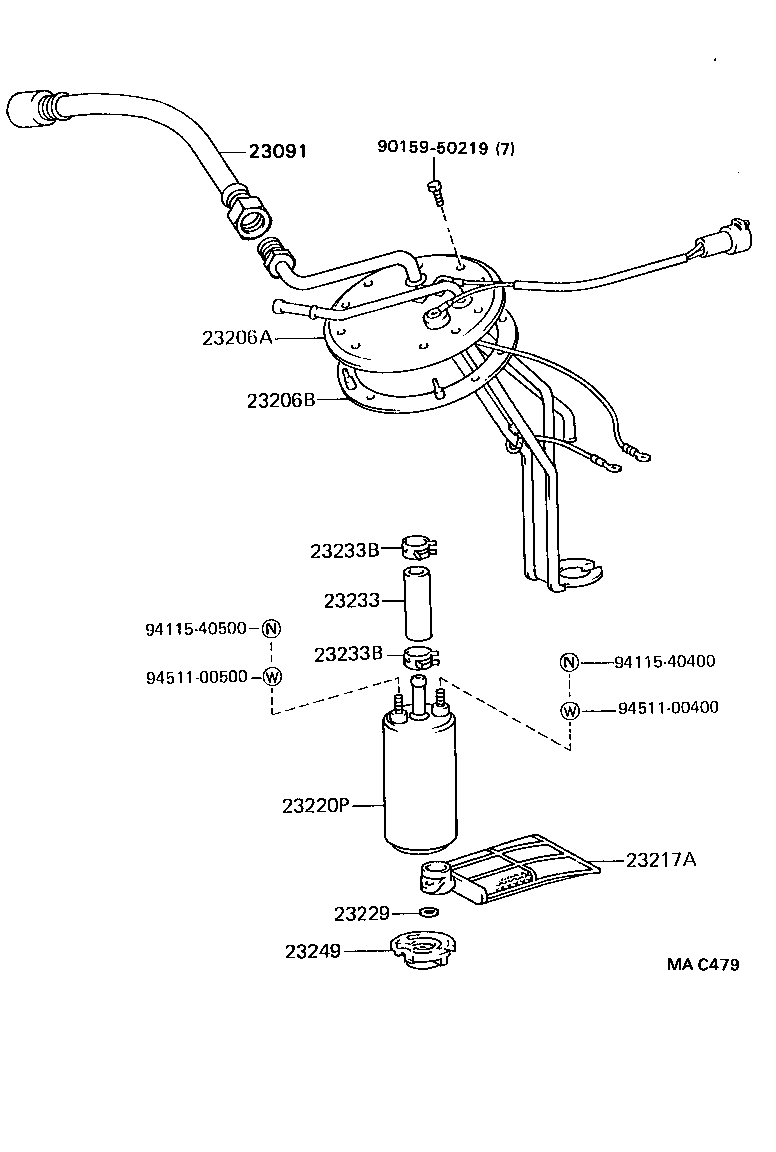

ILLUST NO. 3 OF 3(8908-9008)4YE

Click highlighted areas on diagram

diagram 23091 23206A 23206B 23217A 23220P 23229 23233 23233B 23233B 23249 9015950219 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-35080

4YE..YN130

 1
23206A - BRACKET, FUEL PUMP
23206-35220

4YE..YN130

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-14010

4YE..YN130

 1
23217A - FILTER, FUEL PUMP
23217-35040

4YE..YN130

 1
23220P - PUMP ASSY, FUEL
23220-16190

4YE..YN130

NIPPONDENSO

 1
23220-16084

4YE..YN130

AISAN

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

4YE..YN130

 1
23233 - HOSE, FUEL PUMP
23239-63010

4YE..YN130

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

4YE..YN130

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

4YE..YN130

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74150

4YE..YN130

 1
Common parts
90159-50219
94115-40400
94115-40500
94511-00400
94511-00500

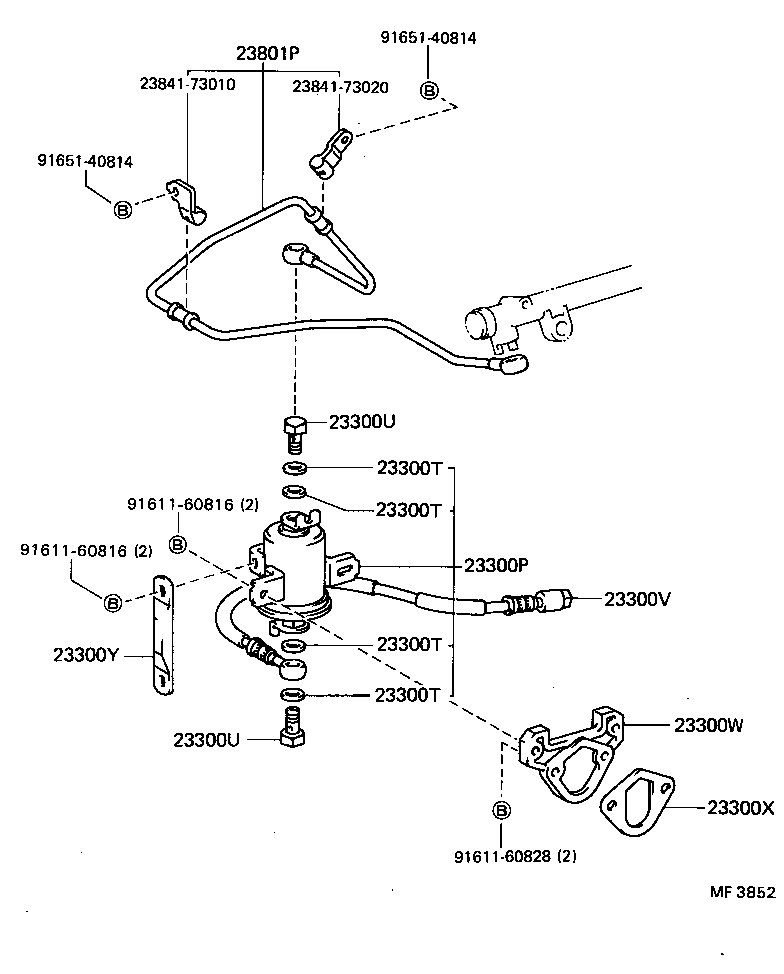

ILLUST NO. 2 OF 3(8908-9008)4YE

Click highlighted areas on diagram

diagram 23300P 23300T 23300T 23300T 23300T 23300U 23300U 23300V 23300W 23300X 23300Y 23801P 2384173010 2384173020 9161160816 9161160816 9161160828 9165140814 9165140814
Part # Description Qty Price
23300P - FILTER, FUEL(FOR EFI)
23300-79165

4YE..YN130

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4YE..YN130

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4YE..YN130

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4YE..YN130

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4YE..YN130

 4
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4YE..YN130

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4YE..YN130

 2
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01342

4YE..YN130

 1
23300W - BRACKET, FUEL FILTER
23264-73010

4YE..YN130

 1
23300X - INSULATOR(FOR FUEL FILTER BRACKET)
90923-06013

4YE..YN130

 1
90923-06006

4YE..YN130

 1
23300Y - SUPPORT, FUEL FILTER
23921-73010

4YE..YN130

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-73010

4YE..YN130

 1
Common parts
23841-73010
23841-73020
91611-60816
91611-60828
91651-40814
