YN130R-GJPSEQ (1989)

Toyota Hilux/4runner (4wd)

Production Aug 1989 - Aug 1990
Engine 4YE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2D

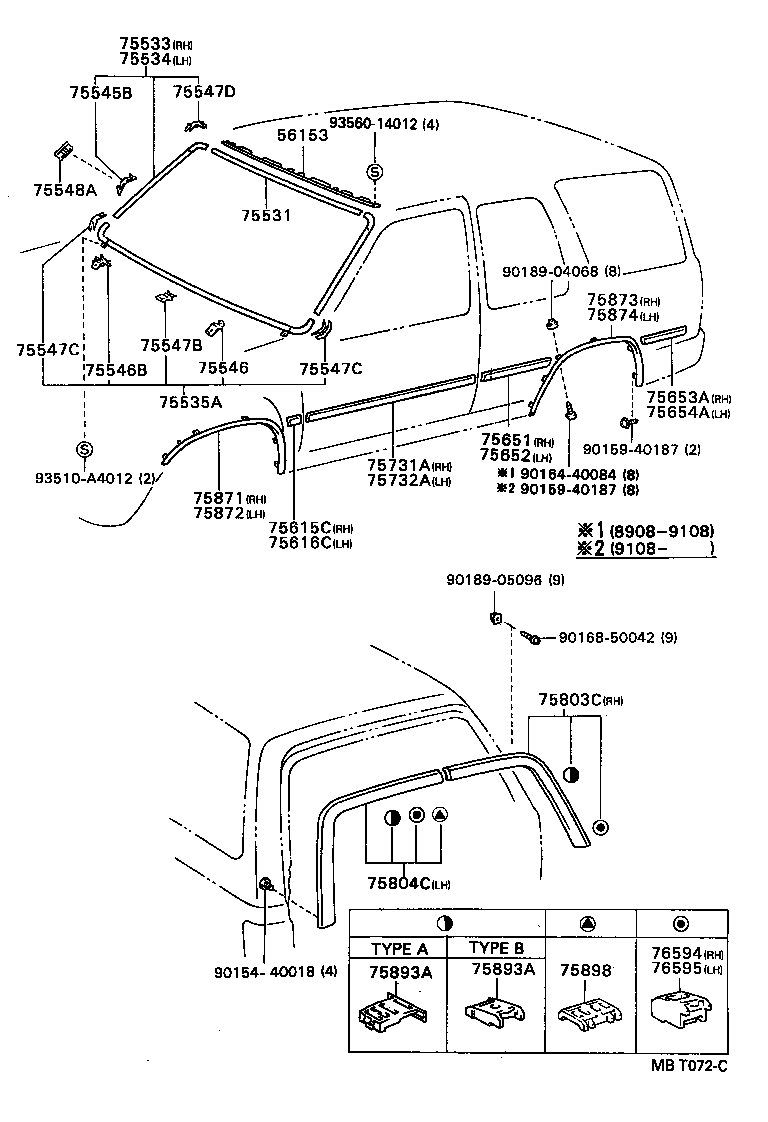

Click highlighted areas on diagram

diagram 56153 75531 75533 75534 75535A 75545B 75546 75546B 75547B 75547C 75547C 75547D 75548A 75615C 75616C 75651 75652 75653A 75654A 75731A 75732A 75803C 75804C 75871 75872 75873 75874 75893A 75893A 75898 76594 76595 9015440018 9015940187 9015940187 9016440084 9016850042 9018904068 9018905096 93510A4012 9356014012
Part # Description Qty Price
75615C - MOULDING, FRONT FENDER, REAR RH
75615-89111

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#..CBU

 1
75616C - MOULDING, FRONT FENDER, REAR LH
75616-89111

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#..CBU

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-89109

LN106,111,130,RN105,110,130,VZN130,YN106,130..(2D,T1)..CBU

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-89109

LN106,111,130,RN105,110,130,VZN130,YN106,130..(2D,T1)..CBU

 1
Common parts
90154-40018
90159-40187
90164-40084
90168-50042
90189-04068
90189-05096
93510-A4012
93560-14012
