YN130R-GJPSEQ (1989)

Toyota Hilux/4runner (4wd)

Production Aug 1989 - Aug 1990
Engine 4YE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2D

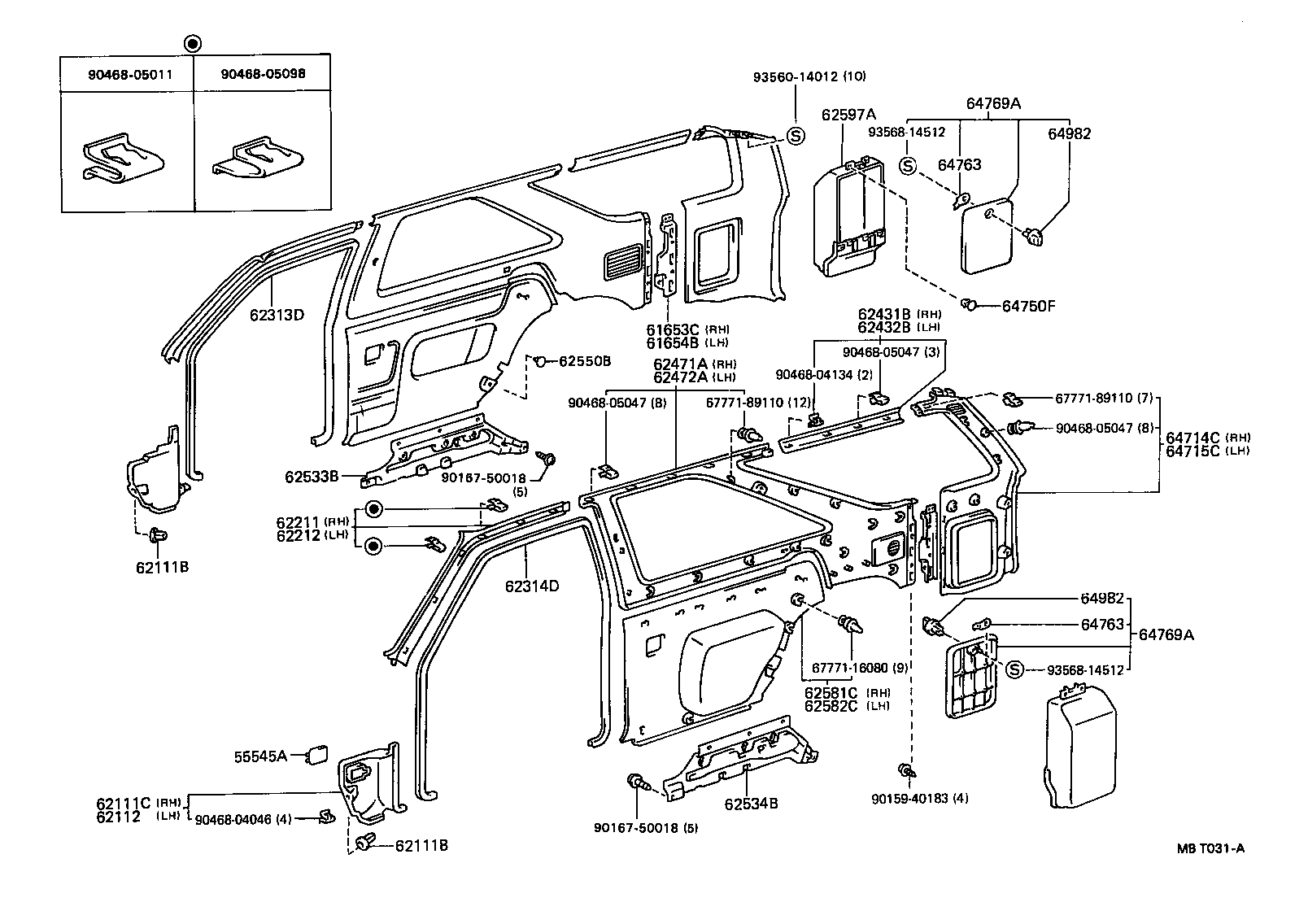

Click highlighted areas on diagram

diagram 55545A 61653C 61654B 62111B 62111B 62111C 62112 62211 62212 62313D 62314D 62431B 62432B 62471A 62472A 62533B 62534B 62550B 62581C 62582C 62597A 64714C 64715C 64750F 64763 64763 64769A 64769A 64982 64982 6777116080 6777189110 6777189110 9015940183 9016750018 9016750018 9046804046 9046804134 9046805011 9046805047 9046805047 9046805047 9046805098 9356014012 9356814512 9356814512
Part # Description Qty Price
62471A - GARNISH, ROOF SIDE, INNER RH
62471-8910304

LN130,RN130,YN130..2D

W(REAR SPEAKER),BLUE,TRIM8#

 1
62471-8910303

LN130,RN130,YN130..2D

W(REAR SPEAKER),GRAY,TRIM1#

 1
62471-8910306

LN130,RN130,YN130..2D

W(REAR SPEAKER),BROWN,TRIM4#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-8910304

LN130,RN130,YN130..2D

W(REAR SPEAKER),BLUE,TRIM8#

 1
62472-8910303

LN130,RN130,YN130..2D

W(REAR SPEAKER),GRAY,TRIM1#

 1
62472-8910306

LN130,RN130,YN130..2D

W(REAR SPEAKER),BROWN,TRIM4#

 1
62581C - GARNISH, REAR WINDOW SIDE, RH
62550-8910203

LN130,RN130,YN130..2D

W(SPORT SEAT),GRAY,TRIM1#

 1
62550-8910206

LN130,RN130,YN130..2D

W(SPORT SEAT),BROWN,TRIM4#

 1
62550-8910103

LN130,RN130,YN130..2D

GRAY,TRIM1#

 1
62550-8910204

LN130,RN130,YN130..2D

W(SPORT SEAT),BLUE,TRIM8#

 1
62550-8910106

LN130,RN130,YN130..2D

BROWN,TRIM4#

 1
62550-8910104

LN130,RN130,YN130..2D

BLUE,TRIM8#

 1
62582C - GARNISH, REAR WINDOW SIDE, LH
62560-8910104

LN130,RN130,YN130..2D

BLUE,TRIM8#

 1
62560-8910203

LN130,RN130,YN130..2D

W(SPORT SEAT),GRAY,TRIM1#

 1
62560-8910103

LN130,RN130,YN130..2D

GRAY,TRIM1#

 1
62560-8910106

LN130,RN130,YN130..2D

BROWN,TRIM4#

 1
62560-8910206

LN130,RN130,YN130..2D

W(SPORT SEAT),BROWN,TRIM4#

 1
62560-8910204

LN130,RN130,YN130..2D

W(SPORT SEAT),BLUE,TRIM8#

 1
64982 - KNOB, COVER
64982-1602053

LN111,13#,RN110,13#,VZN130,YN13#

MEDIUM GRAY,TRIM1#

 2
64982-1602059

LN111,13#,RN110,13#,VZN130,YN13#

BLUE,TRIM8#

 2
64982-1602050

LN111,13#,RN110,13#,VZN130,YN13#

BROWN,TRIM4#

 2
64982 - KNOB, COVER
64982-1602053

LN111,13#,RN110,13#,VZN130,YN13#

MEDIUM GRAY,TRIM1#

 2
64982-1602059

LN111,13#,RN110,13#,VZN130,YN13#

BLUE,TRIM8#

 2
64982-1602050

LN111,13#,RN110,13#,VZN130,YN13#

BROWN,TRIM4#

 2
Common parts
67771-16080
67771-89110
90159-40183
90167-50018
90468-04046
90468-04134
90468-05011
90468-05047
90468-05098
93560-14012
93568-14512
