YN106R-TRMRS3 (1988)

Toyota Hilux/4runner (4wd)

Production Aug 1988 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

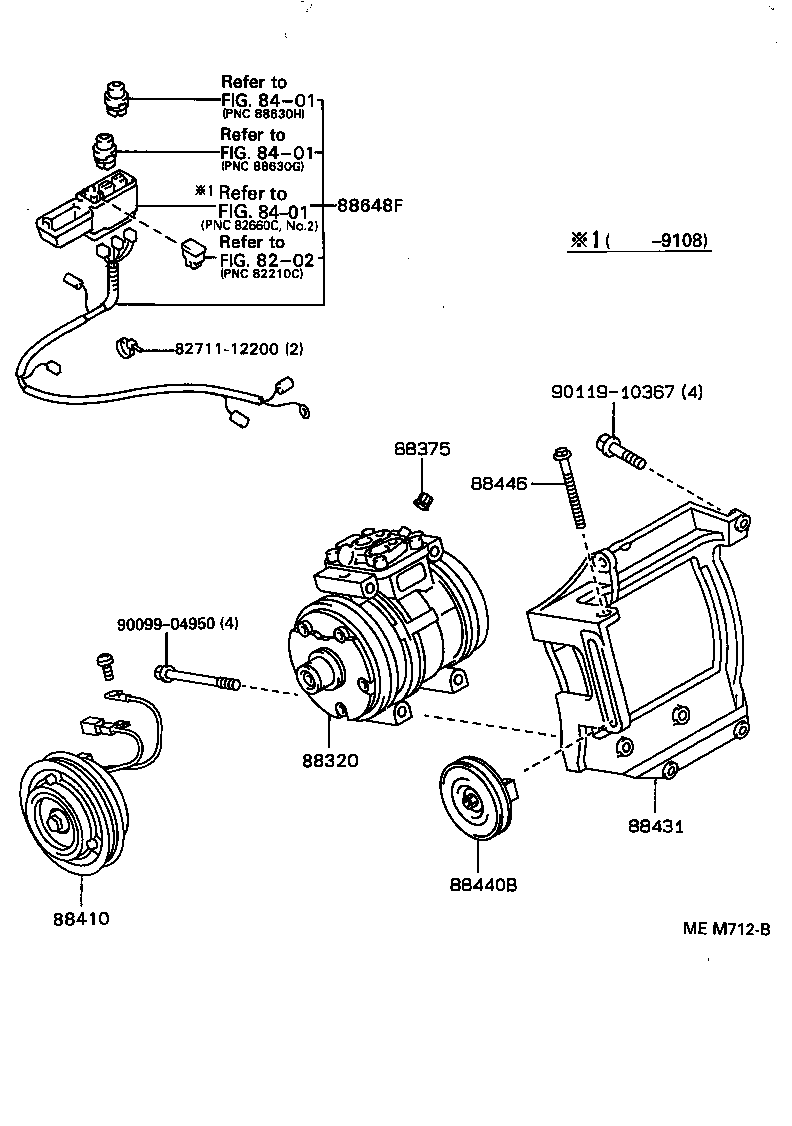

ILLUST NO. 1 OF 3(8808- )YN106,13#

Click highlighted areas on diagram

diagram 8202 8271112200 8401 8401 8401 88320 88375 88410 88431 88440B 88446 88648F 9009904950 9011910367
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-35260

YN106

 1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-20010

LN106,111,135,RN105,135,YN106,135..GEN,V

DISCHARGE

 1
88375-20010

RN105..V;LN106,111,135,RN135,VZN130,YN106,135

DISCHARGE

 1
88410 - CLUTCH ASSY, MAGNET
88410-35050

YN106

 1
88410-35050

YN106;LN106,111..ARL

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35160

YN106,13#

 1
88440B - PULLEY ASSY, IDLE
88440-35040

VZN130,YN106,13#

 1
88446 - BOLT, IDLE PULLEY
88446-35040

YN106,135;LN106,111,130..ARL

 1
88446-35040

YN106,135;LN135..LHD;LN106,111..ARL

 1
88446-35040

YN106,135;LN106,111..ARL

 1
Common parts
82711-12200
90099-04950
90119-10367
Linked diagrams
8202
8401

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907114 9009907125
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-35260

YN106

 1
88410 - CLUTCH ASSY, MAGNET
88410-35050

YN106

 1
88410-35050

YN106;LN106,111..ARL

 1
Common parts
90099-04349
90099-07114
90099-07125

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 88321 88321 88321A 88321A 88335 88336 88343B 88343B 88344C 88344C 88360A 88360C 88371A 88374A 88374A 88375 88375 88376 88376 9009904370 9009904924 9009908058 9009908058
Part # Description Qty Price
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-20010

LN106,111,135,RN105,135,YN106,135..GEN,V

DISCHARGE

 1
88375-20010

RN105..V;LN106,111,135,RN135,VZN130,YN106,135

DISCHARGE

 1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-20010

LN106,111,135,RN105,135,YN106,135..GEN,V

DISCHARGE

 1
88375-20010

RN105..V;LN106,111,135,RN135,VZN130,YN106,135

DISCHARGE

 1
Common parts
90099-04370
90099-04924
90099-08058
