YN106R-TRMRS3 (1988)
Toyota Hilux/4runner (4wd)
(8808- )4Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-72010 |
4Y..YN106,135..RHD |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-72170 |
4Y..YN106,135 CYCLONE TYPE |
1 | ||
| 17700-72190 |
4Y..YN106,135..RHD W(HOT AIR INTAKE) |
1 | ||
| 17700-72180 |
4Y..YN106,135 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-72170 |
4Y..YN106,135 CYCLONE TYPE |
1 | ||
| 17700-72190 |
4Y..YN106,135..RHD W(HOT AIR INTAKE) |
1 | ||
| 17700-72180 |
4Y..YN106,135 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4Y..YN106 |
1 | ||
| 94271-00800 |
4Y..YN106,135 CYCLONE TYPE,NO.1 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06024 |
4Y..YN106,135 |
1 | ||
| 17700V - BUSH(FOR AIR CLEANER) | ||||
| 90386-03001 |
4Y..YN106,135..RHD |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-73080 |
4Y..YN106,135 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-34010 |
4Y..YN106,135..RHD |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
4Y..YN106,135..RHD |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
4Y..YN106,135..RHD |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34070 |
4Y..YN106,135 |
1 | ||
| 17801-54080 |
4Y..YN106,135 CYCLONE TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
4Y..YN106,135 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-73030 |
4Y..YN106,135..RHD CYCLONE TYPE |
1 | ||
| 17881-74040 |
4Y..YN106,135..RHD W(HOT AIR INTAKE) |
1 | ||
| 17881-16210 |
4Y..YN106,135..RHD W(HOT AIR INTAKE) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
4Y..YN106,135..RHD W(HOT AIR INTAKE) |
1 | ||
| 96111-10780 |
4Y..YN106,135..RHD CYCLONE TYPE |
2 | ||
| 17882D - HOSE, COOL AIR INTAKE | ||||
| 17882-89109 |
4Y..YN106,135 |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-73050 |
4Y..YN106,135..RHD |
1 | ||
| 17895-71010 |
4Y..YN106,135..RHD |
1 | ||
| Common parts | ||||
| 90460-01053 | ||||
| 91651-40612 | ||||
| 91651-F0814 | ||||
(8808- )4Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-72170 |
4Y..YN106,135 CYCLONE TYPE |
1 | ||
| 17700-72190 |
4Y..YN106,135..RHD W(HOT AIR INTAKE) |
1 | ||
| 17700-72180 |
4Y..YN106,135 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4Y..YN106 |
1 | ||
| 94271-00800 |
4Y..YN106,135 CYCLONE TYPE,NO.1 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4Y..YN106 |
1 | ||
| 94271-00800 |
4Y..YN106,135 CYCLONE TYPE,NO.1 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08024 |
4Y..YN106,135 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06024 |
4Y..YN106,135 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34070 |
4Y..YN106,135 |
1 | ||
| 17801-54080 |
4Y..YN106,135 CYCLONE TYPE |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-73030 |
4Y..YN106,135 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
4Y..YN106,135 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-73030 |
4Y..YN106,135..RHD CYCLONE TYPE |
1 | ||
| 17881-74040 |
4Y..YN106,135..RHD W(HOT AIR INTAKE) |
1 | ||
| 17881-16210 |
4Y..YN106,135..RHD W(HOT AIR INTAKE) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
4Y..YN106,135..RHD W(HOT AIR INTAKE) |
1 | ||
| 96111-10780 |
4Y..YN106,135..RHD CYCLONE TYPE |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
4Y..YN106,135..RHD W(HOT AIR INTAKE) |
1 | ||
| 96111-10780 |
4Y..YN106,135..RHD CYCLONE TYPE |
2 | ||
| Common parts | ||||
| 90119-08761 | ||||
| 91626-60818 | ||||

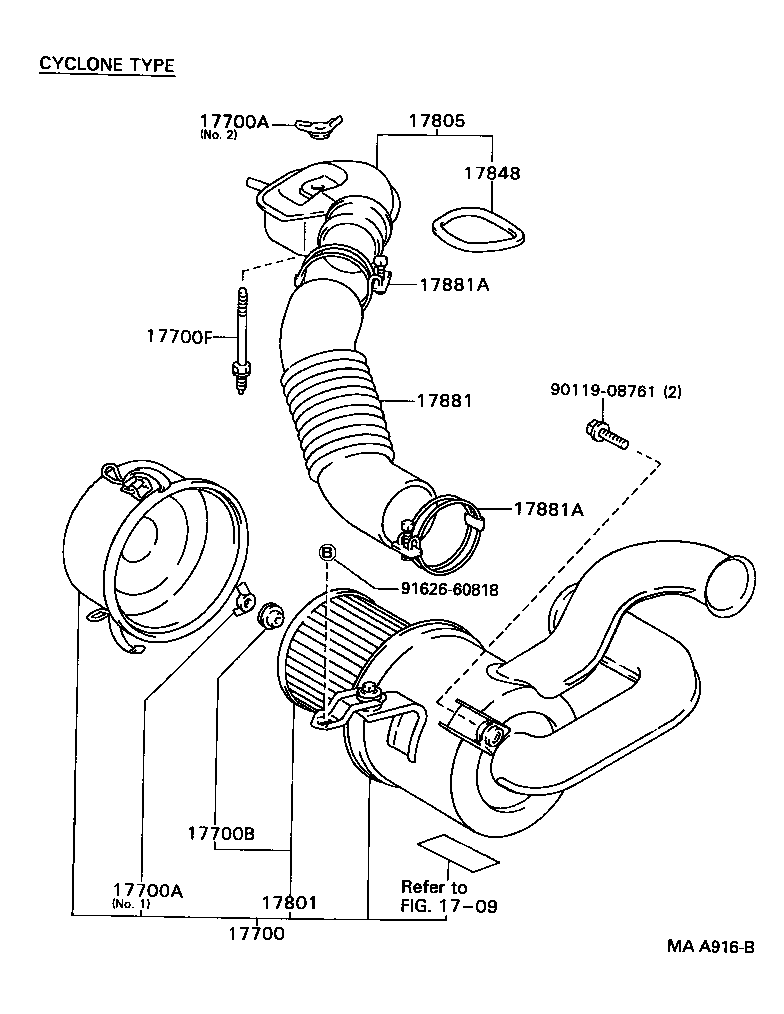

| Linked diagrams | ||||
| 1709 | ||||
