YN106R-PRMRS (1988)

Toyota Hilux/4runner (4wd)

Production Aug 1988 - Aug 1997
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8808- )YN106..RHD

Click highlighted areas on diagram

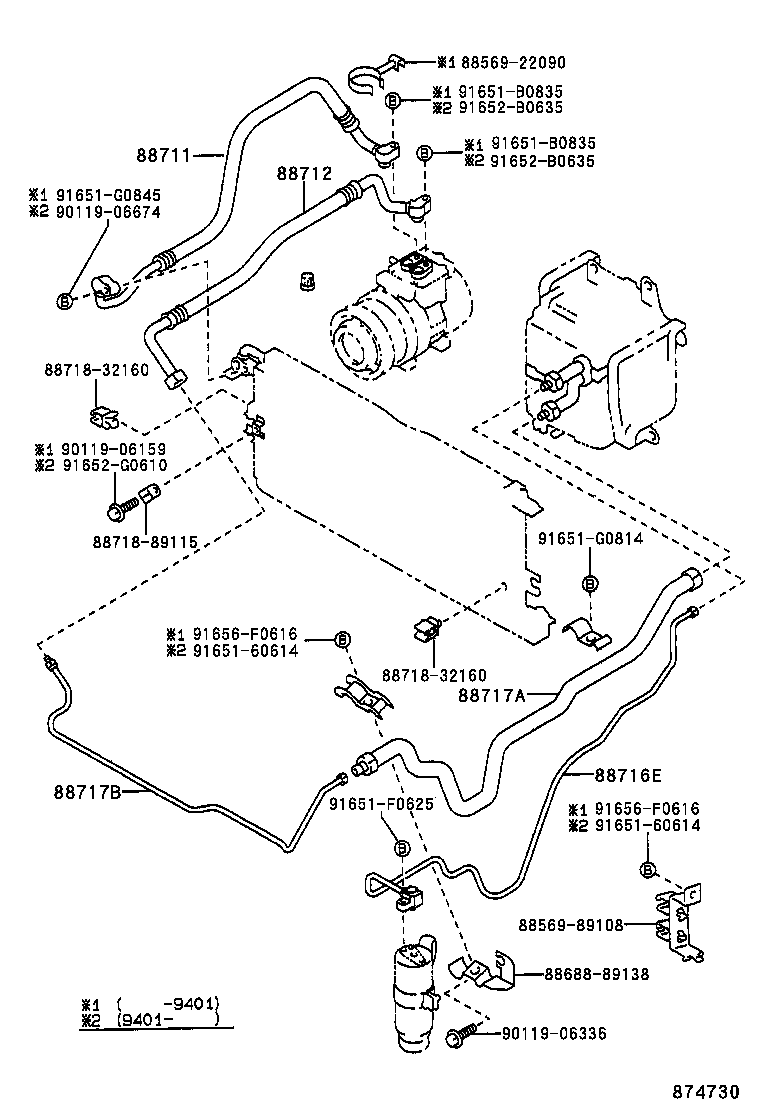

HOSE & PIPE

diagram 8856922090 8856989108 8868889138 88711 88712 88716E 88717A 88717B 8871832160 8871832160 8871889115 9011906159 9011906336 9011906674 9165160614 9165160614 91651B0835 91651B0835 91651F0625 91651G0814 91651G0845 91652B0635 91652B0635 91652G0610 91656F0616 91656F0616
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-89145

YN106

 1
88711-35090

YN106

 1
88711-35311

YN106

 1
88711-35310

YN106

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89139

YN106..RHD

 1
88712-35130

YN106..RHD

 1
88712-35330

YN106..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89159

YN106,135..RHD

 1
88716-35280

YN106..RHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-89114

YN106,135..RHD

 1
88717-35100

YN106..RHD

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-35080

YN106..RHD;RN10#,110..ARL

 1
88717-89113

YN106..RHD;RN10#,110..ARL

 1
Common parts
88569-22090
88569-89108
88688-89138
88718-32160
88718-89115
90119-06159
90119-06336
90119-06674
91651-60614
91651-B0835
91651-F0625
91651-G0814
91651-G0845
91652-B0635
91652-G0610
91656-F0616

ILLUST NO. 1 OF 2(8808- )LN10#,111,RN10#,110,YN106

Click highlighted areas on diagram

CONDENSER & RECEIVER

diagram 5353 5353 88460 88460B 88460C 8846714040 8846714040 8846795704 8846795704 88471 88472 88716A 88723B 88891B 88891B 88891C 88891D 88891E 88891F 88891F 88891G 88892C 88892C 8889589102 9009120609 9009932128 9011906336 9011920609 9011920609 9017906026 9017906032 9017906032 9017906032 9017906032 9165141020 9165141020 91651F0625 91656F0616 91656F0616 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-35130

RN105..ARL,V;LN10#,111,RN106,110,YN106

 1
88460-89115

RN105..ARL,V;LN10#,111,RN106,110,YN106

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-89120

RN105..ARL,V;LN10#,111,RN106,110,YN106

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-89121

RN105..ARL,V;LN10#,111,RN106,110,YN106

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040

RN105..ARL,V;LN10#,111,13#,RN106,110,13#,VZN130,YN106,13#

 1
88471-50010

RN105..V;LN106,111,RN106,YN106..GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89110

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-89163

RN105..ARL,V;LN10#,111,RN106,110,YN106

 1
88891B - PACKING B (FOR COOLER)
88578-89111

VZN130;LN106,111,135,RN105,135,YN106,135..GEN,V

 2
88578-89111

RN105..V;LN106,111,13#,RN106,13#,YN106..GEN,V

 2
88891B - PACKING B (FOR COOLER)
88578-89111

VZN130;LN106,111,135,RN105,135,YN106,135..GEN,V

 2
88578-89111

RN105..V;LN106,111,13#,RN106,13#,YN106..GEN,V

 2
88891C - PACKING C (FOR COOLER)
88578-89118

RN135..RHD;RN106,YN106,135;RN105,110,130,YN130..ARL,V

 1
88891D - PACKING D (FOR COOLER)
88578-89119

YN106;RN10#,13#,YN135..(DLX,SR5)..(GEN,V)

 1
88578-89119

RN10#,130..LHD;RN135,VZN130,YN106

 1
88891F - PACKING F (FOR COOLER)
88578-89122

LN106,111,RN105,110,YN106

LH

 1
88578-89123

LN106,111,RN105,110,YN106

RH

 1
88578-89122

RN105..ARL,V;LN10#,111,RN106,110,YN106

LH

 1
88578-89123

RN105..ARL,V;LN10#,111,RN106,110,YN106

RH

 1
88891F - PACKING F (FOR COOLER)
88578-89122

LN106,111,RN105,110,YN106

LH

 1
88578-89123

LN106,111,RN105,110,YN106

RH

 1
88578-89122

RN105..ARL,V;LN10#,111,RN106,110,YN106

LH

 1
88578-89123

RN105..ARL,V;LN10#,111,RN106,110,YN106

RH

 1
Common parts
88467-14040
88467-95704
88895-89102
90091-20609
90099-32128
90119-06336
90119-20609
90179-06026
90179-06032
91651-41020
91651-F0625
91656-F0616
93385-56025
Linked diagrams
5353
