YN106R-PRMRS (1988)
Toyota Hilux/4runner (4wd)
ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-89110 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53211-89123 |
LN106,111,YN106..GEN W(BODY RUST PROTECTING) |
1 | ||
| 53211-89124 |
LN106..GEN..IV3;LN106..LHD..CBU;LN111,YN106..GEN W(BODY RUST PROTECTING) |
1 | ||
| 53202-35020 |
LN106..GEN..IV3;LN106..LHD..CBU;LN111,YN106..GEN W(BODY RUST PROTECTING) |
1 | ||
| 53211-89124 |
LN106,111,YN106..GEN W(BODY RUST PROTECTING) |
1 | ||
| 53202-35020 |
LN106,111,RN105,110,YN106..ARL,GEN |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53203-35020 |
LN106,111,RN105,110,YN106..ARL,GEN |
1 | ||
| 53212-89120 |
LN106,111,YN106..GEN W(BODY RUST PROTECTING) |
1 | ||
| 53212-89121 |
LN106,111,YN106..GEN W(BODY RUST PROTECTING) |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-89108 |
LN10#,111,RN10#,110,YN106 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-89240 |
YN106..RHD |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-89270 |
YN106..RHD |
1 | ||
| 53705A - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-89103 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-89103 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53707-89102 |
LN10#,111,RN10#,110,YN106 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53708-89101 |
LN10#,111,RN10#,110,YN106 |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10107 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
10 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10107 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
10 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10107 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
10 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89122 |
LN106..LHD;RN105,YN106..ARL,GEN MARK=FF |
1 | ||
| 53736-89121 |
YN106;RN105..V;LN106..RHD MARK=CC |
1 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89122 |
LN106..LHD;RN105,YN106..ARL,GEN MARK=FF |
1 | ||
| 53736-89121 |
YN106;RN105..V;LN106..RHD MARK=CC |
1 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89122 |
LN106..LHD;RN105,YN106..ARL,GEN MARK=FF |
1 | ||
| 53736-89121 |
YN106;RN105..V;LN106..RHD MARK=CC |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-89103 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH | ||||
| 55134-89103 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89153 |
YN106..RHD NO.2 |
1 | ||
| 55210-89149 |
LN106,111,13#,RN105,110,130,YN106,13#..RHD NO.1 |
1 | ||
| 55210-89153 |
YN106..RHD NO.2 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89153 |
YN106..RHD NO.2 |
1 | ||
| 55210-89149 |
LN106,111,13#,RN105,110,130,YN106,13#..RHD NO.1 |
1 | ||
| 55210-89153 |
YN106..RHD NO.2 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89153 |
YN106..RHD NO.2 |
1 | ||
| 55210-89149 |
LN106,111,13#,RN105,110,130,YN106,13#..RHD NO.1 |
1 | ||
| 55210-89153 |
YN106..RHD NO.2 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89153 |
YN106..RHD NO.2 |
1 | ||
| 55210-89149 |
LN106,111,13#,RN105,110,130,YN106,13#..RHD NO.1 |
1 | ||
| 55210-89153 |
YN106..RHD NO.2 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-89109 |
LN10#,111,RN10#,110,YN106 |
1 | ||
| 57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH | ||||
| 57167-89101 |
LN106,111,RN105,110,YN106 |
1 | ||
| 57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH | ||||
| 57168-89101 |
LN106,111,RN105,110,YN106 |
1 | ||
| Common parts | ||||
| 11444-89103 | ||||
| 11444-89106 | ||||
| 90119-06346 | ||||
| 90119-06416 | ||||
| 90119-06445 | ||||
| 90179-06060 | ||||
| 90467-10075 | ||||
| 90467-10095 | ||||
| 90950-01826 | ||||
| 90950-01872 | ||||
| 91651-40612 | ||||
| 91651-F0610 | ||||
| 91651-G0614 | ||||

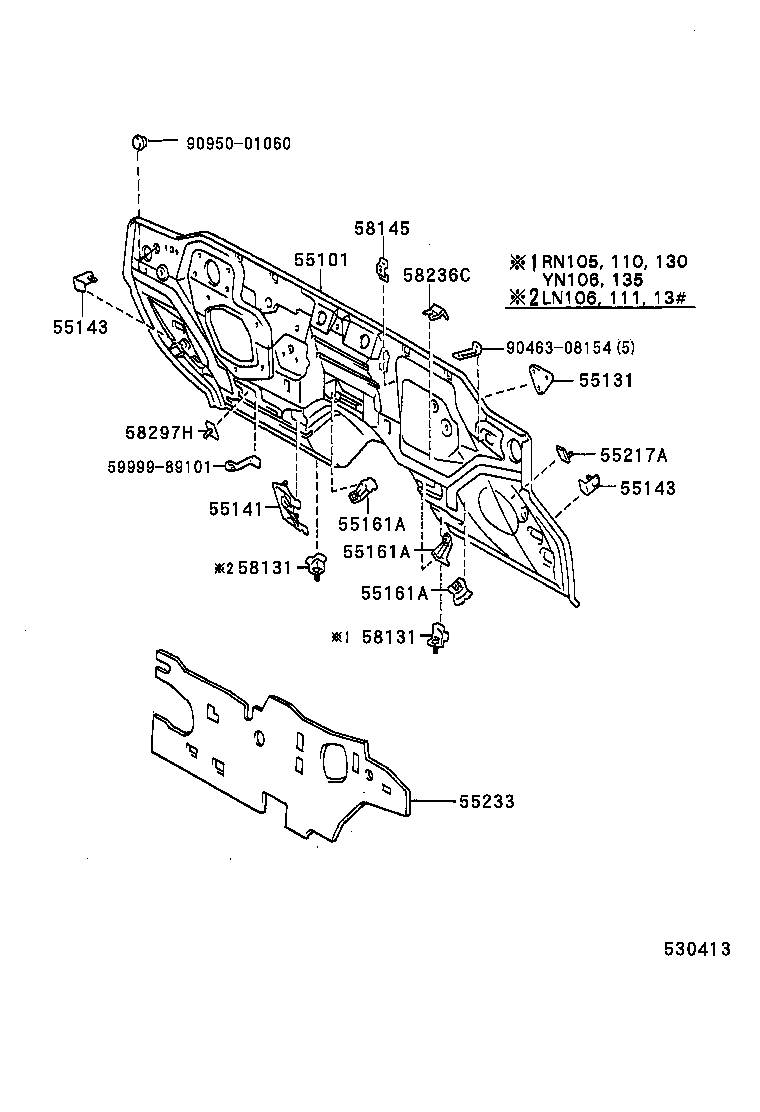

ILLUST NO. 3 OF 3(8912- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1 | ||||
| 55143-89102 |
LN130,RN105,110,13#,YN130;LN106,111,135,YN106,135..DLX,STD LH |
1 | ||
| 55143-89103 |
LN130,RN105,110,13#,YN130;LN106,111,135,YN106,135..DLX,STD RH |
1 | ||
| 55143-89103 |
RN10#,13#..LHD;LN10#,111,135,VZN130,YN106..RHD RH |
1 | ||
| 55143-89102 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# LH |
1 | ||
| 55143-89102 |
RN10#,13#..LHD;LN10#,111,135,VZN130,YN106..RHD LH |
1 | ||
| 55143-89102 |
YN106;RN105,13#..LHD..DLX;LN10#,111,135,VZN130..RHD LH |
1 | ||
| 55143-89102 |
YN106 LH |
1 | ||
| 55143-89103 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# RH |
1 | ||
| 55143-89103 |
YN106 RH |
1 | ||
| 55143-89103 |
YN106;RN105,13#..LHD..DLX;LN10#,111,135,VZN130..RHD RH |
1 | ||
| 55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1 | ||||
| 55143-89102 |
LN130,RN105,110,13#,YN130;LN106,111,135,YN106,135..DLX,STD LH |
1 | ||
| 55143-89103 |
LN130,RN105,110,13#,YN130;LN106,111,135,YN106,135..DLX,STD RH |
1 | ||
| 55143-89103 |
RN10#,13#..LHD;LN10#,111,135,VZN130,YN106..RHD RH |
1 | ||
| 55143-89102 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# LH |
1 | ||
| 55143-89102 |
RN10#,13#..LHD;LN10#,111,135,VZN130,YN106..RHD LH |
1 | ||
| 55143-89102 |
YN106;RN105,13#..LHD..DLX;LN10#,111,135,VZN130..RHD LH |
1 | ||
| 55143-89102 |
YN106 LH |
1 | ||
| 55143-89103 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# RH |
1 | ||
| 55143-89103 |
YN106 RH |
1 | ||
| 55143-89103 |
YN106;RN105,13#..LHD..DLX;LN10#,111,135,VZN130..RHD RH |
1 | ||
| 55161A - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-89109 |
LN106..RHD..(DLX,STD);LN13#,RN105,110,130,YN106,13#..RHD CTR |
1 | ||
| 55161-89106 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD LH |
1 | ||
| 55161-89108 |
LN106..RHD..(DLX,STD);LN13#,RN105,110,130,YN106,13#..RHD RH |
1 | ||
| 55161-89106 |
LN106..RHD..(DLX,STD);LN13#,RN105,110,130,YN106,13#..RHD LH |
1 | ||
| 55161A - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-89109 |
LN106..RHD..(DLX,STD);LN13#,RN105,110,130,YN106,13#..RHD CTR |
1 | ||
| 55161-89106 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD LH |
1 | ||
| 55161-89108 |
LN106..RHD..(DLX,STD);LN13#,RN105,110,130,YN106,13#..RHD RH |
1 | ||
| 55161-89106 |
LN106..RHD..(DLX,STD);LN13#,RN105,110,130,YN106,13#..RHD LH |
1 | ||
| 55161A - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-89109 |
LN106..RHD..(DLX,STD);LN13#,RN105,110,130,YN106,13#..RHD CTR |
1 | ||
| 55161-89106 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD LH |
1 | ||
| 55161-89108 |
LN106..RHD..(DLX,STD);LN13#,RN105,110,130,YN106,13#..RHD RH |
1 | ||
| 55161-89106 |
LN106..RHD..(DLX,STD);LN13#,RN105,110,130,YN106,13#..RHD LH |
1 | ||
| 55217A - RETAINER, DASH PANEL SILENCER | ||||
| 55217-89103 |
LN106..RHD..(DLX,STD);LN13#,RN105,110,130,YN106,13#..RHD |
4 | ||
| 55233 - SHEET, DASH PANEL INSULATOR | ||||
| 55233-89112 |
YN106..RHD |
1 | ||
| 58297H - RETAINER, FLOOR CLAMP | ||||
| 58297-89107 |
LN130,RN105,110,13#,YN130;LN106,111,135,YN106,135..DLX,STD |
1 | ||
| Common parts | ||||
| 59999-89101 | ||||
| 90463-08154 | ||||
| 90950-01060 | ||||
ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price |
|---|
