YN106L-TRMRS (1988)
Toyota Hilux/4runner (4wd)

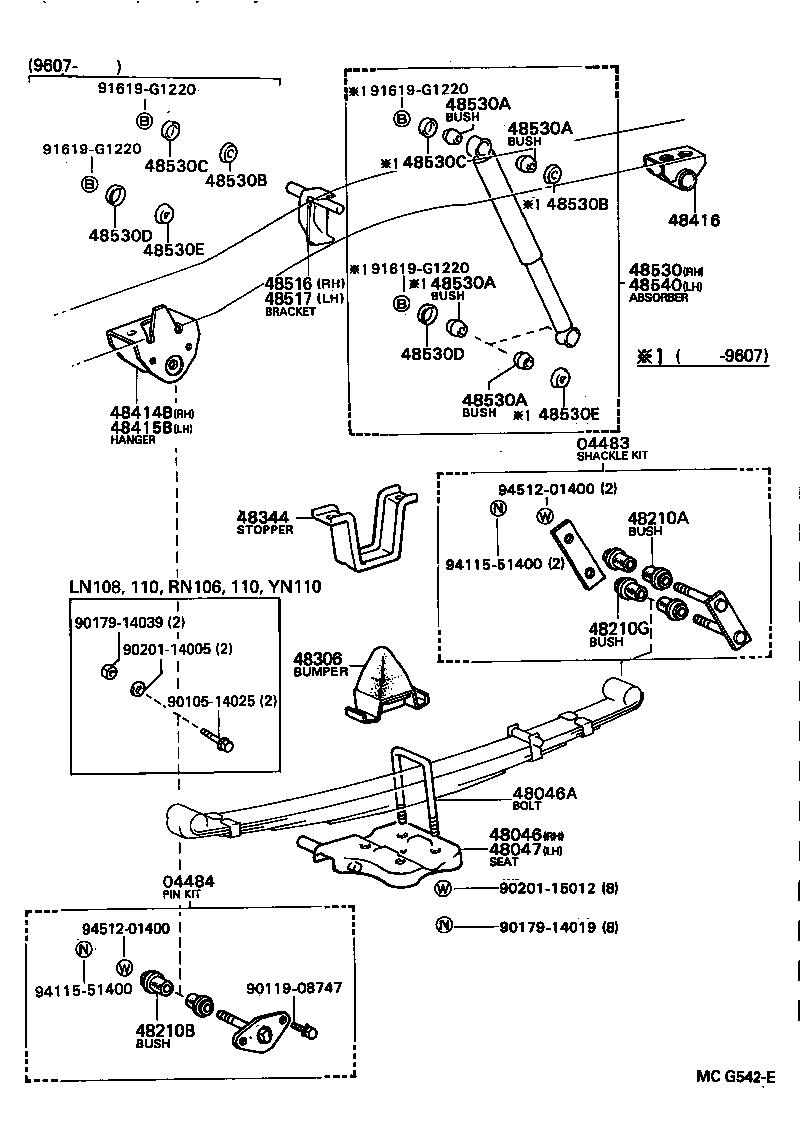

ILLUST NO. 1 OF 2(8808- )LN106,RN105,YN106
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-35040 |
LN106,RN105,YN106 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-35030 |
LN106,RN105,YN106 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-35170 |
LN10#,111,135,RN10#,110,135,YN106,135 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14044 |
LN107..T1;LN107..ARL;LN106,RN10#,YN106 L=165 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-35170 |
LN10#,111,135,RN10#,110,135,YN106,135 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LN106,RN105,YN106 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LN106,111,135,RN105,110,135,YN106 |
4 | ||
| 90385-18046 |
LN106,RN105,YN106 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LN106,111,135,RN105,110,135,YN106,135 |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-35110 |
LN10#,111,RN10#,110,YN106 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-35020 |
LN10#,111,135,RN10#,110,135,YN106,135 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-35170 |
LN106,RN105,YN106 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-35170 |
LN106,RN105,YN106 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-35061 |
LN106,RN105,YN106 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-35040 |
LN10#,111,135,RN10#,110,135,YN106,135 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-35010 |
LN10#,111,135,RN10#,110,135,YN106,135 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80109 |
RN105..ARL;LN106,YN106 |
1 | ||
| 48531-80061 |
LN106,RN105,YN106..ARL,GEN |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19004 |
LN107..T1;LN107,RN105..ARL;LN106,111,135,RN106,110,135,YN106,135 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19004 |
LN107..T1;LN107,RN105..ARL;LN106,111,135,RN106,110,135,YN106,135 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19004 |
LN107..T1;LN107,RN105..ARL;LN106,111,135,RN106,110,135,YN106,135 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19004 |
LN107..T1;LN107,RN105..ARL;LN106,111,135,RN106,110,135,YN106,135 |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03015 |
LN106,111,RN105,110,YN106 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03015 |
LN106,111,RN105,110,YN106 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
LN10#,111,135,RN10#,110,135,YN106,135 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
LN10#,111,135,RN10#,110,135,YN106,135 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03011 |
LN10#,111,135,RN10#,110,135,YN106,135 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03011 |
LN10#,111,135,RN10#,110,135,YN106,135 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03015 |
LN106,111,RN105,110,YN106 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03015 |
LN106,111,RN105,110,YN106 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-39095 |
LN106,RN105,YN106..ARL,GEN |
1 | ||
| 48541-39195 |
RN105..ARL;LN106,YN106 |
1 | ||
| Common parts | ||||
| 90105-14025 | ||||
| 90119-08747 | ||||
| 90179-14019 | ||||
| 90179-14039 | ||||
| 90201-14005 | ||||
| 90201-15012 | ||||
| 91619-G1220 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||

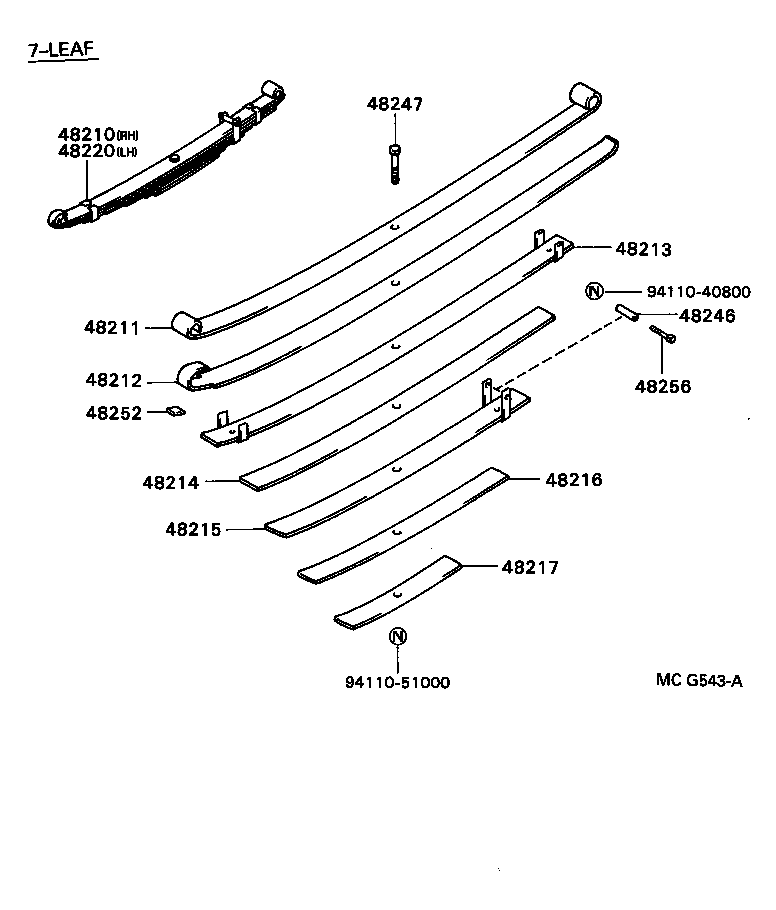

ILLUST NO. 2 OF 2(8808- )LN106,RN105,YN106
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35670 |
LN106,RN105,YN106 7-LEAF |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-35670 |
LN106,RN105,YN106 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35670 |
LN106,RN105,YN106 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35670 |
LN106,RN105,YN106 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-35670 |
LN106,RN105,YN106 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-35670 |
LN106,RN105,YN106 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-35670 |
LN106,RN105,YN106 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-35670 |
LN106,RN105,YN106 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35670 |
LN106,RN105,YN106 7-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LN106,111,135,RN105,110,135,YN106,135 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36530 |
LN106,RN105,YN106 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN10#,111,135,RN10#,110,135,YN106,135 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-36570 |
LN106,RN105,YN106 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
