YN106L-PRMRS3 (1988)

Toyota Hilux/4runner (4wd)

Production Aug 1988 - Aug 1994
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4Y..YN106

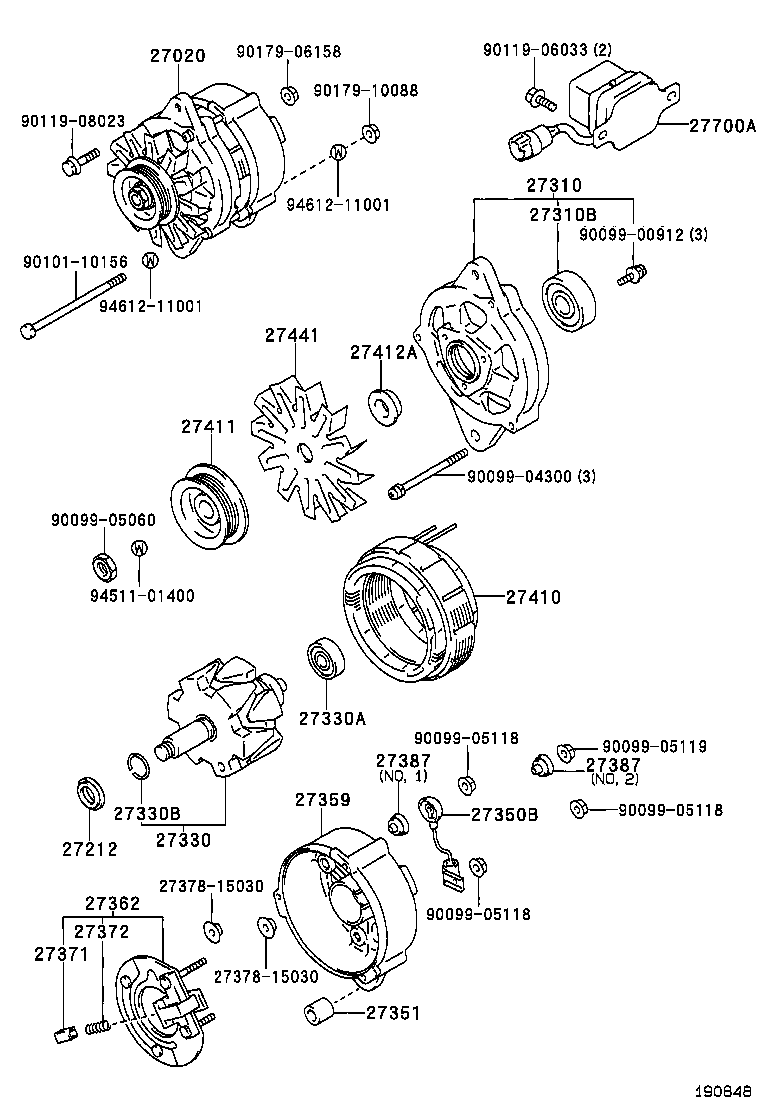

Click highlighted areas on diagram

12V 40A

diagram 27020 27212 27310 27310B 27330 27330A 27330B 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 27387 27387 27410 27411 27412A 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110156 9011906033 9011908023 9017906158 9017910088 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-72200

4Y..YN106

12V 40A

 1
27020-72230

4Y..YN106

12V 40A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050

4Y..YN106;22R..RN105..V

 1
27212-39050

22R,4Y..RN105,110,YN106

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72030

4Y..YN106

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

4Y..YN106,135

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-26050

22R,4Y..RN105,110,YN106

 1
27330-26050

4Y..YN106;22R..RN10#..LHD

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22R,4Y..RN105,110,13#,YN106,135

 1
90099-10116

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

22R,4Y..RN105,110,YN106

 1
90099-07048

4Y..YN106;22R..RN105..V

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

4Y..YN106;22R..RN105,13#..(DLX,SR5)..(GEN,V)

 1
90099-52065

22R,4Y..RN105,110,13#,YN106,135

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

22R,4Y..RN105,110,13#,YN106,135

 1
27351-38051

4Y..YN106;22R..RN105,13#..(DLX,SR5)..(GEN,V)

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72030

4Y..YN106

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011

4Y..YN106;22R..RN105..V

 1
27362-18011

22R,4Y..RN105,110,YN106

 1
27371 - BRUSH, ALTERNATOR
27371-31011

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

 2
27371-31011

22R,4Y..RN105,110,13#,YN106,135

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

 2
27372-31011

22R,4Y..RN105,110,13#,YN106,135

 2
27387 - INSULATOR, TERMINAL
27387-45022

22R,4Y..RN105,110,13#,YN106,135

 1
27387-45110

22R,4Y..RN13#,YN106,135

NO.1

 1
27387-34022

22R,4Y..RN13#,YN106

NO.2

 1
27387-45110

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

NO.1

 1
27387-34022

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

NO.2

 1
27387 - INSULATOR, TERMINAL
27387-45022

22R,4Y..RN105,110,13#,YN106,135

 1
27387-45110

22R,4Y..RN13#,YN106,135

NO.1

 1
27387-34022

22R,4Y..RN13#,YN106

NO.2

 1
27387-45110

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

NO.1

 1
27387-34022

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

NO.2

 1
27410 - STATOR ASSY, ALTERNATOR
27410-38120

22R,4Y..RN105,110,YN106

 1
27410-38120

4Y..YN106;22R..RN105..V

 1
27411 - PULLEY, ALTERNATOR
27411-72040

4Y..YN106,135

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-16030

4Y..YN106

 1
27441 - FAN, ALTERNATOR
27441-34030

22R,4Y..RN105,110,13#,YN106

 1
27441-34030

4Y..YN106;22R..RN105,13#..(DLX,SR5)..(GEN,V)

 1
27700A - REGULATOR ASSY, GENERATOR
27700-72030

22R..RN105..V;22R,3L,4Y..LN106,111,13#,RN106,13#,YN106..GEN,V

 1
27700-63010

22R..RN105..V;22R,3L,4Y..LN106,111,13#,RN106,13#,YN106..GEN,V

 1
27700-72030

22R,3L,4Y..LN106,111,135,RN105,110,13#,YN106,135

 1
27700-72030

22R,3L,4Y..LN106,111,13#,RN105,110,13#,YN106,135

 1
Common parts
27378-15030
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10156
90119-06033
90119-08023
90179-06158
90179-10088
94511-01400
94612-11001

(9108- )22R..RN130..ARL ; (9108- )22R..RN10#,110..ARL,GEN ; (9401- )22RE ;

Click highlighted areas on diagram

12V 60A,70A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 27387 2738963020 27411 27412A 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905172 9009905172 9009905172 9009905172 9009905229 9010110083 9011908654 9017010015 9017906158 9020110005 9020110005 9331914025 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-72200

4Y..YN106

12V 40A

 1
27020-72230

4Y..YN106

12V 40A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72030

4Y..YN106

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

4Y..YN106,135

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-26050

22R,4Y..RN105,110,YN106

 1
27330-26050

4Y..YN106;22R..RN10#..LHD

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22R,4Y..RN105,110,13#,YN106,135

 1
90099-10116

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72030

4Y..YN106

 1
27371 - BRUSH, ALTERNATOR
27371-31011

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

 2
27371-31011

22R,4Y..RN105,110,13#,YN106,135

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

 2
27372-31011

22R,4Y..RN105,110,13#,YN106,135

 2
27387 - INSULATOR, TERMINAL
27387-45022

22R,4Y..RN105,110,13#,YN106,135

 1
27387-45110

22R,4Y..RN13#,YN106,135

NO.1

 1
27387-34022

22R,4Y..RN13#,YN106

NO.2

 1
27387-45110

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

NO.1

 1
27387-34022

4Y..YN106;22R..RN10#,13#..(DLX,SR5)..(GEN,V)

NO.2

 1
27411 - PULLEY, ALTERNATOR
27411-72040

4Y..YN106,135

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-16030

4Y..YN106

 1
27700A - REGULATOR ASSY, GENERATOR
27700-72030

22R..RN105..V;22R,3L,4Y..LN106,111,13#,RN106,13#,YN106..GEN,V

 1
27700-63010

22R..RN105..V;22R,3L,4Y..LN106,111,13#,RN106,13#,YN106..GEN,V

 1
27700-72030

22R,3L,4Y..LN106,111,135,RN105,110,13#,YN106,135

 1
27700-72030

22R,3L,4Y..LN106,111,13#,RN105,110,13#,YN106,135

 1
Common parts
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05172
90099-05229
90101-10083
90119-08654
90170-10015
90179-06158
90201-10005
93319-14025
94512-01000
