VZN130R-GKPSEQ (1990)
Toyota Hilux/4runner (4wd)

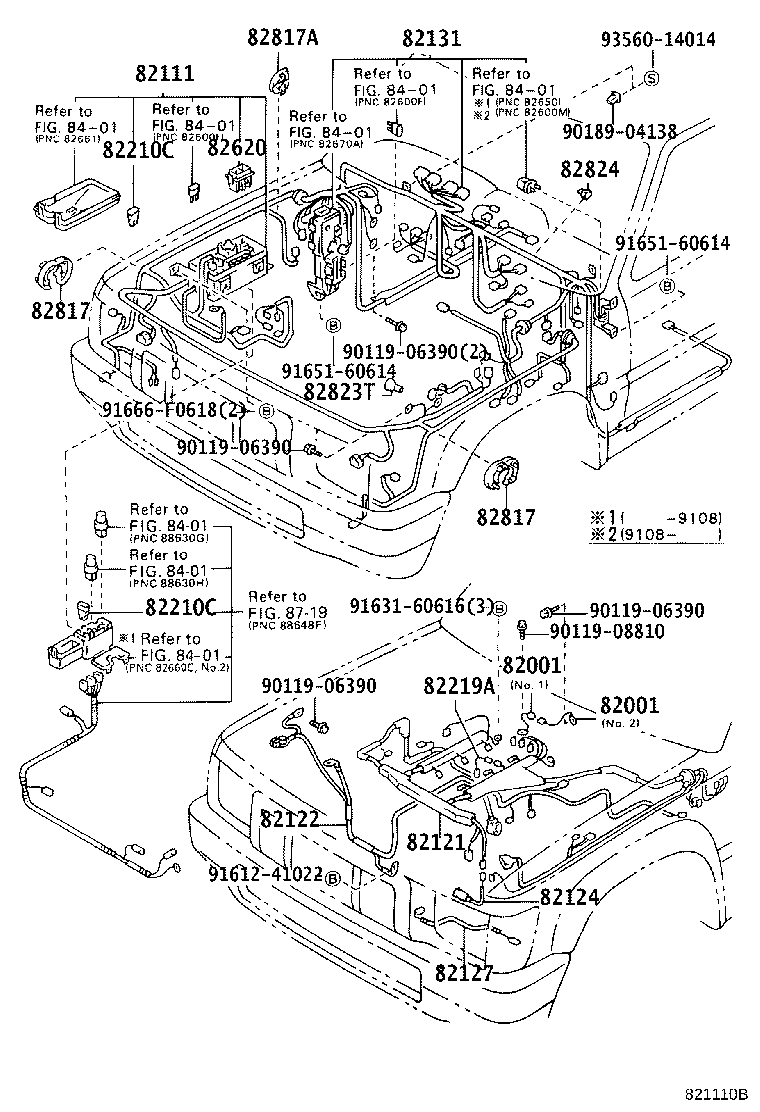

ILLUST NO. 1 OF 4(9008- )VZN130
ENGINE ROOM & INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07340 |
VZN130 NO.1 |
1 | ||
| 90980-07300 |
VZN130 NO.1 |
1 | ||
| 90980-07301 |
VZN130 NO.2 |
1 | ||
| 90980-07225 |
YN106,13# |
1 | ||
| 90980-07108 |
RN10#,110,13# |
1 | ||
| 90980-07301 |
VZN130 NO.2 |
1 | ||
| 90980-07370 |
VZN130 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07340 |
VZN130 NO.1 |
1 | ||
| 90980-07300 |
VZN130 NO.1 |
1 | ||
| 90980-07301 |
VZN130 NO.2 |
1 | ||
| 90980-07225 |
YN106,13# |
1 | ||
| 90980-07108 |
RN10#,110,13# |
1 | ||
| 90980-07301 |
VZN130 NO.2 |
1 | ||
| 90980-07370 |
VZN130 NO.2 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-89243 |
VZN130 |
1 | ||
| 82111-89244 |
VZN130 W(CRUISE CONTROL) |
1 | ||
| 82111-89276 |
LN106,111,130..ARL |
1 | ||
| 82111-35490 |
VZN130 W(CRUISE CONTROL) |
1 | ||
| 82111-35480 |
VZN130 |
1 | ||
| 82111-35491 |
VZN130 W(CRUISE CONTROL) |
1 | ||
| 82111-35481 |
VZN130 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-89306 |
RN105,130..ARL |
1 | ||
| 82121-35300 |
VZN130..4FC |
1 | ||
| 82121-35360 |
RN105,13#..RHD |
1 | ||
| 82121-89300 |
VZN130..4FC |
1 | ||
| 82121-89313 |
LN106,13#;LN111..GEN |
1 | ||
| 82121-35301 |
VZN130..4FC |
1 | ||
| 82121-35362 |
RN105,13#..RHD |
1 | ||
| 82121-35302 |
VZN130..4FC |
1 | ||
| 82121-35361 |
RN105,13#..RHD |
1 | ||
| 82121-35511 |
LN106,13#;LN111..IV3;LN111..GEN..CBU |
1 | ||
| 82121-35303 |
VZN130..4FC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-89110 |
RN110,13# |
1 | ||
| 82122-89149 |
VZN130 |
1 | ||
| 82122-89132 |
RN106,110,13# |
1 | ||
| 82122-35330 |
VZN130 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-89114 |
VZN130 |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-89102 |
VZN130..4FC SR LIMITED |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-89C13 |
VZN130..4FC |
1 | ||
| 82131-89C14 |
VZN130..4FC SR LIMITED |
1 | ||
| 82131-3G320 |
VZN130..4FC |
1 | ||
| 82131-3G330 |
VZN130..4FC SR LIMITED |
1 | ||
| 82131-3G331 |
VZN130..4FC SR LIMITED |
1 | ||
| 82131-3G321 |
VZN130..4FC |
1 | ||
| 82131-3G322 |
VZN130..4FC |
1 | ||
| 82131-3G332 |
VZN130..4FC SR LIMITED PACKAGE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
RN105,110,13#,YN106,135 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08246 |
VZN130 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08216 |
RN13#;RN106..EFI;LN10#,111,130,RN10#,110,VZN130..ARL 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08202 |
LN106,111,13# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08190 |
RN10#,13#,YN106..GEN,V 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08188 |
RN106..EFI;RN13#,YN135;LN10#,111,130,RN10#,110,VZN130,YN130..ARL 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08189 |
RN106..EFI;LN10#,111,130,RN10#,110,130,VZN130..ARL 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08190 |
YN106;RN10#,13#..(DLX,SR5)..(GEN,V) 60A,TERM.:FEMALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
RN105,110,13#,YN106,135 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08246 |
VZN130 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08216 |
RN13#;RN106..EFI;LN10#,111,130,RN10#,110,VZN130..ARL 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08202 |
LN106,111,13# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08190 |
RN10#,13#,YN106..GEN,V 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08188 |
RN106..EFI;RN13#,YN135;LN10#,111,130,RN10#,110,VZN130,YN130..ARL 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08189 |
RN106..EFI;LN10#,111,130,RN10#,110,130,VZN130..ARL 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08190 |
YN106;RN10#,13#..(DLX,SR5)..(GEN,V) 60A,TERM.:FEMALE,YEL |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-35010 |
VZN130 |
1 | ||
| 82219-89103 |
VZN130 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-89101 |
LN106,111,130,YN130..ARL |
1 | ||
| 82620-35020 |
RN106..EFI;RN10#,130..ARL;LN10#,111,13#,RN110,VZN130 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-89123 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-89123 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-89130 |
LN111..GEN;LN106,13#,RN105,110,13#,VZN130,YN106,135 |
1 | ||
| 82817-89130 |
LN106,111,13#,RN105,110,13#,YN106,13# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
VZN130..4D |
1 | ||
| 82824-32030 |
VZN130;LN13#,RN13#..LHD |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08810 | ||||
| 90189-04138 | ||||
| 91612-41022 | ||||
| 91631-60616 | ||||
| 91651-60614 | ||||
| 91666-F0618 | ||||
| 93560-14014 | ||||
