VZN130R-GKPSEQ (1990)

Toyota Hilux/4runner (4wd)

Production Aug 1990 - Nov 1995
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )KZN205,LN13#,205,RN13#,VZN130

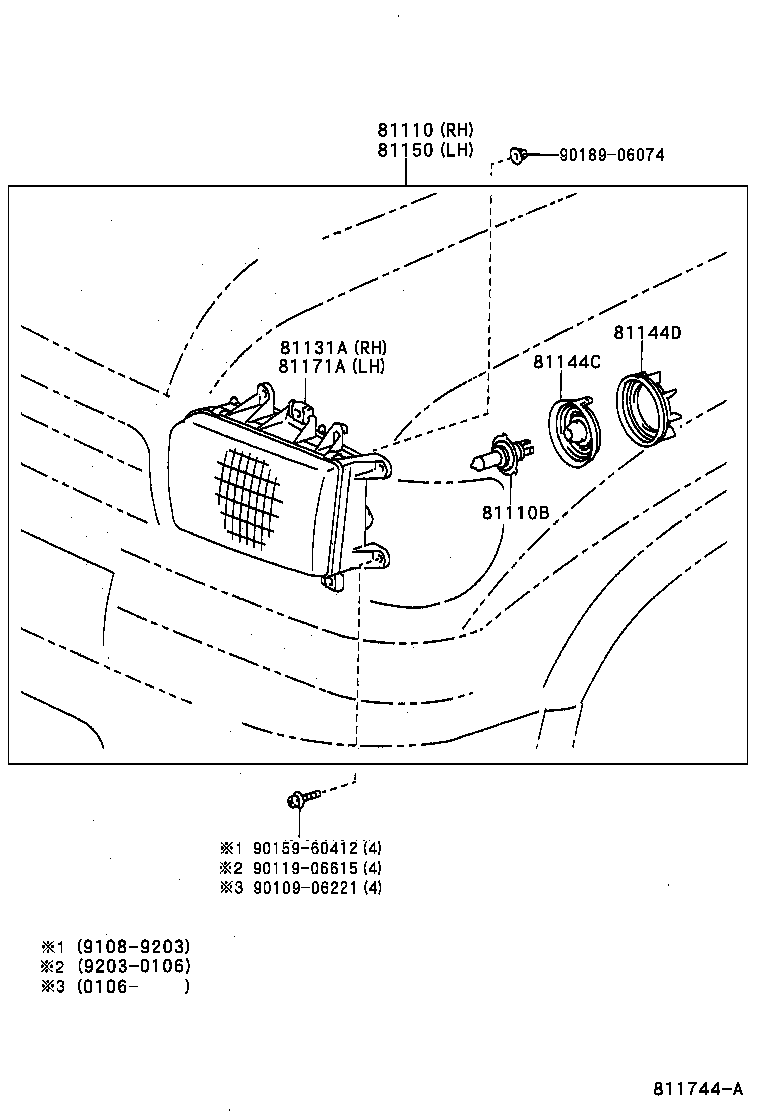

Click highlighted areas on diagram

diagram 81110 81110B 81131A 81144C 81144D 81150 81171A 9010906221 9011906615 9015960412 9018906074
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-35140

LN130,RN130,VZN130..ARL

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

LN130,RN13#,VZN130;LN106,111,135,RN10#,YN106..GEN

12V 60/55W,*HAL *WH

 2
81131A - UNIT, HEADLAMP, RH
81130-35140

LN130,RN130,VZN130..ARL

 1
81144C - COVER, HEADLAMP SOCKET
90075-99075

LN13#,RN13#,VZN130

 2
81144D - CAP, HEADLAMP LOCKING
90075-99074

LN13#,RN13#,VZN130

 2
81150 - HEADLAMP ASSY, LH
81150-35140

LN130,RN130,VZN130..ARL

 1
81171A - UNIT, HEADLAMP, LH
81170-35140

LN130,RN130,VZN130..ARL

 1
Common parts
90109-06221
90119-06615
90159-60412
90189-06074

(8808-9108) ; (9108- )LN10#,111,RN10#,110,YN106

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81110S 81110S 81110S 81111A 81113 81121 81126 8113612571 81150 81151A 81153 81195
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-35140

LN130,RN130,VZN130..ARL

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

LN130,RN13#,VZN130;LN106,111,135,RN10#,YN106..GEN

12V 60/55W,*HAL *WH

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

LN130,RN13#,VZN130;LN106,111,135,RN10#,YN106..GEN

12V 60/55W,*HAL *WH

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-89149

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

 1
81121 - SPRING, HEADLAMP TENSION
81121-14670

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

 2
81126 - PLATE, HEADLAMP
81124-89101

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

 8
81150 - HEADLAMP ASSY, LH
81150-35140

LN130,RN130,VZN130..ARL

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-89149

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

 1
Common parts
81136-12571
