VZN130R-GKMSEQ (1990)

Toyota Hilux/4runner (4wd)

Production Aug 1990 - Nov 1995
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )

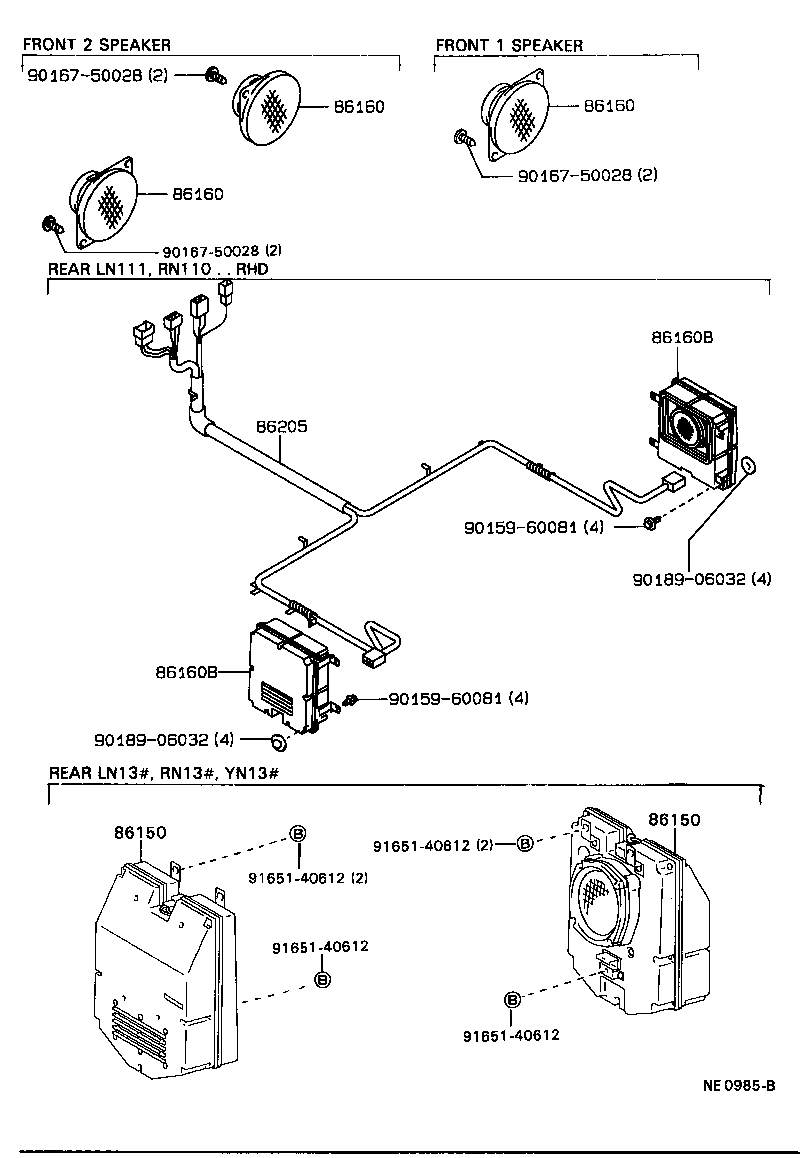

Click highlighted areas on diagram

diagram 86160 86160 86160 86160B 9016750028 9016750028 9016750028 9016750028 9018905097 9165640616 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

W(2 SPEAKER)

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

W(2 SPEAKER)

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

W(2 SPEAKER)

 2
86160B - SPEAKER ASSY, REAR
86150-35040

VZN130;LN13#,RN13#..GEN,V

 2
Common parts
90167-50028
90189-05097
91656-40616
93567-55016

(8808-9108)

Click highlighted areas on diagram

diagram 86150 86150 86160 86160 86160 86160B 86160B 86205 9015960081 9015960081 9016750028 9016750028 9016750028 9018906032 9018906032 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-89107

VZN130;LN135,RN135,YN135..LHD

 2
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-89107

VZN130;LN135,RN135,YN135..LHD

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

W(2 SPEAKER)

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

W(2 SPEAKER)

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

W(2 SPEAKER)

 2
86160B - SPEAKER ASSY, REAR
86150-35040

VZN130;LN13#,RN13#..GEN,V

 2
86160B - SPEAKER ASSY, REAR
86150-35040

VZN130;LN13#,RN13#..GEN,V

 2
Common parts
90159-60081
90167-50028
90189-06032
91651-40612
