VZN130R-GJMSEQ (1990)

Toyota Hilux/4runner (4wd)

Production Aug 1990 - Aug 1991
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

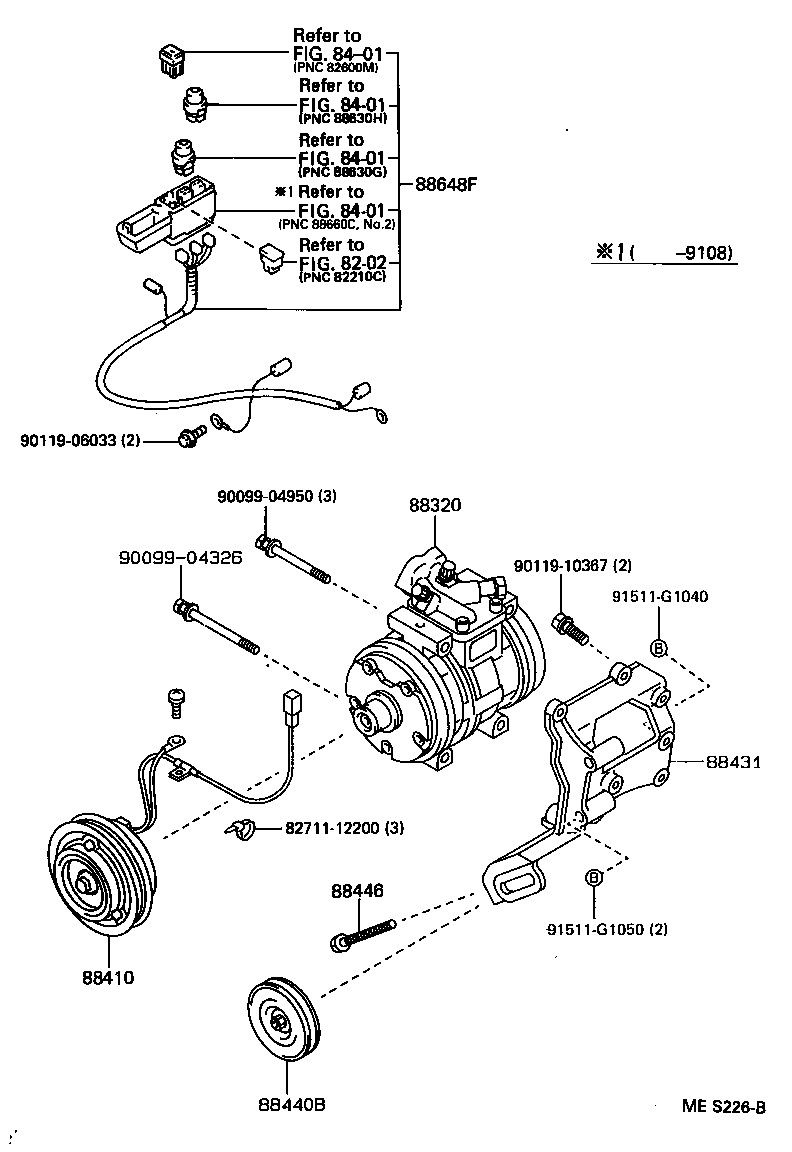

ILLUST NO. 1 OF 3(9008- )VZN130

Click highlighted areas on diagram

diagram 8202 8271112200 8401 8401 8401 8401 88320 88410 88431 88440B 88446 88648F 9009904326 9009904950 9011906033 9011910367 91511G1040 91511G1050
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-35410

VZN130

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35170

LN106,111,13#

 1
88431-35160

YN106,13#

 1
88431-35150

RN106,13#;RN105,110..ARL,V

 1
88440B - PULLEY ASSY, IDLE
88440-26070

LN111,13#;LN106..ARL;LN106..LHD

NO.1

 1
88440-35030

LN106,111,130..ARL

NO.2

 1
88440-35030

RN105,110,13#

 1
88440-35040

VZN130,YN106,13#

 1
88440-35030

LN106,111,RN105,110,13#..ARL,V

 1
88446 - BOLT, IDLE PULLEY
88446-35040

YN106,135;LN106,111,130..ARL

 1
88446-35030

RN135;RN105,110,130,VZN130,YN130..ARL

 1
Common parts
82711-12200
90099-04326
90099-04950
90119-06033
90119-10367
91511-G1040
91511-G1050
Linked diagrams
8202
8401
