RN135L-GKMSSV (1989)
Toyota Hilux/4runner (4wd)
ILLUST NO. 1 OF 2(9308-9511)LN13#,RN13#
BLOWER ASSY,CONDENSER & RECEIVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 88635-35010 |
LN13#,RN13#,VZN130 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-28010 |
LN13#,RN13#,VZN130 |
1 | ||
| 88453-12030 |
LN13#,RN13#..GEN,V |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89117 |
LN13#,RN13#..GEN,V |
1 | ||
| 88460-35080 |
LN13#,RN13#..GEN,V |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
RN105..ARL,V;LN10#,111,13#,RN106,110,13#,VZN130,YN106,13# |
1 | ||
| 88471-34010 |
LN13#,RN13#,VZN130 |
1 | ||
| 88471-16040 |
LN13#,RN13#;LN10#,111,RN10#,110,VZN130..ARL |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
1 | ||
| 88472-35010 |
LN13#,RN13#,VZN130 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-89101 |
LN13#,RN13#,VZN130 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-89102 |
LN13#,RN13#..GEN,V |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35100 |
VZN130;LN13#,RN13#..GEN,V |
1 | ||
| 88716-35110 |
LN13#,RN13#,VZN130 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
LN13#,RN13#;LN10#,111,RN10#,110,VZN130..ARL |
1 | ||
| 88723-17030 |
RN135..V |
1 | ||
| 88723-20040 |
LN13#,RN13#,VZN130 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
VZN130;LN106,111,135,RN105,135,YN106,135..GEN,V |
2 | ||
| 88578-89111 |
RN105..V;LN106,111,13#,RN106,13#,YN106..GEN,V |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
VZN130;LN106,111,135,RN105,135,YN106,135..GEN,V |
2 | ||
| 88578-89111 |
RN105..V;LN106,111,13#,RN106,13#,YN106..GEN,V |
2 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89118 |
RN135..RHD;RN106,YN106,135;RN105,110,130,YN130..ARL,V |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-89119 |
YN106;RN10#,13#,YN135..(DLX,SR5)..(GEN,V) |
1 | ||
| 88578-89119 |
RN10#,130..LHD;RN135,VZN130,YN106 |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89112 |
LN111,135;LN106,130,RN110,13#,VZN130,YN130..ARL,V |
1 | ||
| 88578-89112 |
LN111;LN106,RN110,135..ARL,V |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
VZN130..5F;RN13#..GEN,V |
2 | ||
| 88578-89128 |
RN13#,VZN130..5F |
2 | ||
| 88578-89128 |
RN13#..GEN,V |
2 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89128 |
VZN130..5F;RN13#..GEN,V |
2 | ||
| 88578-89128 |
RN13#,VZN130..5F |
2 | ||
| 88578-89128 |
RN13#..GEN,V |
2 | ||
| Common parts | ||||
| 88467-89102 | ||||
| 88467-95701 | ||||
| 88688-35050 | ||||
| 88688-35130 | ||||
| 88688-89131 | ||||
| 88688-89135 | ||||
| 89467-14070 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06674 | ||||
| 90179-06032 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 5353 | ||||

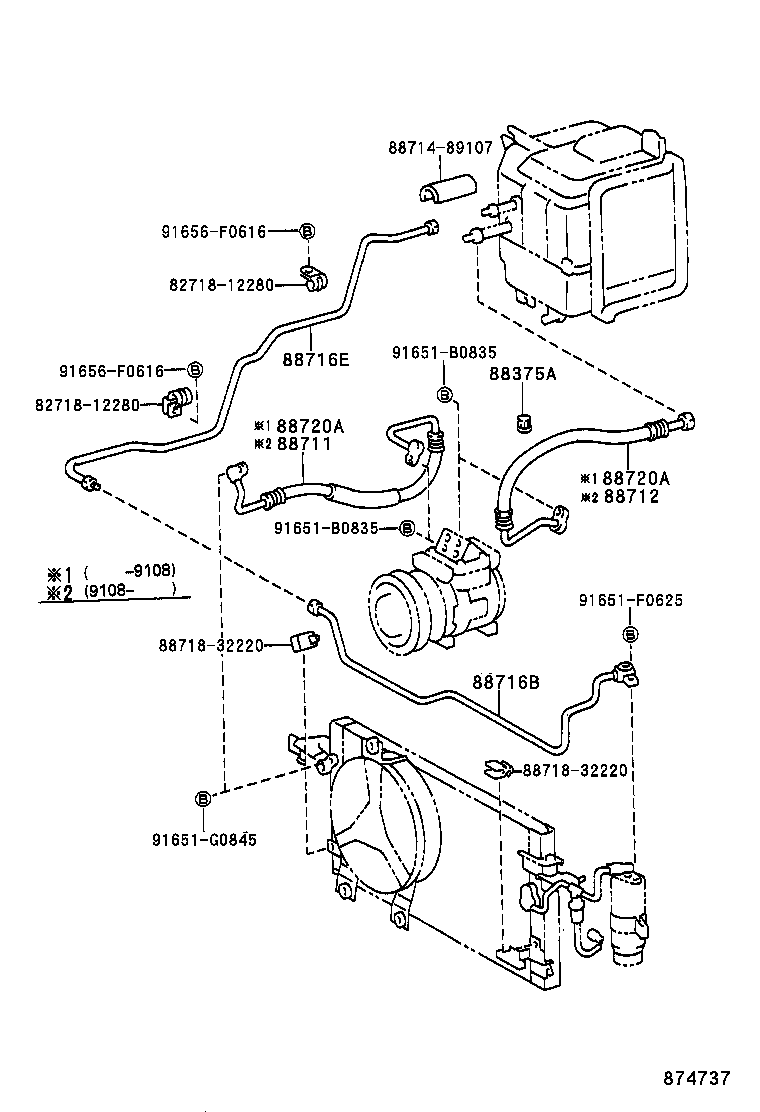

ILLUST NO. 2 OF 2(8907-9511)RN13#..LHD
HOSE & PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
RN10#,13#..LHD;LN10#,111,13#,VZN130 |
1 | ||
| 88375-30280 |
RN13#..LHD;LN13#,VZN130 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88720-35030 |
RN13#..LHD |
1 | ||
| 88711-35230 |
RN13#..LHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89140 |
YN106,135..LHD |
1 | ||
| 88712-35050 |
RN10#,13#..LHD |
1 | ||
| 88720-35230 |
RN13#..LHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-35190 |
LN13#,RN13#..LHD |
1 | ||
| 88716-35061 |
LN13#,RN13#..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89173 |
RN105,135..V |
1 | ||
| 88716-35041 |
RN13#..LHD |
1 | ||
| 88716-89181 |
RN105,135..V |
1 | ||
| 88716-89160 |
LN106,111,135,YN106,135..LHD |
1 | ||
| 88716-35120 |
RN13#..LHD |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-35090 |
RN13#..LHD |
1 | ||
| 88720-89130 |
RN135 DISCHARGE |
1 | ||
| 88720-89122 |
RN105,135..V SUCTION |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-35090 |
RN13#..LHD |
1 | ||
| 88720-89130 |
RN135 DISCHARGE |
1 | ||
| 88720-89122 |
RN105,135..V SUCTION |
1 | ||
| Common parts | ||||
| 82718-12280 | ||||
| 88714-89107 | ||||
| 88718-32220 | ||||
| 91651-B0835 | ||||
| 91651-F0625 | ||||
| 91651-G0845 | ||||
| 91656-F0616 | ||||
