RN135L-GKMSSV (1989)

Toyota Hilux/4runner (4wd)

Production Jul 1989 - Nov 1995
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

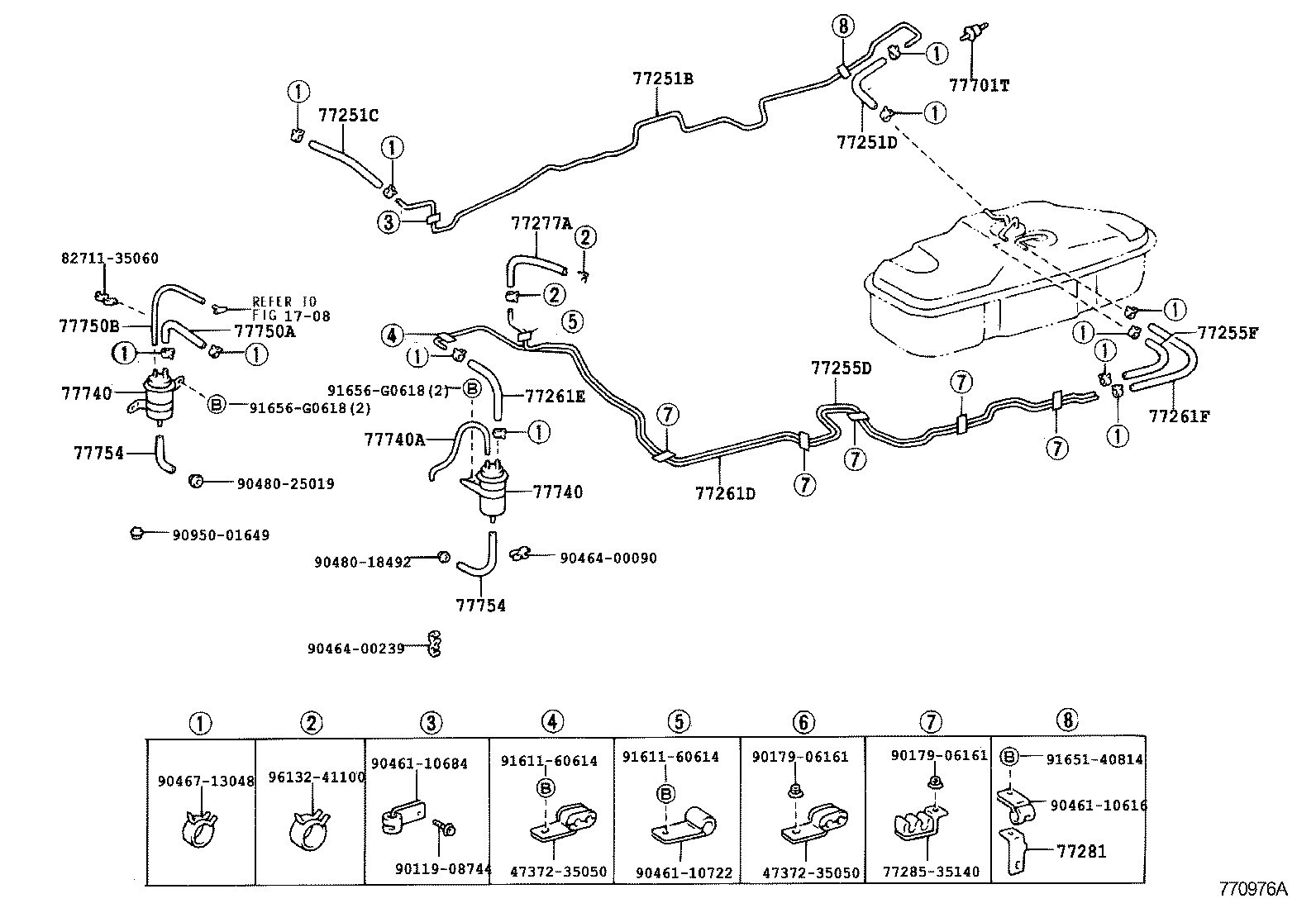

ILLUST NO. 2 OF 2(8908- )RN135

Click highlighted areas on diagram

diagram 1708 4737235050 4737235050 77251B 77251C 77251D 77255D 77255F 77261D 77261E 77261F 77277A 77281 7728535140 77701T 77740 77740 77740A 77750A 77750B 77754 77754 8271135060 9011908744 9017906161 9017906161 9046110616 9046110684 9046110722 9046400090 9046400239 9046713048 9048018492 9048025019 9095001649 9161160614 9161160614 9165140814 91656G0618 91656G0618 9613241100
Part # Description Qty Price
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-35200

RN13#..LHD

L=420

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06020

RN13#,YN135..4D

*H,L=190

 1
95333-06020

RN13#

*H,L=190

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
90445-12231

VZN130;RN13#,YN135..4D

L=290

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-35470

RN135..V

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
90445-12233

RN135,YN130..SR5

L=285

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35170

RN105,135..V

FR

 1
77740-35170

RN135..V

FR

 1
77740-35300

RN135..V

RR

 1
77740-35300

RN135..V

REAR

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35170

RN105,135..V

FR

 1
77740-35170

RN135..V

FR

 1
77740-35300

RN135..V

RR

 1
77740-35300

RN135..V

REAR

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92003

RN105,135..V

*H,L=450,MARK=#*

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
23829-35021

RN10#,13#..LHD..CBR

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
90999-92003

RN105,135..V

*H,L=420,MARK=#*

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35190

RN135..V

FR

 1
77754-35290

RN135..V

RR

 1
77754-35190

RN135

 1
77754-35190

RN135..V

FRONT

 1
77754-35290

RN135..V

REAR

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35190

RN135..V

FR

 1
77754-35290

RN135..V

RR

 1
77754-35190

RN135

 1
77754-35190

RN135..V

FRONT

 1
77754-35290

RN135..V

REAR

 1
Common parts
47372-35050
77285-35140
82711-35060
90119-08744
90179-06161
90461-10616
90461-10684
90461-10722
90464-00090
90464-00239
90467-13048
90480-18492
90480-25019
90950-01649
91611-60614
91651-40814
91656-G0618
96132-41100
Linked diagrams
1708
