RN135L-GKMSSV (1989)

Toyota Hilux/4runner (4wd)

Production Jul 1989 - Nov 1995
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108-9308)LN13#,RN13#,VZN130

Click highlighted areas on diagram

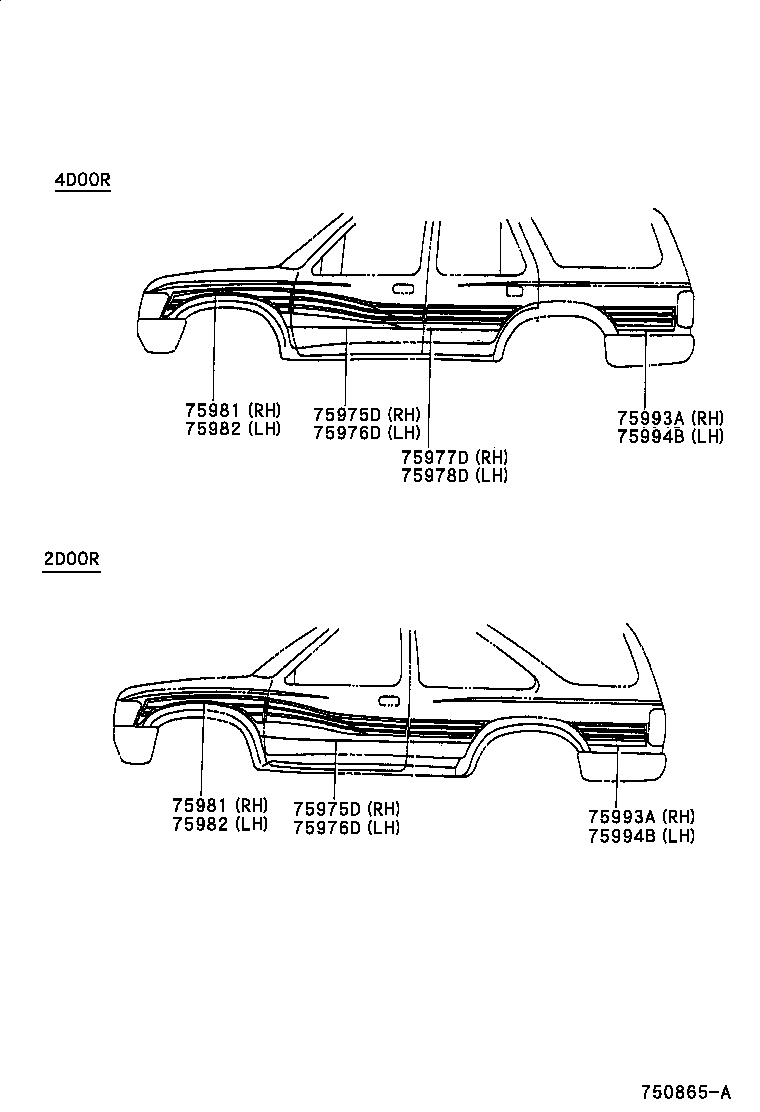

diagram 75975D 75975D 75976D 75976D 75977D 75978D 75981 75981 75982 75982 75993A 75993A 75994B 75994B
Part # Description Qty Price
75975D - STRIPE, FRONT DOOR OUTSIDE, FRONT RH
75975-8910303

LN13#,RN13#,YN13#..4D

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

 1
75975-8910303

LN13#,RN13#,VZN130,YN135..4D

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75985-35090

LN13#,RN13#,VZN130

 1
75985-35340

LN13#,RN13#,VZN130

 1
75975D - STRIPE, FRONT DOOR OUTSIDE, FRONT RH
75975-8910303

LN13#,RN13#,YN13#..4D

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

 1
75975-8910303

LN13#,RN13#,VZN130,YN135..4D

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75985-35090

LN13#,RN13#,VZN130

 1
75985-35340

LN13#,RN13#,VZN130

 1
75976D - STRIPE, FRONT DOOR OUTSIDE, FRONT LH
75976-8910302

LN13#,RN13#,VZN130,YN135..4D

RED,045 ,3H4 ,3H7 ,4J8

 1
75976-8910303

LN13#,RN13#,VZN130,YN135..4D

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75986-35090

LN13#,RN13#,VZN130

 1
75986-35330

LN13#,RN13#,VZN130

 1
75976D - STRIPE, FRONT DOOR OUTSIDE, FRONT LH
75976-8910302

LN13#,RN13#,VZN130,YN135..4D

RED,045 ,3H4 ,3H7 ,4J8

 1
75976-8910303

LN13#,RN13#,VZN130,YN135..4D

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75986-35090

LN13#,RN13#,VZN130

 1
75986-35330

LN13#,RN13#,VZN130

 1
75977D - STRIPE, REAR DOOR, RH
75977-35030

LN13#,RN13#,VZN130

 1
75977-35080

LN13#,RN13#,VZN130

 1
75977-8910502

LN13#,RN13#,VZN130,YN135..4D

RED,045 ,3H4 ,3H7 ,4J8

 1
75977-8910503

LN13#,RN13#,VZN130,YN135..4D

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75978D - STRIPE, REAR DOOR, LH
75978-8910503

LN13#,RN13#,VZN130,YN135..4D

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75978-8910502

LN13#,RN13#,VZN130,YN135..4D

RED,045 ,3H4 ,3H7 ,4J8

 1
75978-35030

LN13#,RN13#,VZN130

 1
75978-35080

LN13#,RN13#,VZN130

 1
75981 - STRIPE, FRONT FENDER, RH NO.1
75981-35030

LN13#,RN13#,VZN130

 1
75981 - STRIPE, FRONT FENDER, RH NO.1
75981-35030

LN13#,RN13#,VZN130

 1
75982 - STRIPE, FRONT FENDER, LH NO.1
75982-35030

LN13#,RN13#,VZN130

 1
75982 - STRIPE, FRONT FENDER, LH NO.1
75982-35030

LN13#,RN13#,VZN130

 1
75993A - STRIPE, QUARTER, REAR RH
75993-8910303

LN13#,RN13#,YN13#

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

 1
75993-8910303

LN13#,RN13#,VZN130,YN135

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75993-8910302

LN13#,RN13#,VZN130,YN135

RED,045 ,3H4 ,3H7 ,4J8

 1
75993-35020

LN13#,RN13#,VZN130

 1
75993-35080

LN13#,RN13#,VZN130

 1
75993A - STRIPE, QUARTER, REAR RH
75993-8910303

LN13#,RN13#,YN13#

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

 1
75993-8910303

LN13#,RN13#,VZN130,YN135

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75993-8910302

LN13#,RN13#,VZN130,YN135

RED,045 ,3H4 ,3H7 ,4J8

 1
75993-35020

LN13#,RN13#,VZN130

 1
75993-35080

LN13#,RN13#,VZN130

 1
75994B - STRIP, QUARTER, REAR LH
75994-8910503

LN13#,RN13#,YN13#

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

 1
75994-8910503

LN13#,RN13#,VZN130,YN135

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75994-8910502

LN13#,RN13#,VZN130,YN135

RED,045 ,3H4 ,3H7 ,4J8

 1
75994-35020

LN13#,RN13#,VZN130

 1
75994-35080

LN13#,RN13#,VZN130

 1
75994B - STRIP, QUARTER, REAR LH
75994-8910503

LN13#,RN13#,YN13#

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

 1
75994-8910503

LN13#,RN13#,VZN130,YN135

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75994-8910502

LN13#,RN13#,VZN130,YN135

RED,045 ,3H4 ,3H7 ,4J8

 1
75994-35020

LN13#,RN13#,VZN130

 1
75994-35080

LN13#,RN13#,VZN130

 1

(9308-9511)LN13#,RN13#,VZN130

Click highlighted areas on diagram

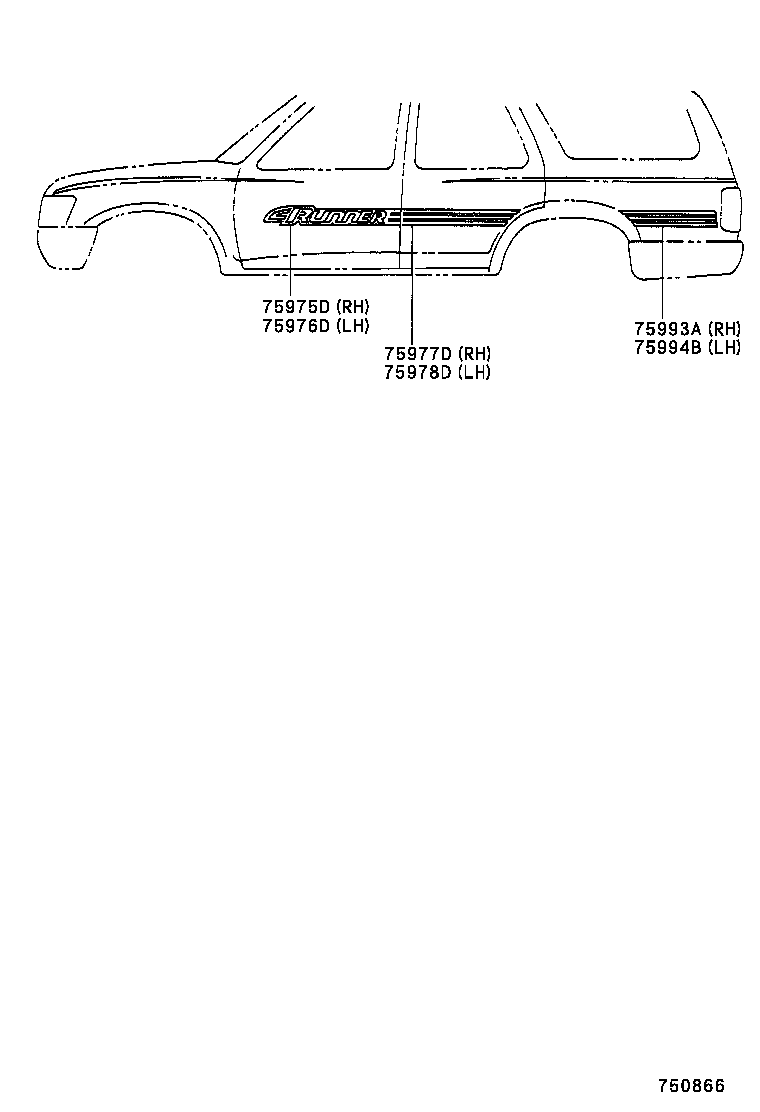

diagram 75975D 75976D 75977D 75978D 75993A 75994B
Part # Description Qty Price
75975D - STRIPE, FRONT DOOR OUTSIDE, FRONT RH
75975-8910303

LN13#,RN13#,YN13#..4D

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

 1
75975-8910303

LN13#,RN13#,VZN130,YN135..4D

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75985-35090

LN13#,RN13#,VZN130

 1
75985-35340

LN13#,RN13#,VZN130

 1
75976D - STRIPE, FRONT DOOR OUTSIDE, FRONT LH
75976-8910302

LN13#,RN13#,VZN130,YN135..4D

RED,045 ,3H4 ,3H7 ,4J8

 1
75976-8910303

LN13#,RN13#,VZN130,YN135..4D

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75986-35090

LN13#,RN13#,VZN130

 1
75986-35330

LN13#,RN13#,VZN130

 1
75977D - STRIPE, REAR DOOR, RH
75977-35030

LN13#,RN13#,VZN130

 1
75977-35080

LN13#,RN13#,VZN130

 1
75977-8910502

LN13#,RN13#,VZN130,YN135..4D

RED,045 ,3H4 ,3H7 ,4J8

 1
75977-8910503

LN13#,RN13#,VZN130,YN135..4D

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75978D - STRIPE, REAR DOOR, LH
75978-8910503

LN13#,RN13#,VZN130,YN135..4D

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75978-8910502

LN13#,RN13#,VZN130,YN135..4D

RED,045 ,3H4 ,3H7 ,4J8

 1
75978-35030

LN13#,RN13#,VZN130

 1
75978-35080

LN13#,RN13#,VZN130

 1
75993A - STRIPE, QUARTER, REAR RH
75993-8910303

LN13#,RN13#,YN13#

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

 1
75993-8910303

LN13#,RN13#,VZN130,YN135

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75993-8910302

LN13#,RN13#,VZN130,YN135

RED,045 ,3H4 ,3H7 ,4J8

 1
75993-35020

LN13#,RN13#,VZN130

 1
75993-35080

LN13#,RN13#,VZN130

 1
75994B - STRIP, QUARTER, REAR LH
75994-8910503

LN13#,RN13#,YN13#

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

 1
75994-8910503

LN13#,RN13#,VZN130,YN135

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

 1
75994-8910502

LN13#,RN13#,VZN130,YN135

RED,045 ,3H4 ,3H7 ,4J8

 1
75994-35020

LN13#,RN13#,VZN130

 1
75994-35080

LN13#,RN13#,VZN130

 1

(9108- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106

Click highlighted areas on diagram

diagram 75459
Part # Description Qty Price
