RN135L-GKMSSV (1989)

Toyota Hilux/4runner (4wd)

Production Jul 1989 - Nov 1995
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9005)22R..RN105,135 ; (9005- )22R..RN135..V

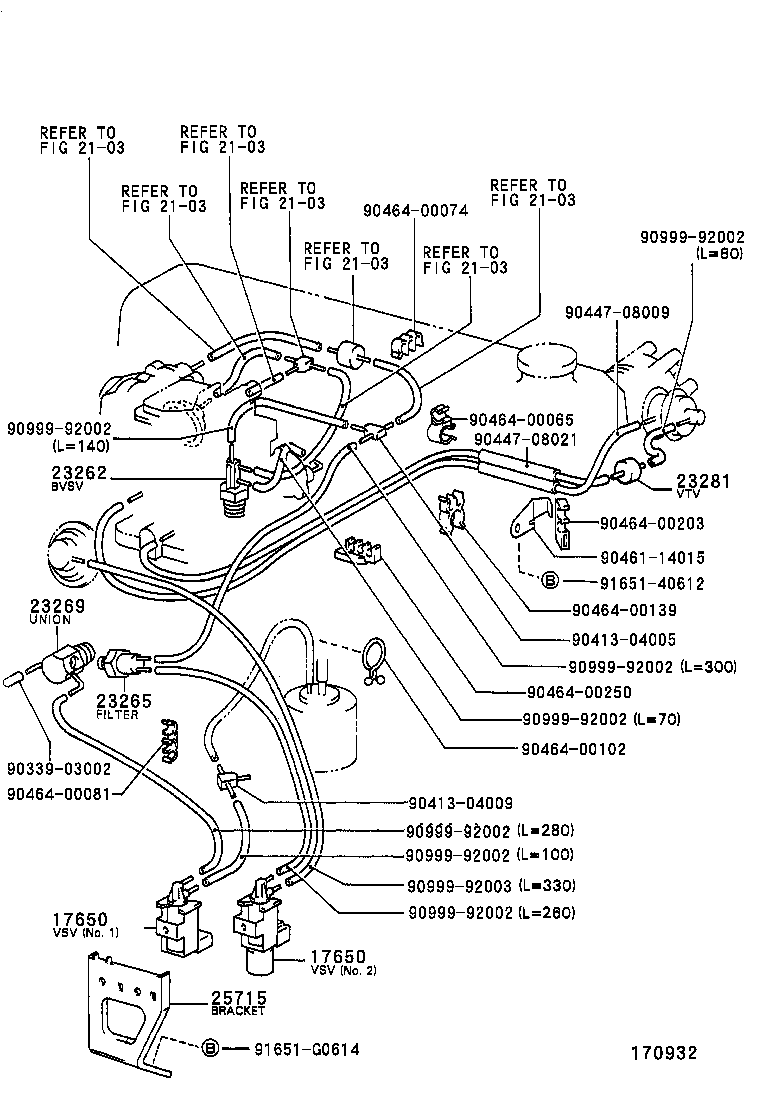

Click highlighted areas on diagram

diagram 17650 17650 2103 2103 2103 2103 2103 2103 2103 23262 23265 23269 23281 25715 9033903002 9041304005 9041304009 9044708009 9044708021 9046114015 9046400065 9046400074 9046400081 9046400102 9046400139 9046400203 9046400250 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9165140612 91651G0614
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12035

22R..RN105,135

NO.1

 1
90910-12036

22R..RN105,135

NO.2

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12035

22R..RN105,135

NO.1

 1
90910-12036

22R..RN105,135

NO.2

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

22R..RN10#,110,13#

 1
23265 - FILTER, GAS, NO.1
90917-11023

22R..RN10#,135;22R..RN130..GEN

 1
23269 - UNION(FOR GAS FILTER)
90404-54030

22R..RN10#,110,13#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01027

22R..RN110,130;22R..RN105,135..V

 1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-35050

22R..RN105,110;22R..RN106,13#..ARL,V

 1
Common parts
90339-03002
90413-04005
90413-04009
90447-08009
90447-08021
90461-14015
90464-00065
90464-00074
90464-00081
90464-00102
90464-00139
90464-00203
90464-00250
90999-92002
90999-92003
91651-40612
91651-G0614
Linked diagrams
2103
