RN130R-GKMSSQ (1989)

Toyota Hilux/4runner (4wd)

Production Aug 1989 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9005)22R ; (9005- )22R..RN10#,13#..LHD

Click highlighted areas on diagram

diagram 1144489103 1709 17700 17700A 17700F 17703C 17705 17801 17805 17848 17853 17871 17882D 17883 17883A 17883A 9011908761 9017908058 9165140814 91651F0818 9611110730
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-35380

22R..RN105,110,13#

 1
17700-35460

22R..RN105,110,130..ARL

 1
17700-35380

22R..RN105,110,130..ARL

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06013

22R..RN10#,110,13#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06021

22R..RN10#,110,13#

 1
17703C - CAP SUB-ASSY, DUST
17703-35010

22R..RN10#,110,13#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35160

22R..RN105,110,13#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-35030

22R..RN10#,110,13#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-35070

22R..RN110,130..ARL

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

22R..RN10#,110,13#

 1
17871 - STAY, AIR CONNECTOR
17871-35010

22R..RN10#,110,13#

 1
17883 - HOSE, AIR CLEANER, NO.3
17881-35070

22R..RN10#,110,13#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

22R..RN105,110,13#

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

22R..RN105,110,13#

 2
Common parts
11444-89103
90119-08761
90179-08058
91651-40814
91651-F0818
96111-10730
Linked diagrams
1709

(9005- )22R..RHD

Click highlighted areas on diagram

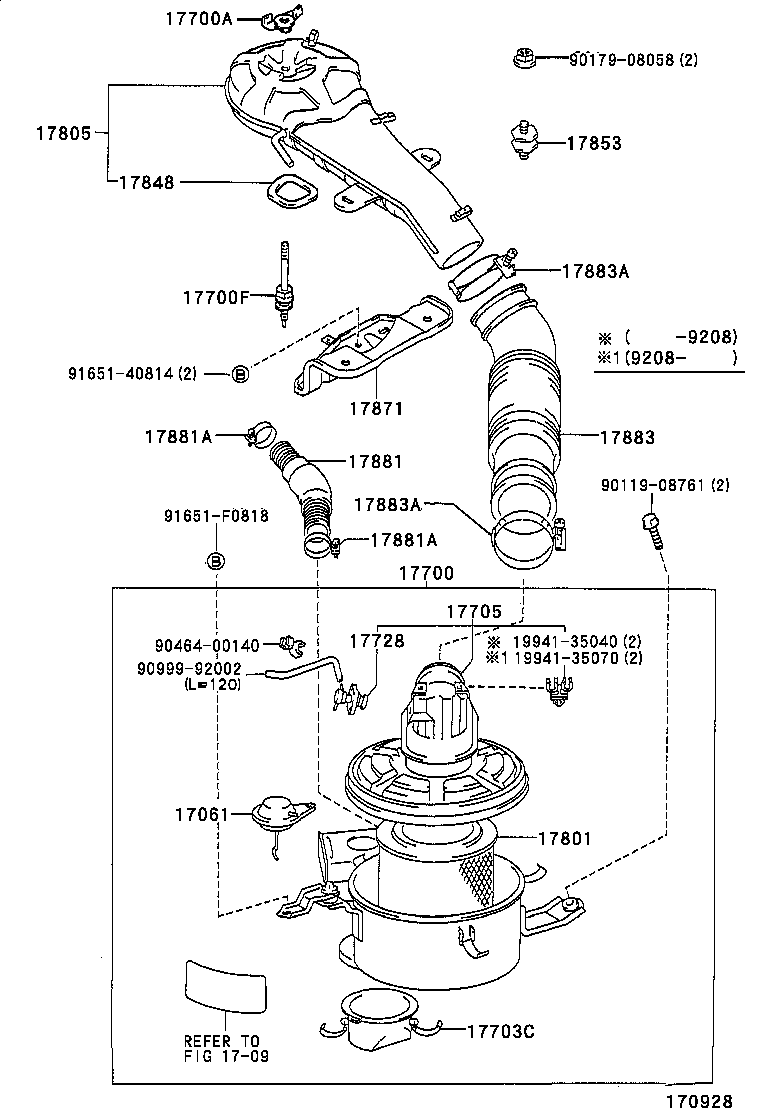

diagram 17061 1709 17700 17700A 17700F 17703C 17705 17728 17801 17805 17848 17853 17871 17881 17881A 17881A 17883 17883A 17883A 1994135040 1994135070 9011908761 9017908058 9046400140 9099992002 9165140814 91651F0818
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-35380

22R..RN105,110,13#

 1
17700-35460

22R..RN105,110,130..ARL

 1
17700-35380

22R..RN105,110,130..ARL

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06013

22R..RN10#,110,13#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06021

22R..RN10#,110,13#

 1
17703C - CAP SUB-ASSY, DUST
17703-35010

22R..RN10#,110,13#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35160

22R..RN105,110,13#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-35030

22R..RN10#,110,13#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-35070

22R..RN110,130..ARL

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

22R..RN10#,110,13#

 1
17871 - STAY, AIR CONNECTOR
17871-35010

22R..RN10#,110,13#

 1
17883 - HOSE, AIR CLEANER, NO.3
17881-35070

22R..RN10#,110,13#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

22R..RN105,110,13#

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

22R..RN105,110,13#

 2
Common parts
19941-35040
19941-35070
90119-08761
90179-08058
90464-00140
90999-92002
91651-40814
91651-F0818
Linked diagrams
1709
