RN110R-CRMSSQ (1988)
Toyota Hilux/4runner (4wd)

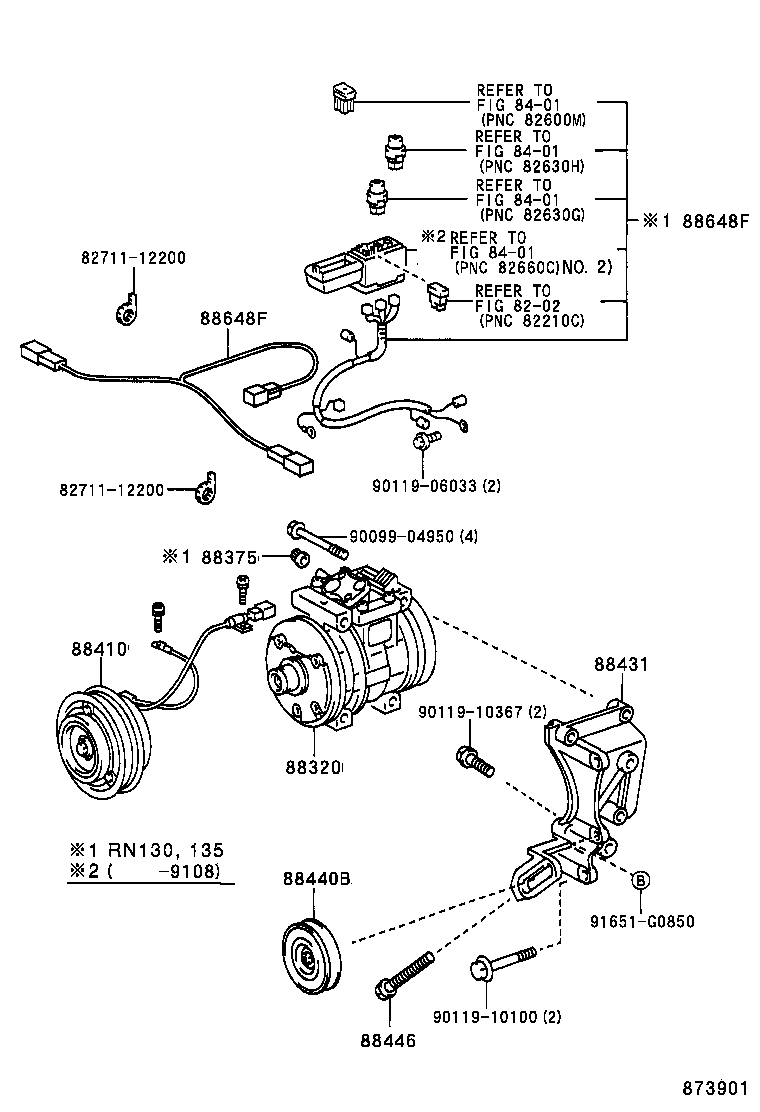

ILLUST NO. 1 OF 3(8808- )RN10#,110,13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35250 |
RN10#..ARL;LN106..RHD;LN107,111,RN110;LN106..LHD..IV3 |
1 | ||
| 88320-35250 |
RN10#..ARL;LN10#,111,RN110 |
1 | ||
| 88320-60620 |
YN106;RN10#,110..ARL |
1 | ||
| 88320-60620 |
RN10#,110..ARL |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LN10#,111,RN110;RN10#,135..ARL,V SUCTION |
1 | ||
| 88375-20010 |
LN10#,111,RN110;RN10#,135..ARL,V DISCHARGE |
1 | ||
| 88375-30270 |
LN106..RHD;LN107,111,RN110;LN106..LHD..IV3;RN10#,135..ARL,V SUCTION |
1 | ||
| 88375-20010 |
LN106..RHD;LN107,111,RN110;LN106..LHD..IV3;RN10#,135..ARL,V DISCHARGE |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-60310 |
RN106,YN106;RN105,110..ARL |
1 | ||
| 88410-35120 |
RN106,YN106;RN105,110..ARL |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35150 |
RN106,13#;RN105,110..ARL,V |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-35030 |
RN105,110,13# |
1 | ||
| 88440-35030 |
LN106,111,RN105,110,13#..ARL,V |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35030 |
RN135;RN105,110,130,VZN130,YN130..ARL |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90099-04950 | ||||
| 90119-06033 | ||||
| 90119-10100 | ||||
| 90119-10367 | ||||
| 91651-G0850 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2B080 |
RN106;RN105..ARL;LN106..RHD..GEN;LN106..LHD..IV3;LN111,YN106..GEN;LN135,RN110..RHD |
1 | ||
| 88411-2B080 |
RN106;RN105..ARL;LN106..RHD..GEN;LN106..LHD..IV3;LN111,YN106..GEN;LN13#,RN110,130..RHD |
1 | ||
| 88411-2B080 |
RN106;RN105..ARL;LN106,111,YN106..GEN;LN13#,RN110,130..RHD |
1 | ||
| 88411-22310 |
LN135..LHD;RN105,130..ARL;LN10#,111,130,RN106,110,YN106 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35250 |
RN10#..ARL;LN106..RHD;LN107,111,RN110;LN106..LHD..IV3 |
1 | ||
| 88320-35250 |
RN10#..ARL;LN10#,111,RN110 |
1 | ||
| 88320-60620 |
YN106;RN10#,110..ARL |
1 | ||
| 88320-60620 |
RN10#,110..ARL |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
LN130;LN135..LHD;LN10#,111,RN10#,110,13#,VZN130..ARL,V |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
RN106;LN135..LHD;RN105,110,VZN130..ARL,V;LN106,111,130,RN13#,YN106..GEN,V |
1 | ||
| 88403-16011 |
RN106;RN105,110..ARL,V;LN106,111,RN13#,YN106..GEN |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-60310 |
RN106,YN106;RN105,110..ARL |
1 | ||
| 88410-35120 |
RN106,YN106;RN105,110..ARL |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14021 |
RN10#..ARL,V;LN10#,111,RN110 FRONT |
1 | ||
| 88322-14020 |
RN10#..ARL,V;LN10#,111,RN110 REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14021 |
RN10#..ARL,V;LN10#,111,RN110 FRONT |
1 | ||
| 88322-14020 |
RN10#..ARL,V;LN10#,111,RN110 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14020 |
RN10#..ARL;LN10#,111,RN110 FRONT |
1 | ||
| 88341-14020 |
RN10#..ARL;LN106..RHD;LN107,111,RN110;LN106..LHD..IV3 FRONT |
1 | ||
| 88342-14020 |
RN10#..ARL;LN10#,111,RN110 REAR |
1 | ||
| 88342-14020 |
RN10#..ARL;LN106..RHD;LN107,111,RN110;LN106..LHD..IV3 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14020 |
RN10#..ARL;LN10#,111,RN110 FRONT |
1 | ||
| 88341-14020 |
RN10#..ARL;LN106..RHD;LN107,111,RN110;LN106..LHD..IV3 FRONT |
1 | ||
| 88342-14020 |
RN10#..ARL;LN10#,111,RN110 REAR |
1 | ||
| 88342-14020 |
RN10#..ARL;LN106..RHD;LN107,111,RN110;LN106..LHD..IV3 REAR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14010 |
LN10#,111,RN110;RN10#,135..ARL,V |
1 | ||
| 88335-14010 |
LN106..RHD;LN107,111,RN110;LN106..LHD..IV3;RN10#,135..ARL,V |
1 | ||
| 88335-2B010 |
LN106..RHD;LN106..LHD..IV3;LN107,111,RN106,110;LN130,RN105,130..ARL,V |
1 | ||
| 88335-2B010 |
RN105..ARL,V;LN10#,111,130,RN106,110,130..RHD |
1 | ||
| 88335-2B010 |
RN106;RN105..ARL,V;LN10#,111,130,RN110,130..RHD |
1 | ||
| 88335-2B010 |
RN105..ARL,V;LN10#,111,130,RN106,110,130..RHD |
1 | ||
| 88335-14010 |
LN106..RHD;RN10#..ARL,V;LN107,111,RN110;LN106..LHD..IV3 |
1 | ||
| 88335-2B010 |
RN106;RN105..ARL,V;LN10#,111,130,RN110,130..RHD |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
LN10#,111,RN110;RN10#,135..ARL,V |
2 | ||
| 88343-14020 |
LN135..LHD;RN10#,13#..ARL,V;LN10#,111,130,RN110,VZN130 |
2 | ||
| 88343-14020 |
RN10#,110..ARL |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
LN10#,111,RN110;RN10#,135..ARL,V |
2 | ||
| 88343-14020 |
LN135..LHD;RN10#,13#..ARL,V;LN10#,111,130,RN110,VZN130 |
2 | ||
| 88343-14020 |
RN10#,110..ARL |
1 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14020 |
RN10#..ARL;LN10#,111,RN110 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14020 |
RN10#..ARL;LN10#,111,RN110 |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
LN10#,111,RN110;RN10#,135..ARL,V |
1 | ||
| 90096-90022 |
LN135..LHD;RN10#,13#..ARL,V;LN10#,111,130,RN110,VZN130 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
LN10#,111,RN110;RN10#,135..ARL,V |
1 | ||
| 88360-14030 |
RN10#..ARL,V;LN10#,111,RN110 |
1 | ||
| 88360-2B010 |
LN135..LHD;RN105,130..ARL,V;LN10#,111,130,RN106,110,VZN130,YN106 |
1 | ||
| 88360-2B010 |
LN135..LHD;RN10#,130..ARL,V;LN10#,111,130,RN110,VZN130,YN106 |
1 | ||
| 88360-2B010 |
LN135..LHD;RN10#,130..ARL,V;LN10#,111,130,RN110,VZN130,YN106 |
1 | ||
| 88360-2B010 |
LN135..LHD;RN105,130..ARL,V;LN10#,111,130,RN106,110,VZN130,YN106 |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-35070 |
RN10#..ARL;LN106..RHD;LN107,111,RN110;LN106..LHD..IV3 |
1 | ||
| 88371-35070 |
RN10#..ARL;LN10#,111,RN110 |
1 | ||
| 88371-60350 |
YN106;RN10#,110,130..ARL |
1 | ||
| 88371-60350 |
RN10#,110,130..ARL |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
LN10#,111,RN110;RN10#,135..ARL,V |
2 | ||
| 88374-12020 |
LN106..RHD;LN107,111,RN110;LN106..LHD..IV3;RN10#,135..ARL,V |
2 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
LN10#,111,RN110;RN10#,135..ARL,V |
2 | ||
| 88374-12020 |
LN106..RHD;LN107,111,RN110;LN106..LHD..IV3;RN10#,135..ARL,V |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LN10#,111,RN110;RN10#,135..ARL,V SUCTION |
1 | ||
| 88375-20010 |
LN10#,111,RN110;RN10#,135..ARL,V DISCHARGE |
1 | ||
| 88375-30270 |
LN106..RHD;LN107,111,RN110;LN106..LHD..IV3;RN10#,135..ARL,V SUCTION |
1 | ||
| 88375-20010 |
LN106..RHD;LN107,111,RN110;LN106..LHD..IV3;RN10#,135..ARL,V DISCHARGE |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LN10#,111,RN110;RN10#,135..ARL,V SUCTION |
1 | ||
| 88375-20010 |
LN10#,111,RN110;RN10#,135..ARL,V DISCHARGE |
1 | ||
| 88375-30270 |
LN106..RHD;LN107,111,RN110;LN106..LHD..IV3;RN10#,135..ARL,V SUCTION |
1 | ||
| 88375-20010 |
LN106..RHD;LN107,111,RN110;LN106..LHD..IV3;RN10#,135..ARL,V DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
RN10#..ARL,V;LN10#,111,RN110 SUCTION |
1 | ||
| 88376-22020 |
LN106..RHD;RN10#..ARL,V;LN107,111,RN110;LN106..LHD..IV3 SUCTION |
1 | ||
| 88376-22010 |
LN106..RHD;RN10#..ARL,V;LN107,111,RN110;LN106..LHD..IV3 DISCHARGE |
1 | ||
| 88376-22010 |
RN10#..ARL,V;LN10#,111,RN110 DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
RN10#..ARL,V;LN10#,111,RN110 SUCTION |
1 | ||
| 88376-22020 |
LN106..RHD;RN10#..ARL,V;LN107,111,RN110;LN106..LHD..IV3 SUCTION |
1 | ||
| 88376-22010 |
LN106..RHD;RN10#..ARL,V;LN107,111,RN110;LN106..LHD..IV3 DISCHARGE |
1 | ||
| 88376-22010 |
RN10#..ARL,V;LN10#,111,RN110 DISCHARGE |
1 | ||
| Common parts | ||||
| 90099-04370 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
