RN110R-CRMSSQ (1988)
Toyota Hilux/4runner (4wd)
Production
Aug 1988
-
Aug 1997
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

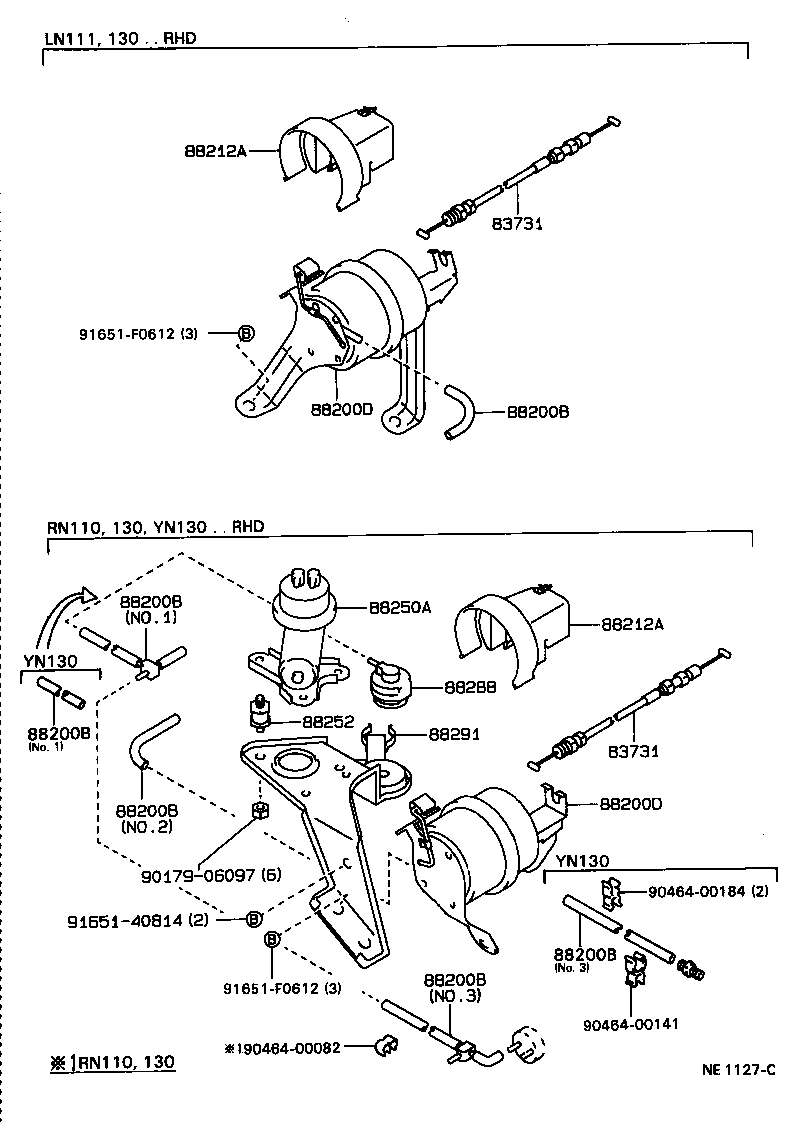

ILLUST NO. 1 OF 3(8808-8908)LN111,RN110..ARL ; (8908-9008)LN130,RN130,YN130..SR5
Click highlighted areas on diagram
ACTUATOR & CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83731 - CABLE, CRUISE CONTROL | ||||
| 83731-35150 |
RN110 |
1 | ||
| 83731 - CABLE, CRUISE CONTROL | ||||
| 83731-35150 |
RN110 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-35030 |
RN110 NO.3 |
1 | ||
| 88283-35040 |
RN110 NO.1 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-35030 |
RN110 NO.3 |
1 | ||
| 88283-35040 |
RN110 NO.1 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-35030 |
RN110 NO.3 |
1 | ||
| 88283-35040 |
RN110 NO.1 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-35030 |
RN110 NO.3 |
1 | ||
| 88283-35040 |
RN110 NO.1 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-35030 |
RN110 NO.3 |
1 | ||
| 88283-35040 |
RN110 NO.1 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-35030 |
RN110 NO.3 |
1 | ||
| 88283-35040 |
RN110 NO.1 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-35161 |
RN110 |
1 | ||
| 88200-35160 |
RN110 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-35161 |
RN110 |
1 | ||
| 88200-35160 |
RN110 |
1 | ||
| 88212A - COVER, CRUISE CONTROL ACTUATOR | ||||
| 88212-12070 |
LN111,RN110..ARL |
1 | ||
| 88212A - COVER, CRUISE CONTROL ACTUATOR | ||||
| 88212-12070 |
LN111,RN110..ARL |
1 | ||
| 88250A - PUMP ASSY, CRUISE CONTROL | ||||
| 88251-35070 |
RN110 |
1 | ||
| 88252 - CUSHION, VACUUM PUMP | ||||
| 88252-30130 |
RN110 |
3 | ||
| 88288 - SWITCH, VACUUM SPEED CONTROL | ||||
| 88288-22010 |
RN110 |
1 | ||
| 88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1 | ||||
| 88291-35040 |
RN110 |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90464-00184 | ||||
| 91651-40814 | ||||
| 91651-F0612 | ||||

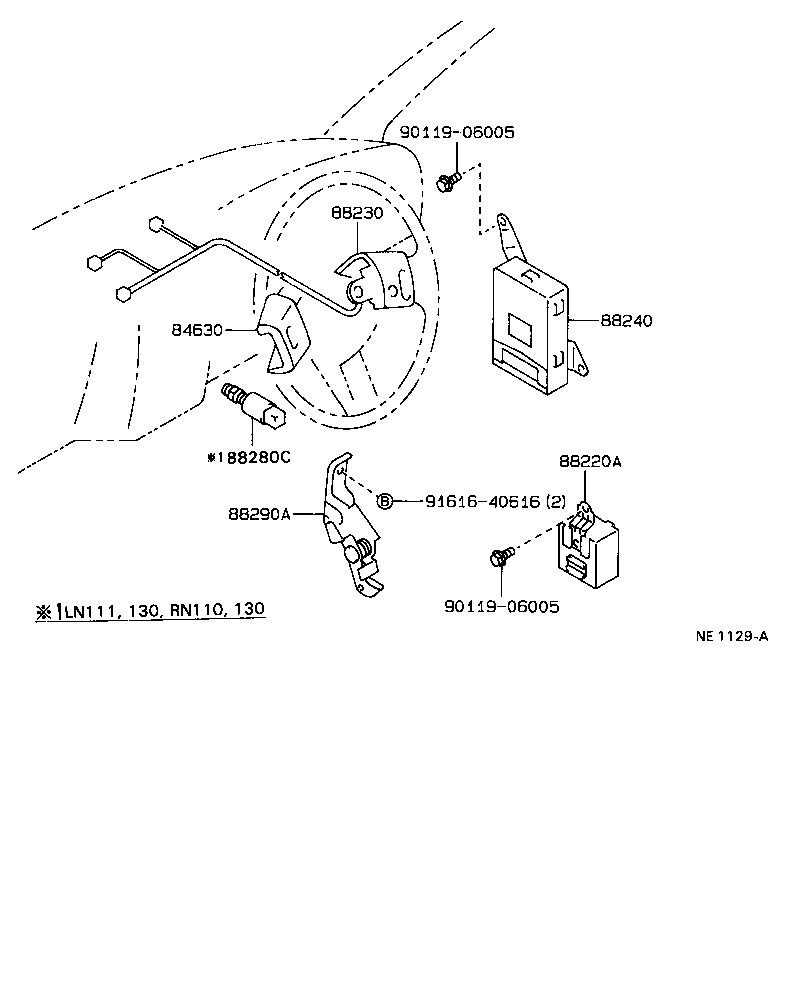

ILLUST NO. 2 OF 3(8808-8908)LN111,RN110..ARL ; (8908-9008)LN130,RN130,YN130..SR5
Click highlighted areas on diagram
SWITCH,COMPUTER,RELAY & BELLCRANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84630 - SWITCH ASSY, CRUISE CONTROL MAIN | ||||
| 84630-3503006 |
LN111,RN110..ARL BROWN,TRIM4# |
1 | ||
| 84630-3503004 |
LN111,RN110..ARL BLUE,TRIM8# |
1 | ||
| 84630-3503003 |
LN111,RN110..ARL GRAY,TRIM1# |
1 | ||
| 88220A - RELAY ASSY, SPEED CONTROL MAIN | ||||
| 88220-35010 |
LN111,RN110..ARL |
1 | ||
| 88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL | ||||
| 88230-3503004 |
LN111,RN110..ARL BLUE,TRIM8# |
1 | ||
| 88230-3503006 |
LN111,RN110..ARL BROWN,TRIM4# |
1 | ||
| 88230-3503003 |
LN111,RN110..ARL GRAY,TRIM1# |
1 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-35130 |
RN110 |
1 | ||
| 88280C - SWITCH ASSY, CLUTCH | ||||
| 88280-20010 |
LN111,RN110..ARL |
1 | ||
| 88290A - BELLCRANK ASSY, CRUISE CONTROL | ||||
| 88290-89104 |
RN110 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91616-40616 | ||||
