RN110R-CRMSSQ (1988)

Toyota Hilux/4runner (4wd)

Production Aug 1988 - Aug 1997
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22R..RN110,130..ARL

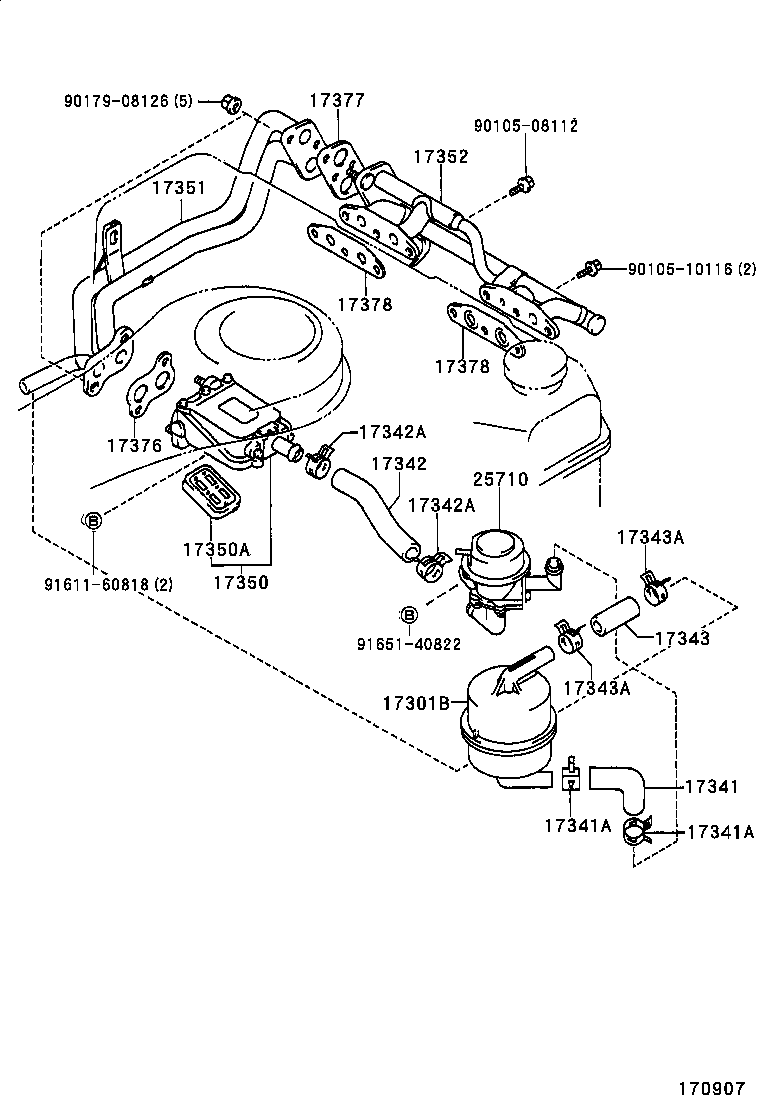

Click highlighted areas on diagram

diagram 17301B 17341 17341A 17341A 17342 17342A 17342A 17343 17343A 17343A 17350 17350A 17351 17352 17376 17377 17378 17378 25710 9010508112 9010510116 9017908126 9161160818 9165140822
Part # Description Qty Price
17301B - SILENCER SUB-ASSY, AIR SUCTION
17301-35060

22R..RN110,130..ARL

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35170

22R..RN110,130..ARL

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26005

22RE..RN106;22R..RN110,130..ARL

 2
90467-26005

22R..RN110,130..ARL

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26005

22RE..RN106;22R..RN110,130..ARL

 2
90467-26005

22R..RN110,130..ARL

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35080

22R..RN110,130..ARL

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN110,130..ARL

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN110,130..ARL

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-35030

22R..RN110,130..ARL

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26005

22R..RN110,130..ARL

 2
90467-26005

22RE..RN106;22R..RN110,130..ARL

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26005

22R..RN110,130..ARL

 2
90467-26005

22RE..RN106;22R..RN110,130..ARL

 2
17350 - VALVE ASSY, REED
17350-35040

22R..RN110,130..ARL

 1
17350A - VALVE SUB-ASSY, REED
17305-35020

22R..RN110,130..ARL

 2
17351 - MANIFOLD, AIR INJECTION
17351-35040

22R..RN110,130..ARL

 1
17352 - MANIFOLD, AIR INJECTION, NO.2
17352-35050

22R..RN110,130..ARL

 1
17376 - GASKET, AIR TUBE, NO.1
17376-37010

22R..RN110

 1
17376-35040

22R..RN110,130..ARL

 1
17377 - GASKET, AIR TUBE, NO.2
17377-35020

22R..RN110,130..ARL

 1
17378 - GASKET AIR TUBE, NO.3
17378-35020

22R..RN110,130..ARL

 2
17378-35020

22RE..RN106;22R..RN110,130..ARL

 2
17378 - GASKET AIR TUBE, NO.3
17378-35020

22R..RN110,130..ARL

 2
17378-35020

22RE..RN106;22R..RN110,130..ARL

 2
25710 - VALVE ASSY, AIR SWITCHING
25710-35060

22R..RN110,130..ARL

 1
Common parts
90105-08112
90105-10116
90179-08126
91611-60818
91651-40822
