RN106L-PRMRE (1994)

Toyota Hilux/4runner (4wd)

Production Jan 1994 - Aug 1997
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9909)22R

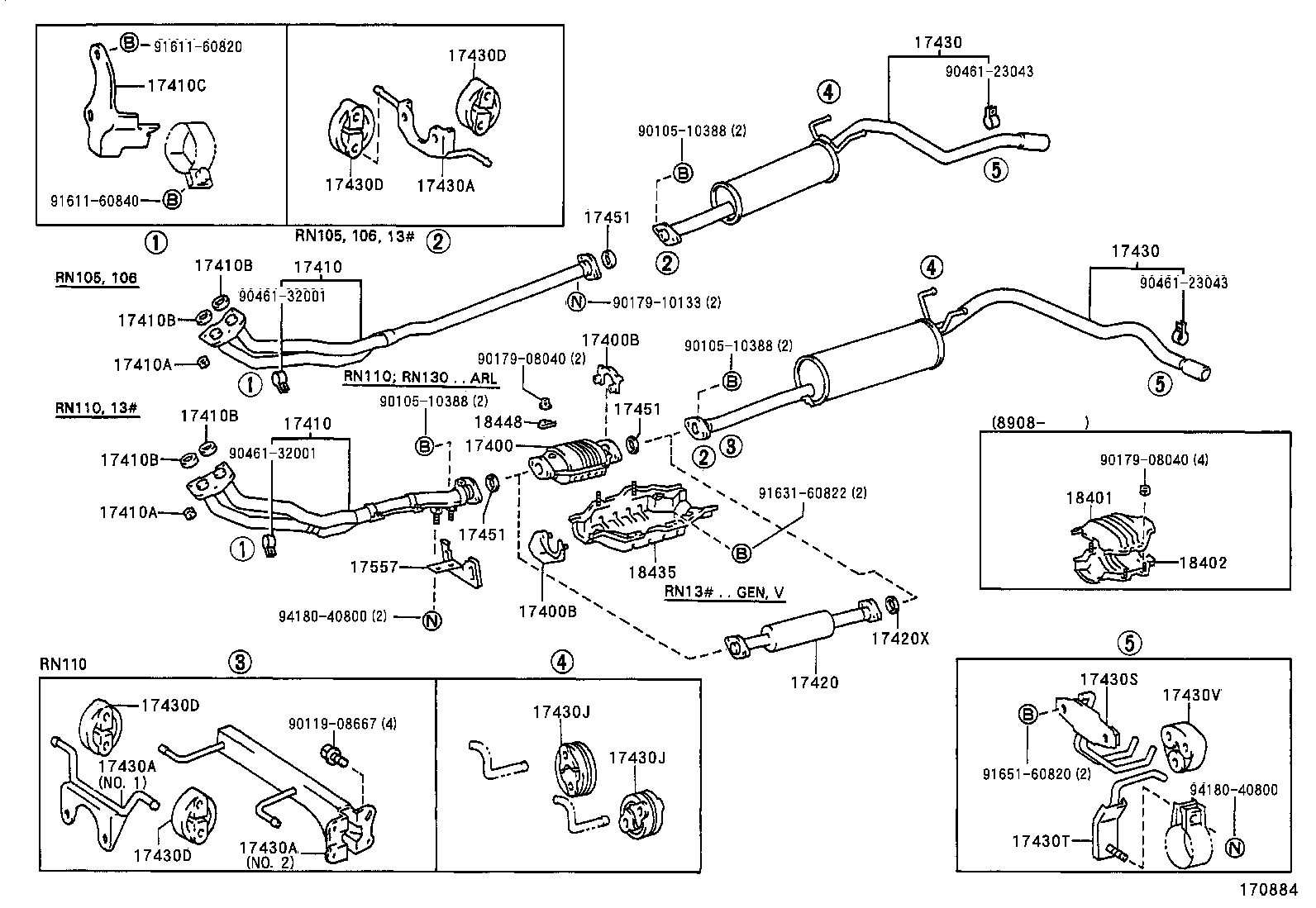

Click highlighted areas on diagram

diagram 17400 17400B 17400B 17410 17410 17410A 17410A 17410B 17410B 17410B 17410B 17410C 17420 17420X 17430 17430 17430A 17430A 17430A 17430D 17430D 17430D 17430D 17430J 17430J 17430S 17430T 17430V 17451 17451 17451 17557 18401 18402 18435 18448 9010510388 9010510388 9010510388 9011908667 9017908040 9017908040 9017910133 9046123043 9046123043 9046132001 9046132001 9161160820 9161160840 9163160822 9165160820 9418040800 9418040800
Part # Description Qty Price
17400B - RETAINER, EXHAUST PIPE
18495-35060

22RE..RN106

 1
17400B - RETAINER, EXHAUST PIPE
18495-35060

22RE..RN106

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3L..LN111..ARL;22R#,3L,3VZE,4Y#..LN10#,13#,RN10#,110,13#,VZN130,YN106,13#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3L..LN111..ARL;22R#,3L,3VZE,4Y#..LN10#,13#,RN10#,110,13#,VZN130,YN106,13#

 3
17410B - GASKET, EXHAUST PIPE
90917-06038

22R#,4Y#..RN10#,110,13#,YN106,13#

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

22R#,4Y#..RN10#,110,13#,YN106,13#

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

22R#,4Y#..RN10#,110,13#,YN106,13#

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

22R#,4Y#..RN10#,110,13#,YN106,13#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-35070

22R..RN10#,110,13#

 1
17571-35040

22RE..RN106

(J)

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-35871

22RE..RN106

 1
17430-3D010

22R..RN10#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-35871

22RE..RN106

 1
17430-3D010

22R..RN10#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35120

22R,3L,4Y..LN10#,RN10#,YN106

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35120

22R,3L,4Y..LN10#,RN10#,YN106

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35120

22R,3L,4Y..LN10#,RN10#,YN106

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-54020

22R,3L,4Y..LN10#,111,RN10#,110,YN106

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17585-71010

22R,3L,4Y#..LN10#,111,13#,RN10#,110,13#,YN106,13#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-35030

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
Common parts
90105-10388
90119-08667
90179-08040
90179-10133
90461-23043
90461-32001
91611-60820
91611-60840
91631-60822
91651-60820
94180-40800
