RN105R-TRMRSQ (1988)
Toyota Hilux/4runner (4wd)
ILLUST NO. 1 OF 2(8808- )LN10#,111,RN10#,110,YN106
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RN105,110,13#,YN106,135 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-35974 |
RN105,110..T1 |
1 | ||
| 77001-35976 |
RN105,110..T1..ARL W(FUEL TANK CAPACITY=73L) |
1 | ||
| 77001-359A5 |
RN105,110..T1..ARL |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN106,111,13#,RN105,110,13#,YN106,13# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN106,111,RN105,110,YN106 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77408-35020 |
LN10#,111,RN105,110,YN106..T1 L=340 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35080 |
RN106..CBR;LN10#,111,RN105,110..ARL |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35080 |
RN106..CBR;LN10#,111,RN105,110..ARL |
1 | ||
| 77162B - BRACKET, FUEL TANK REAR PROTECTOR | ||||
| 77162-35020 |
RN106..CBR;LN10#,111,RN105,110..ARL |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
LN106,111,13#,RN105,110,13#,YN106,135 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35390 |
RN105,110..T1..ARL |
1 | ||
| 77201-35460 |
RN105,110..T1..ARL..CBU |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35390 |
RN105,110..T1..ARL |
1 | ||
| 77201-35460 |
RN105,110..T1..ARL..CBU |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35361 |
RN105,110,YN106..T1 |
1 | ||
| 77203-35371 |
RN105,110..T1..ARL W(FUEL TANK CAPACITY=73L) |
1 | ||
| 77203-35371 |
RN105,110..T1..ARL |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35280 |
LN10#,111,RN105,110,YN106..T1 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-89108 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-89108 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
RN105,110,135,YN106,135..(4D,T1)..CBU |
1 | ||
| 77310-35080 |
RN105,110,130,VZN130..(4D,T1)..ARL..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
LN106,111,13#,RN105,110,135,YN106,135..(2D,4D,T1)..CBU |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-24010 |
LN106,111,RN105,110,YN106..T1..CBU |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-08668 | ||||
| 90159-40155 | ||||
| 90159-60032 | ||||
| 90167-50028 | ||||
| 90170-08204 | ||||
| 90170-11006 | ||||
| 90179-05020 | ||||
| 90460-22001 | ||||
| 90460-55003 | ||||
| 90460-65002 | ||||
| 90461-08323 | ||||
| 90463-12002 | ||||
| 90463-15003 | ||||
| 90480-01137 | ||||
| 90480-01226 | ||||
| 90541-06058 | ||||
| 90541-08014 | ||||
| 90949-01299 | ||||
| 91626-40618 | ||||
| 91626-60816 | ||||
| 91651-60816 | ||||
| 93382-15010 | ||||
| 93385-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||

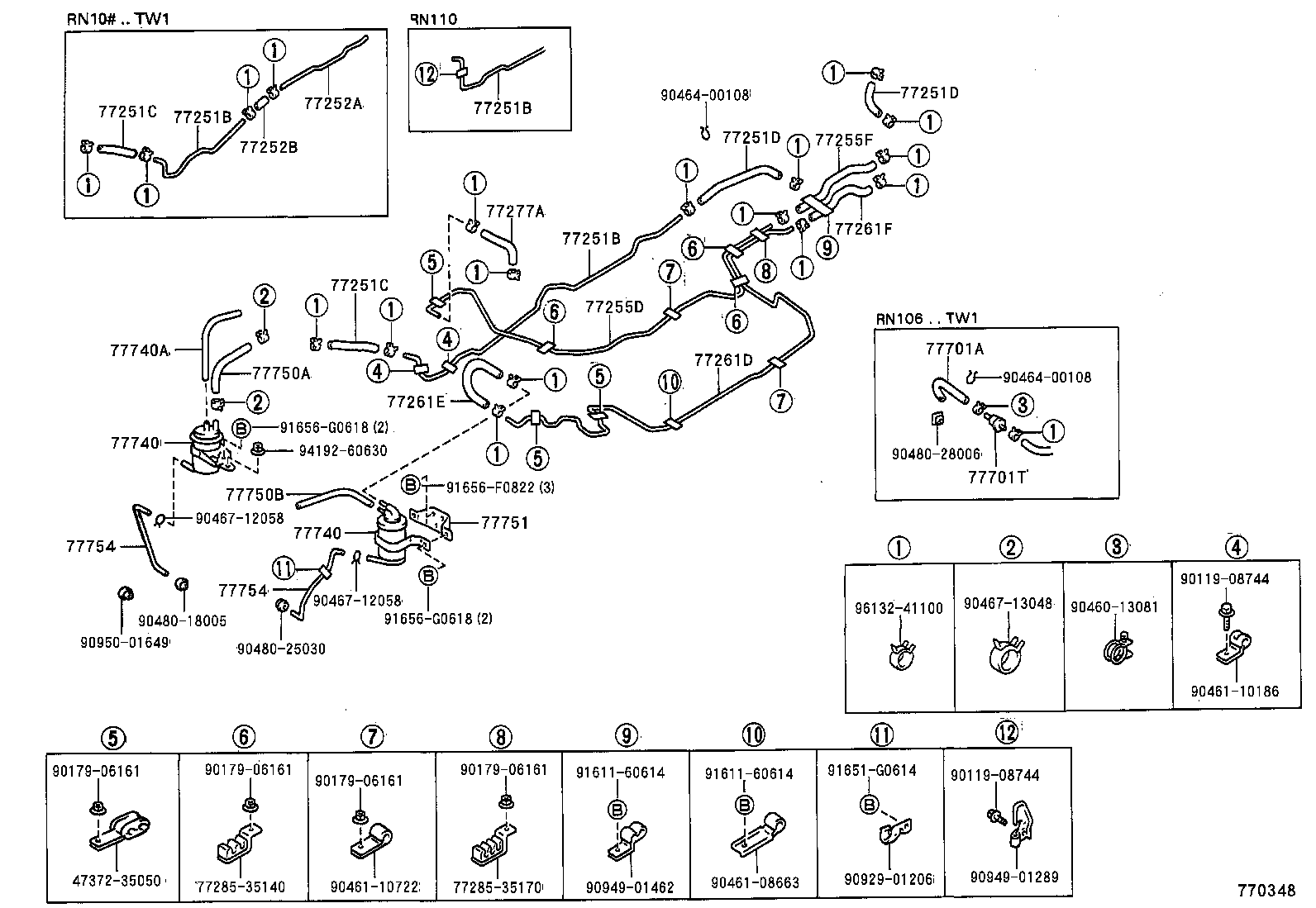

ILLUST NO. 2 OF 2(8808- )RN10#,110..ARL ; (9108- )RN10#..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-35610 |
YN106;RN105..T1;RN105..TW1..V |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-35610 |
YN106;RN105..T1;RN105..TW1..V |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-35610 |
YN106;RN105..T1;RN105..TW1..V |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
RN105,110..T1..ARL *H,L=200,W(FUEL TANK CAPACITY=73L) |
1 | ||
| 95333-06040 |
RN105,110..T1 *H,L=400 |
1 | ||
| 95333-06040 |
RN105,110..T1..(ARL,V) *H,L=400 |
1 | ||
| 95333-06020 |
RN105,110..T1 *H,L=160 |
1 | ||
| 95333-06020 |
RN105,110..T1 *H,L=160 |
1 | ||
| 95334-06040 |
RN105,110..T1 *H,L=400 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
RN105,110..T1..ARL *H,L=200,W(FUEL TANK CAPACITY=73L) |
1 | ||
| 95333-06040 |
RN105,110..T1 *H,L=400 |
1 | ||
| 95333-06040 |
RN105,110..T1..(ARL,V) *H,L=400 |
1 | ||
| 95333-06020 |
RN105,110..T1 *H,L=160 |
1 | ||
| 95333-06020 |
RN105,110..T1 *H,L=160 |
1 | ||
| 95334-06040 |
RN105,110..T1 *H,L=400 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35530 |
RN105,YN106..T1 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 90445-12220 |
RN105,110,YN106..T1 L=685 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-35420 |
RN105..T1..STD |
1 | ||
| 77261-35490 |
RN10#,110..RHD |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
RN105,110..ARL *H,L=300 |
1 | ||
| 95333-06030 |
RN105..ARL;RN105..GEN..CBU;RN106,110,13#,VZN130,YN130..RHD *H,L=260 |
1 | ||
| 95333-06030 |
RN105,110..T1..ARL *H,L=280 |
1 | ||
| 95333-06030 |
RN105,110..T1..ARL *H,L=260 |
1 | ||
| 95333-06030 |
RN106..EFI;RN10#,110,13#,VZN130..RHD *H,L=260 |
1 | ||
| 95333-06030 |
RN10#,110,13#,VZN130..RHD *H,L=260 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06060 |
RN105,110..T1..ARL *H,L=460,W(FUEL TANK CAPACITY=73L) |
1 | ||
| 90445-12179 |
RN105,110..T1 L=645 |
1 | ||
| 95333-06060 |
RN105,110..T1..ARL *H,L=460 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-35080 |
RN10#,110,13#..RHD |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35320 |
RN105..ARL FR |
1 | ||
| 77740-35320 |
RN105,110,130..ARL FR |
1 | ||
| 77740-35320 |
RN10#,110..RHD FR |
1 | ||
| 77740-35230 |
RN10#,110..RHD RR |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35320 |
RN105..ARL FR |
1 | ||
| 77740-35320 |
RN105,110,130..ARL FR |
1 | ||
| 77740-35320 |
RN10#,110..RHD FR |
1 | ||
| 77740-35230 |
RN10#,110..RHD RR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90999-92006 |
RN105,110..ARL L=1150 |
1 | ||
| 90445-08275 |
RN10#,110,130..RHD L=1150 |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 23829-35040 |
RN10#,110,13#..RHD |
1 | ||
| 23829-35030 |
RN105,110..ARL |
1 | ||
| 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) | ||||
| 90999-92002 |
RN10#,110,130..RHD *H,L=180,MARK=#* |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-35071 |
RN105,110..ARL |
1 | ||
| 77751-35070 |
RN105,110..ARL |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35250 |
RN105..RHD RR |
1 | ||
| 77754-35230 |
RN105..RHD FR |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35250 |
RN105..RHD RR |
1 | ||
| 77754-35230 |
RN105..RHD FR |
1 | ||
| Common parts | ||||
| 47372-35050 | ||||
| 77285-35140 | ||||
| 77285-35170 | ||||
| 90119-08744 | ||||
| 90179-06161 | ||||
| 90460-13081 | ||||
| 90461-08663 | ||||
| 90461-10186 | ||||
| 90461-10722 | ||||
| 90464-00108 | ||||
| 90467-12058 | ||||
| 90467-13048 | ||||
| 90480-18005 | ||||
| 90480-25030 | ||||
| 90480-28006 | ||||
| 90929-01206 | ||||
| 90949-01289 | ||||
| 90949-01462 | ||||
| 90950-01649 | ||||
| 91611-60614 | ||||
| 91651-G0614 | ||||
| 91656-F0822 | ||||
| 91656-G0618 | ||||
| 94192-60630 | ||||
| 96132-41100 | ||||
