RN105R-TRMRS3 (1991)

Toyota Hilux/4runner (4wd)

Production Aug 1991 - Aug 1994
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

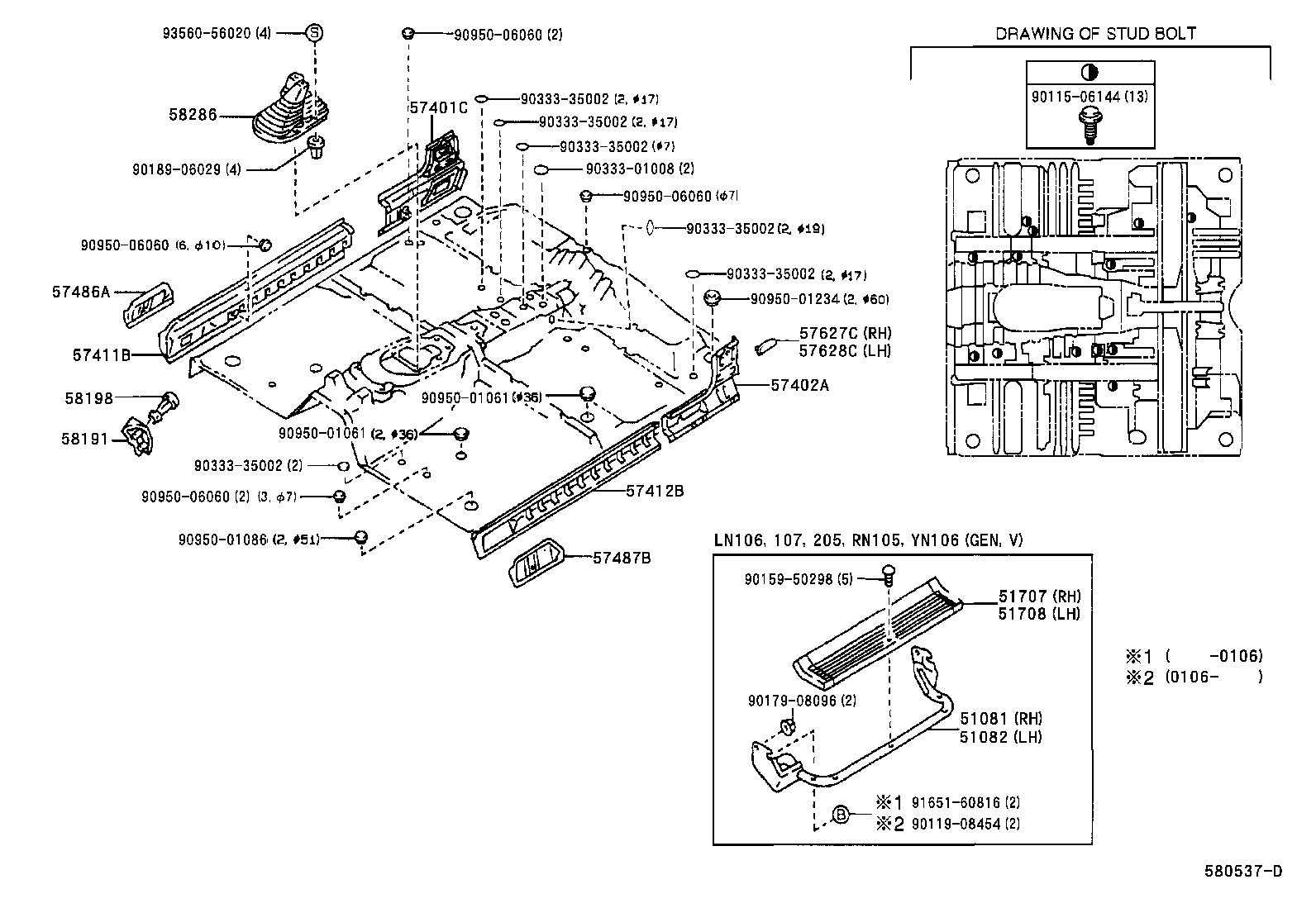

ILLUST NO. 1 OF 2(8808-0106)LN10#,RN105,YN106..T1 ; (0106- )T1

Click highlighted areas on diagram

diagram 51081 51082 51707 51708 57401C 57402A 57411B 57412B 57486A 57487B 57627C 57628C 58191 58198 58286 9011506144 9011908454 9015950298 9017908096 9018906029 9033301008 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9095001061 9095001061 9095001086 9095001234 9095006060 9095006060 9095006060 9095006060 9165160816 9356056020
Part # Description Qty Price
51081 - STAY SUB-ASSY, SIDE STEP, NO.1 RH
51081-89101

RN105..T1..V;LN10#,YN106..T1..GEN

 1
51082 - STAY SUB-ASSY, SIDE STEP, NO.1 LH
51082-89101

RN105..T1..V;LN10#,YN106..T1..GEN

 1
51707 - STEP SUB-ASSY, RH
51707-89104

LN106,RN105,YN106..T1..(GEN,V)

 1
51083-35050

RN105..T1..V;LN106,YN106..T1..GEN

 1
51708 - STEP SUB-ASSY, LH
51707-89104

LN106,RN105,YN106..T1..(GEN,V)

 1
51083-35050

RN105..T1..V;LN106,YN106..T1..GEN

 1
57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-89114

LN10#,RN105,YN106..T1

 1
57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-89114

LN10#,RN105,YN106..T1

 1
57411B - MEMBER, FLOOR SIDE, INNER RH
57411-89104

LN106,111,13#,RN105,110,13#,YN106,13#

 1
57412B - MEMBER, FLOOR SIDE, INNER LH
57412-89106

LN106,111,13#,RN105,110,13#,YN106,13#

 1
57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57486-89104

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
57487B - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57487-89102

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
57627C - COVER, REAR FLOOR SIDE MEMBER, RH
57627-89101

LN106,YN106..LHD..T1;LN106,RN105..T1..(ARL,V)

 1
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57627-89101

LN106,YN106..LHD..T1;LN106,RN105..T1..(ARL,V)

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-89112

LN13#,RN10#,110,13#,VZN130,YN106,135..RHD..5F

 1
Common parts
90115-06144
90119-08454
90159-50298
90179-08096
90189-06029
90333-01008
90333-35002
90950-01061
90950-01086
90950-01234
90950-06060
91651-60816
93560-56020
