RN105R-TRMRS3 (1991)

Toyota Hilux/4runner (4wd)

Production Aug 1991 - Aug 1994
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

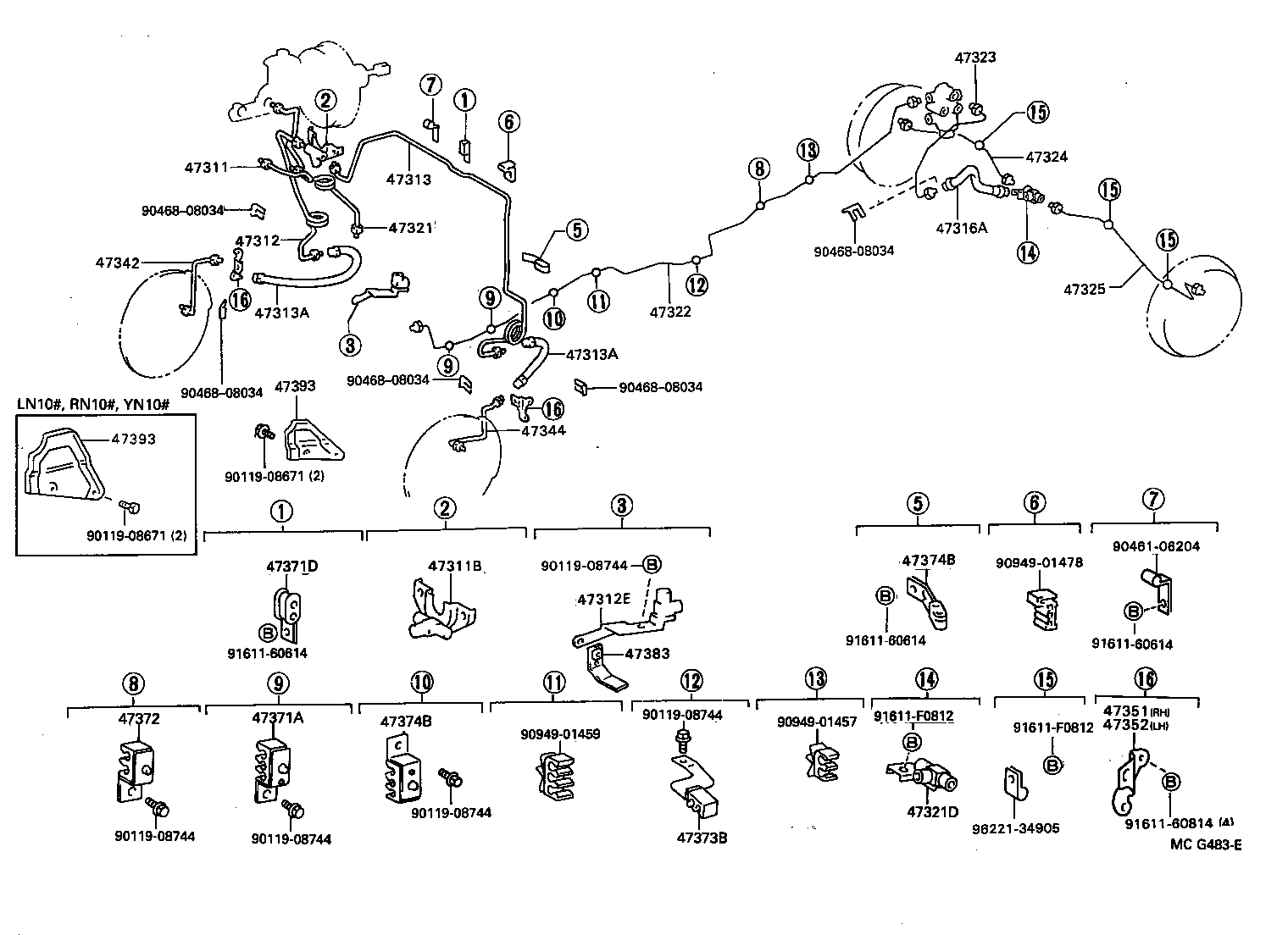

ILLUST NO. 1 OF 3(8808-9909)RHD..GEN

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47316A 47321 47321D 47322 47323 47324 47325 47342 47344 47351 47352 47371A 47371D 47372 47373B 47374B 47374B 47383 47393 47393 9011908671 9011908671 9011908744 9011908744 9011908744 9011908744 9011908744 9046106204 9046808034 9046808034 9046808034 9046808034 9046808034 9094901457 9094901459 9094901478 9161160614 9161160614 9161160614 9161160814 91611F0812 91611F0812 9622134905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35450

LN10#,111,13#,RN10#,110,13#,VZN130..RHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

RN10#,110,13#;LN106,111,13#,YN106,135..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35620

RN105,YN106..RHD..GEN

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10108

LN106,RN105,YN106..GEN,V

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35430

RN105..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02583

LN106,RN105,YN106

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02583

LN106,RN105,YN106

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34406

LN10#,111,135,RN10#,110,135,YN106,135

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35530

RN105..RHD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10162

LN10#,111,135,RN10#,110,135,YN106,135

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35380

LN106,RN105,YN106

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35120

LN10#,111,135,RN10#,110,135,YN106,135

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35170

LN106,RN105,YN106

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35180

LN106,RN105,YN106

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35120

LN106,RN105,YN106

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35120

LN106,RN105,YN106

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35120

LN106,RN105,YN106

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47353-35080

LN106,RN105,YN106

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35070

LN106,RN105,YN106

 1
47371-35070

LN106,RN105,13#,YN106

 1
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080

LN106,111,135,RN105,135,YN106,135..GEN,V

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35030

LN106,RN105,YN106

 2
47373B - CLAMP, BRAKE TUBE, NO.3
47371-35160

RN105,110,YN106..T1

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-35020

LN10#,111,13#,RN10#,110,13#,YN106,13#..RHD

FRONT

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-35020

LN10#,111,13#,RN10#,110,13#,YN106,13#..RHD

FRONT

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35070

RN105,YN106

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35070

RN105,YN106

 1
Common parts
90119-08671
90119-08744
90461-06204
90468-08034
90949-01457
90949-01459
90949-01478
91611-60614
91611-60814
91611-F0812
96221-34905
