RN105R-PRMRS (1991)
Toyota Hilux/4runner (4wd)

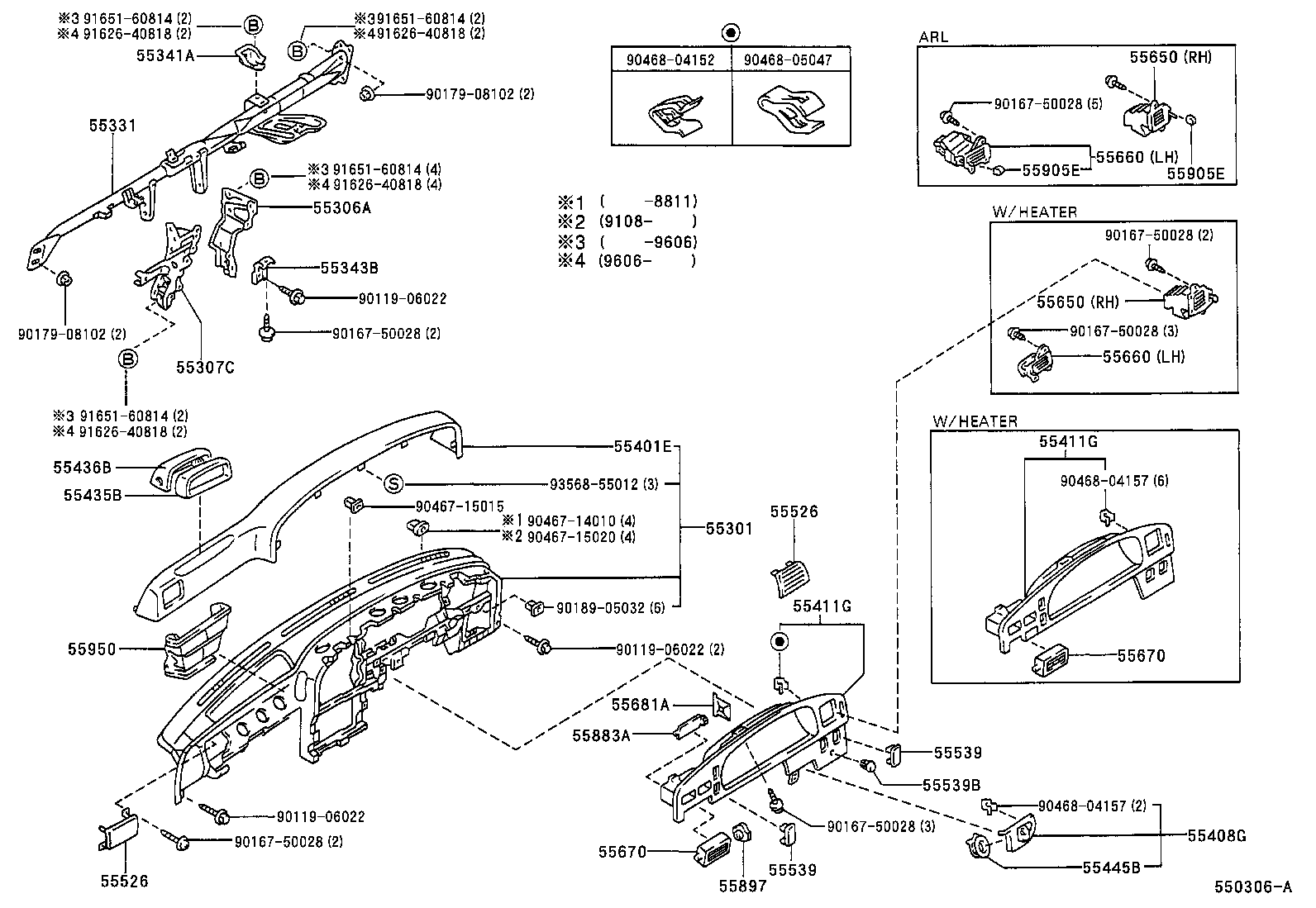

ILLUST NO. 1 OF 2(8808-9909)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-8912304 |
LN106,111,RN105,110,YN106..RHD BLUE,TRIM8# |
1 | ||
| 55301-8912306 |
LN106,111,RN105,110,YN106..RHD BROWN,TRIM4# |
1 | ||
| 55301-8912303 |
LN106,111,RN105,110,YN106..RHD GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-89106 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-89108 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-89118 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD |
1 | ||
| 55341A - BRACE, INSTRUMENT PANEL TO COWL, UPPER | ||||
| 55341-89104 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-89102 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-8912304 |
LN106,111,RN105,110,YN106..RHD BLUE,TRIM8# |
1 | ||
| 55401-8912306 |
LN106,111,RN105,110,YN106..RHD BROWN,TRIM4# |
1 | ||
| 55401-8912303 |
LN106,111,RN105,110,YN106..RHD GRAY,TRIM1# |
1 | ||
| 55408G - BEZEL SUB-ASSY, STARTER SWITCH | ||||
| 55408-89104 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-89114 |
LN106,135,RN105,135,YN106,135..RHD..GEN |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-89114 |
LN106,135,RN105,135,YN106,135..RHD..GEN |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-89103 |
LN107..ARL;LN106,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-89105 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-89105 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-89104 |
RN135..GEN;LN106,111,13#,RN10#,130,YN106,135..GEN,V |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-89113 |
LN106,135,RN105,135,YN106,135..RHD..GEN |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-89113 |
LN106,135,RN105,135,YN106,135..RHD..GEN |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-89108J0 |
LN106,135,RN105,135,YN106..RHD..GEN MEDIUM BLUE,TRIM8# |
1 | ||
| 55660-8910804 |
LN106,135,RN105,135,YN106,135..RHD..GEN BLUE,TRIM8# |
1 | ||
| 55660-8910803 |
LN106,135,RN105,135,YN106,135..RHD..GEN GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-89108J0 |
LN106,135,RN105,135,YN106..RHD..GEN MEDIUM BLUE,TRIM8# |
1 | ||
| 55660-8910804 |
LN106,135,RN105,135,YN106,135..RHD..GEN BLUE,TRIM8# |
1 | ||
| 55660-8910803 |
LN106,135,RN105,135,YN106,135..RHD..GEN GRAY,TRIM1# |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-89109 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90167-50028 | ||||
| 90179-08102 | ||||
| 90189-05032 | ||||
| 90467-14010 | ||||
| 90467-15015 | ||||
| 90467-15020 | ||||
| 90468-04152 | ||||
| 90468-04157 | ||||
| 90468-05047 | ||||
| 91626-40818 | ||||
| 91651-60814 | ||||
| 93568-55012 | ||||

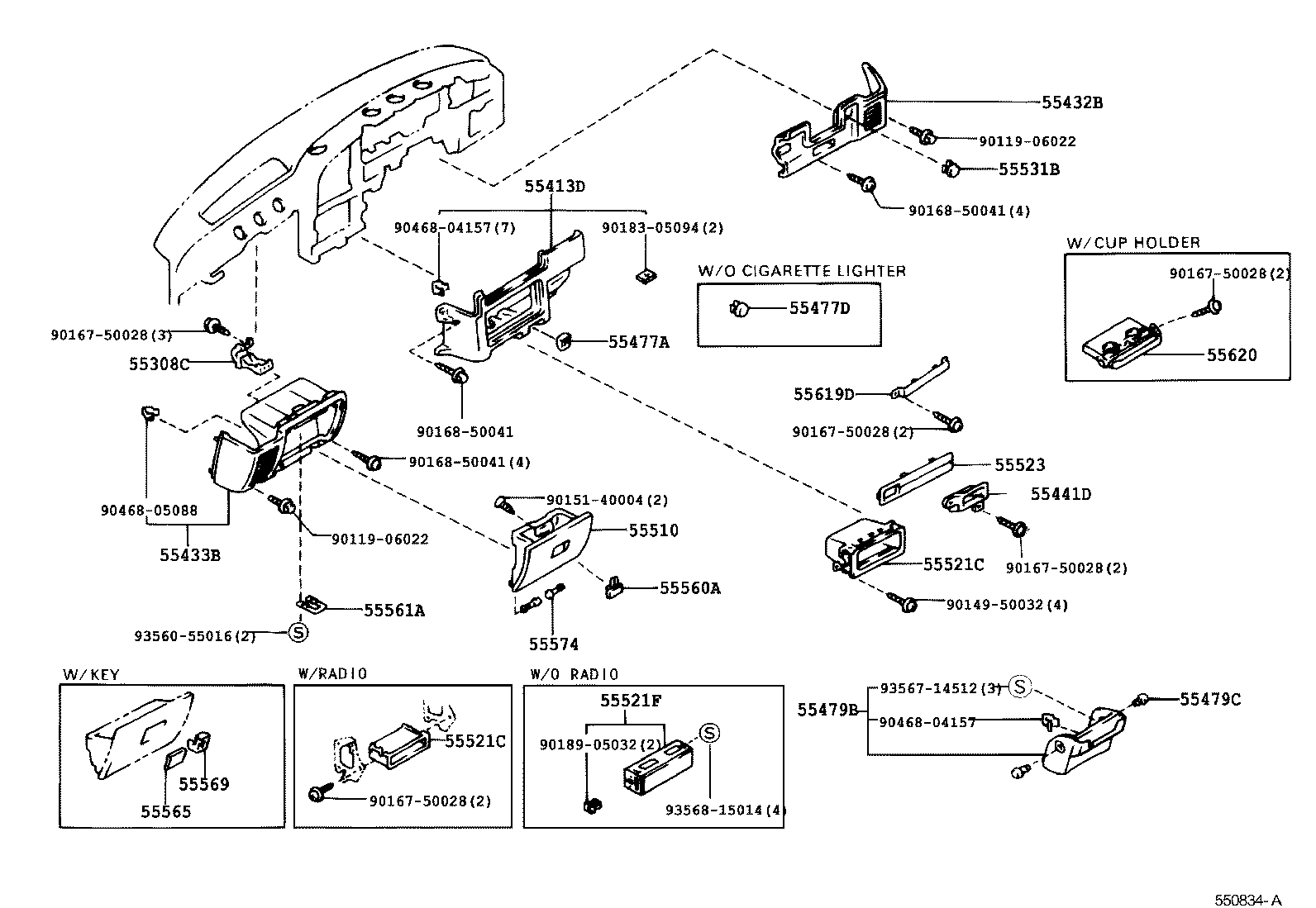

ILLUST NO. 2 OF 2(8808-9909)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-89109 |
LN13#,RN13#,YN135;LN10#,111,RN10#,110,VZN130,YN106,130..RHD |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-8910304 |
LN106,111,RN105,110,YN106..RHD BLUE,TRIM8# |
1 | ||
| 55413-8910303 |
LN106,111,RN105,110,YN106..RHD GRAY,TRIM1# |
1 | ||
| 55413-8910306 |
LN106,111,RN105,110,YN106..RHD BROWN,TRIM4# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-8911503 |
LN106,111,RN105,110,YN106..RHD GRAY,TRIM1# |
1 | ||
| 55432-8911506 |
LN106,111,RN105,110,YN106..RHD BROWN,TRIM4# |
1 | ||
| 55432-8911504 |
LN106,111,RN105,110,YN106..RHD BLUE,TRIM8# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-8910904 |
LN106,111,RN105,110,YN106..RHD BLUE,TRIM8# |
1 | ||
| 55433-8910903 |
LN106,111,RN105,110,YN106..RHD GRAY,TRIM1# |
1 | ||
| 55433-8910906 |
LN106,111,RN105,110,YN106..RHD BROWN,TRIM4# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-89105 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 55477D - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-10050J0 |
LN106,111,135,RN105,YN106,135..DLX,STD BLUE,TRIM8# |
1 | ||
| 55477-1005043 |
LN106,111,135,RN105,YN106,135..DLX,STD BROWN,TRIM4# |
1 | ||
| 55477-10050B0 |
LN106,111,135,RN105,YN106,135..DLX,STD GRAY,TRIM1# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-8910303 |
LN106,111,RN105,110,YN106..RHD GRAY,TRIM1# |
1 | ||
| 55479-8910306 |
LN106,111,RN105,110,YN106..RHD BROWN,TRIM4# |
1 | ||
| 55479-8910304 |
LN106,111,RN105,110,YN106..RHD BLUE,TRIM8# |
1 | ||
| 55407-35020J0 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106..RHD BLUE,TRIM8# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-0704110 |
LN106,111,RN105,110,YN106..RHD MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0704144 |
LN106,111,RN105,110,YN106..RHD BLUE,TRIM8# |
2 | ||
| 90467-0704101 |
LN111,RN110,YN106..RHD;LN106,RN105..RHD..(DLX,STD) BLACK,TRIM1#,4#,8# |
2 | ||
| 90467-0704156 |
LN106,111,RN105,110,YN106..RHD BROWN,TRIM4# |
2 | ||
| 90467-07041J1 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106 MEDIUM BLUE,TRIM8# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-8910103 |
LN106,111,RN105,110,YN106 GRAY,TRIM1# |
1 | ||
| 55550-8910106 |
LN106,111,RN105,110,YN106 BROWN,TRIM4# |
1 | ||
| 55550-8910104 |
LN106,111,RN105,110,YN106 BLUE,TRIM8# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-89102 |
LN106,YN106..RHD..(DLX,STD);LN13#,RN105,130,YN135..(DLX,STD)..(ARL,GEN) W(RADIO) |
1 | ||
| 55521-89103 |
LN106,YN106..RHD..(DLX,STD);LN13#,RN105,130,YN135..(DLX,STD)..(ARL,GEN) |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-89102 |
LN106,YN106..RHD..(DLX,STD);LN13#,RN105,130,YN135..(DLX,STD)..(ARL,GEN) W(RADIO) |
1 | ||
| 55521-89103 |
LN106,YN106..RHD..(DLX,STD);LN13#,RN105,130,YN135..(DLX,STD)..(ARL,GEN) |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-8910503 |
RN105,110,YN106 GRAY,TRIM1# |
1 | ||
| 55531-8910506 |
RN105,110,YN106 BROWN,TRIM4# |
1 | ||
| 55531-8910504 |
RN105,110,YN106 BLUE,TRIM8# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-8910304 |
LN106,111,RN105,YN106..(DLX,STD)..(ARL,GEN) BLUE,TRIM8# |
1 | ||
| 55560-8910303 |
LN106,111,RN105,YN106..(DLX,STD)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| 55560-8910306 |
LN106,111,RN105,YN106..(DLX,STD)..(ARL,GEN) BROWN,TRIM4# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-89104 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-89101R9 |
LN106,RN105..GEN,V;LN106,RN105..DLX..ARL;LN107,111,13#,RN106,110,13#,VZN130,YN106 BLUE,TRIM8# |
1 | ||
| 55565-89101S4 |
LN106,RN105..GEN,V;LN106,RN105..DLX..ARL;LN111,13#,RN13#,YN106..DLX,STD GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-89101S4 |
LN106,RN105..GEN,V;LN106,RN105..DLX..ARL;LN13#,RN13#,YN106..ARL,GEN GRAY,TRIM1# |
1 | ||
| 55569-89101S4 |
RN105..DLX..ARL;LN106,RN105..GEN,V;LN106,13#,RN13#..DLX,SR5;LN107,111,RN106,110,VZN130,YN106..SR5,STD GRAY,TRIM1# |
1 | ||
| 55569-89101R9 |
LN106,RN105..GEN,V;LN106,RN105..DLX..ARL;LN107,111,13#,RN106,110,13#,VZN130,YN106 BLUE,TRIM8# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 55619D - COVER, CUP HOLDER HOLE | ||||
| 55619-89101 |
RN106..GEN;LN106,111,RN105,YN106..DLX,STD |
1 | ||
| 55619-89101 |
RN135;LN106,YN106..RHD..(DLX,STD);LN13#,RN105,130,YN135..(DLX,STD)..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90149-50032 | ||||
| 90151-40004 | ||||
| 90167-50028 | ||||
| 90168-50041 | ||||
| 90183-05094 | ||||
| 90189-05032 | ||||
| 90468-04157 | ||||
| 90468-05088 | ||||
| 93560-55016 | ||||
| 93567-14512 | ||||
| 93568-15014 | ||||
