RN105R-PRMDSQ (1988)

Toyota Hilux/4runner (4wd)

Production Aug 1988 - Aug 1997
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

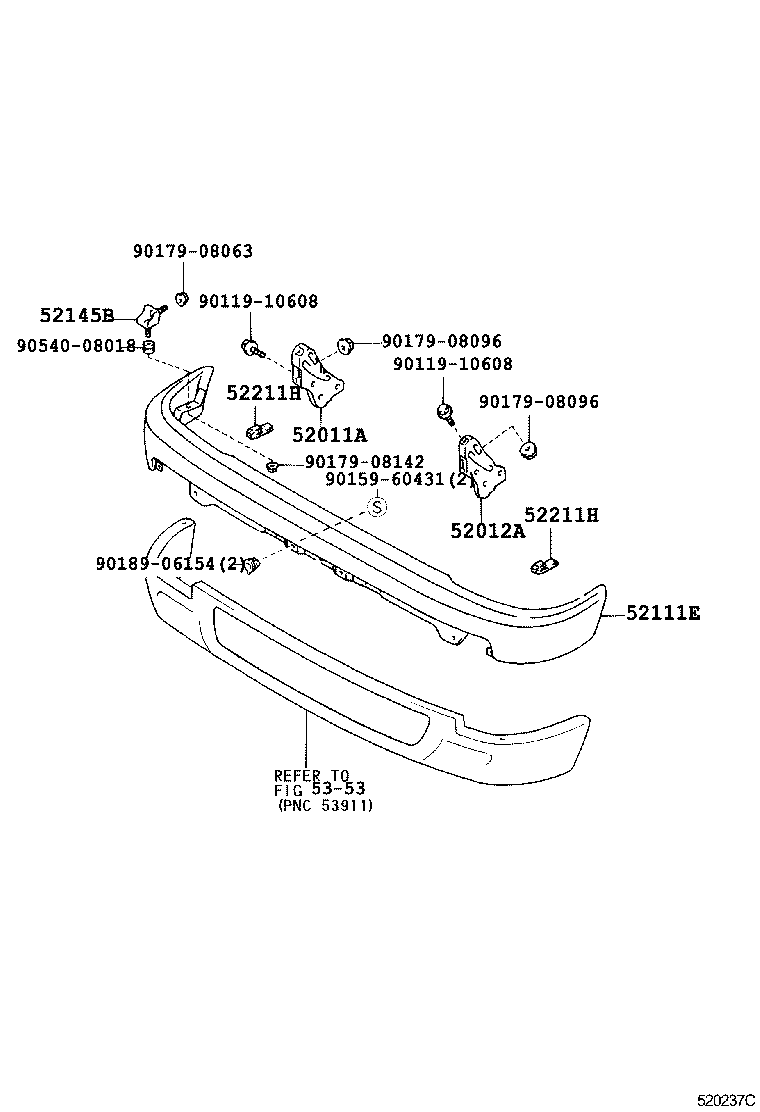

(9108-9511)LN13#,RN13#,VZN130 ; (0106- )

Click highlighted areas on diagram

diagram 52011A 52012A 52111E 52145B 52211H 52211H 5353 9011910608 9011910608 9015960431 9017908063 9017908096 9017908096 9017908142 9018906154 9054008018
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-89116

LN106,111,RN105,110,YN106

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-89116

LN106,111,RN105,110,YN106

 1
52111E - BAR, FRONT BUMPER
52101-89113

LN106,111,135,RN105,110,135,YN106,135

NO PAINT REQ.

 1
52101-89113

LN106,111,13#,RN105,110,130,VZN130,YN106,13#

NO PAINT REQ.

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
52211H - CUSHION(FOR FRONT BUMPER ARM)
52211-89101

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
52211H - CUSHION(FOR FRONT BUMPER ARM)
52211-89101

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
Common parts
90119-10608
90159-60431
90179-08063
90179-08096
90179-08142
90189-06154
90540-08018
Linked diagrams
5353

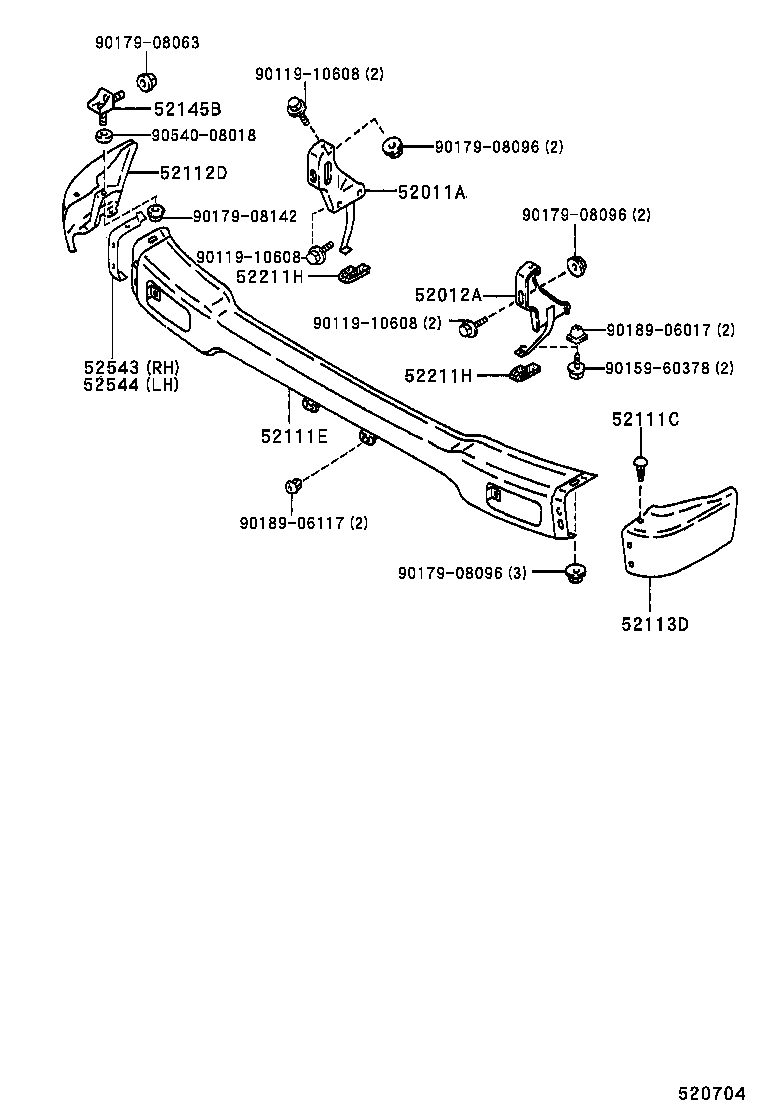

(8808-9108)

Click highlighted areas on diagram

diagram 52011A 52012A 52111C 52111E 52112D 52113D 52145B 52211H 52211H 52543 52544 9011910608 9011910608 9011910608 9015960378 9017908063 9017908096 9017908096 9017908096 9017908142 9018906017 9018906117 9054008018
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-89116

LN106,111,RN105,110,YN106

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-89116

LN106,111,RN105,110,YN106

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08070

LN106,111,135,RN105,110,135,YN106,135

 6
90112-08070

LN106,111,13#,RN105,110,130,VZN130,YN106,13#

 6
52111E - BAR, FRONT BUMPER
52101-89113

LN106,111,135,RN105,110,135,YN106,135

NO PAINT REQ.

 1
52101-89113

LN106,111,13#,RN105,110,130,VZN130,YN106,13#

NO PAINT REQ.

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-89112

LN106,111,RN105,110,YN106

NO PAINT REQ.

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-89112

LN106,111,RN105,110,YN106

NO PAINT REQ.

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
52211H - CUSHION(FOR FRONT BUMPER ARM)
52211-89101

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
52211H - CUSHION(FOR FRONT BUMPER ARM)
52211-89101

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-89101

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52544-89101

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

 1
Common parts
90119-10608
90159-60378
90179-08063
90179-08096
90179-08142
90189-06017
90189-06117
90540-08018
