LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)

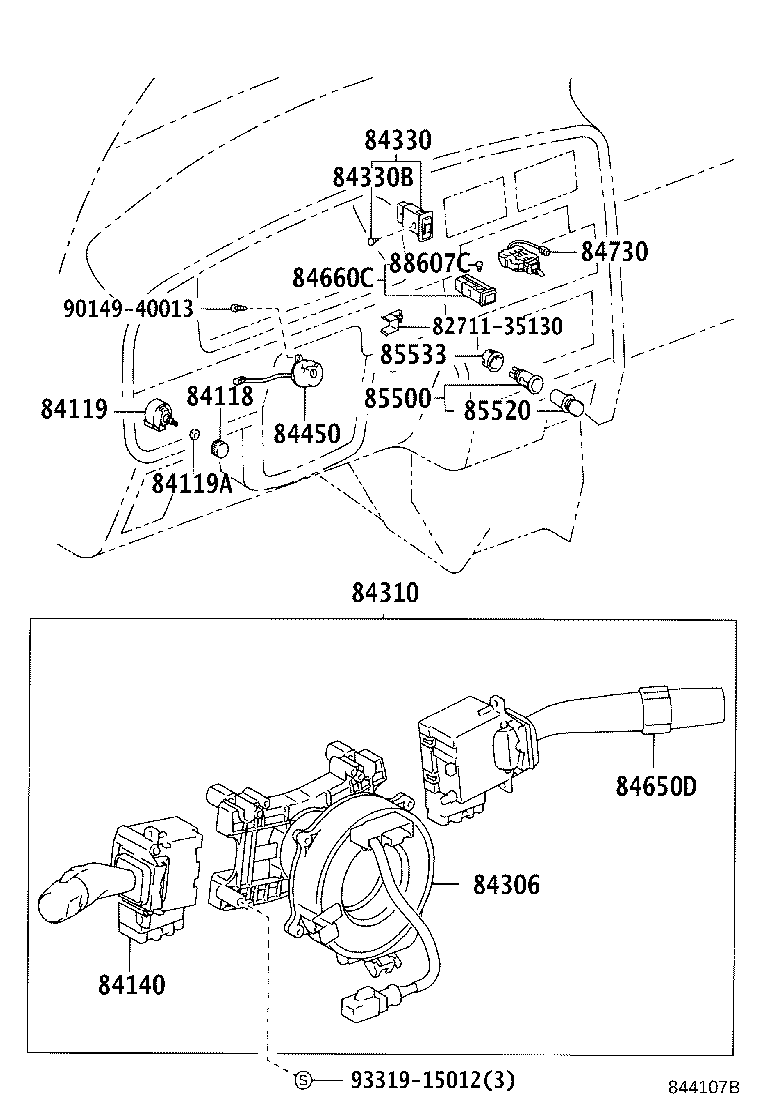

ILLUST NO. 2 OF 4(0106- )
INSTRUMENT PANEL & COMBINATION SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
KZN205,LN205 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
KZN205,LN205 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
KZN205,LN205 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-35100 |
KZN205,LN205..DLX,SR5 |
1 | ||
| 84140-44010 |
KZN205,LN205 W(ABS) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12070 |
KZN205,LN205 |
1 | ||
| 84306-35020 |
KZN205,LN205 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35470 |
KZN205,LN205..DLX,SR5 |
1 | ||
| 84310-35730 |
KZN205,LN205 W(ABS) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-89110 |
KZN205,LN205 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
KZN205,LN205 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-35130 |
KZN205,LN205 |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-1A630 |
KZN205,LN205 W(ABS) |
1 | ||
| 84652-35370 |
KZN205,LN205..DLX,SR5 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-35010 |
KZN205,LN205 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-35030 |
KZN205,LN205 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
KZN205,LN205 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
KZN205,LN205 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
KZN205,LN205 |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
KZN205,LN205 14V 0.065A |
1 | ||
| Common parts | ||||
| 82711-35130 | ||||
| 90149-40013 | ||||
| 93319-15012 | ||||

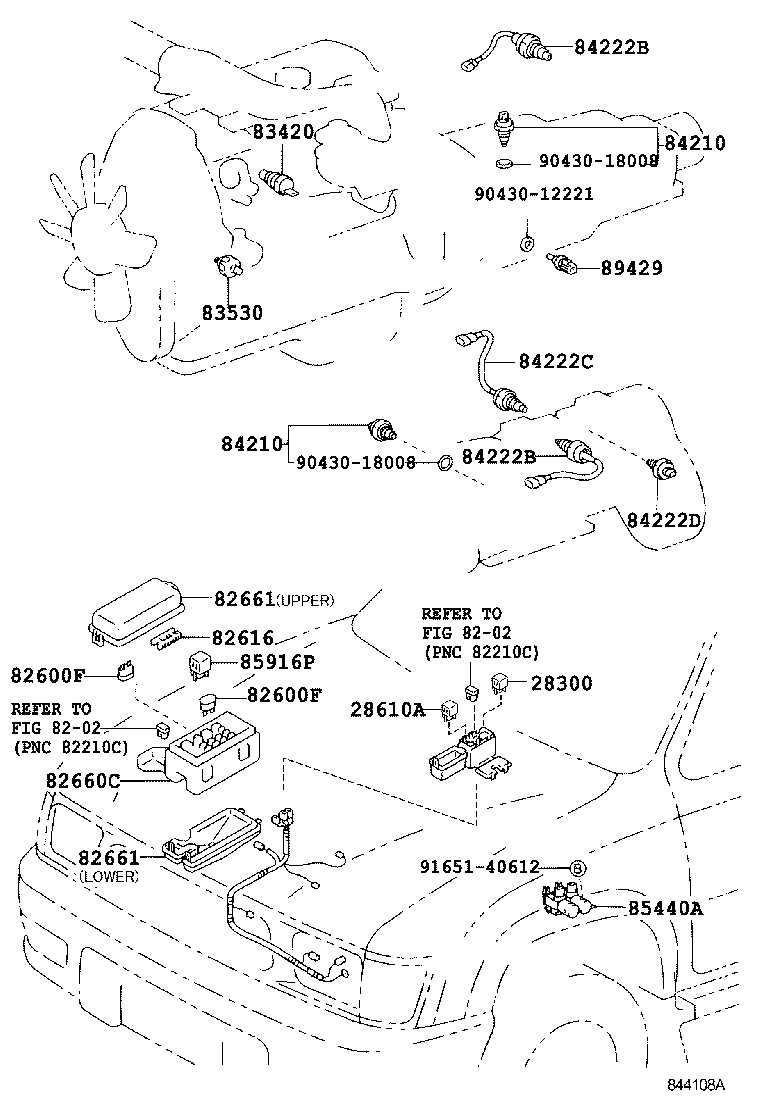

ILLUST NO. 1 OF 4(0106- )LN205
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-54360 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82015 |
LN205 7.5A,BROWN |
1 | ||
| 90982-09003 |
LN205 15A,(J) |
1 | ||
| 90080-82013 |
LN205 15A,BLUE,(L) |
1 | ||
| 90982-09002 |
LN205 10A |
1 | ||
| 90080-82012 |
LN205 10A,RED,(L) |
1 | ||
| 90982-09003 |
LN205 15A |
1 | ||
| 90982-09002 |
LN205 10A,(J) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82015 |
LN205 7.5A,BROWN |
1 | ||
| 90982-09003 |
LN205 15A,(J) |
1 | ||
| 90080-82013 |
LN205 15A,BLUE,(L) |
1 | ||
| 90982-09002 |
LN205 10A |
1 | ||
| 90080-82012 |
LN205 10A,RED,(L) |
1 | ||
| 90982-09003 |
LN205 15A |
1 | ||
| 90982-09002 |
LN205 10A,(J) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-89102 |
KZN205,LN205 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
LN205 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-3D030 |
LN205 |
1 | ||
| 82662-3D070 |
LN205 |
1 | ||
| 82663-35010 |
LN205 LOWER |
1 | ||
| 82662-3D070 |
LN205 UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-3D030 |
LN205 |
1 | ||
| 82662-3D070 |
LN205 |
1 | ||
| 82663-35010 |
LN205 LOWER |
1 | ||
| 82662-3D070 |
LN205 UPPER |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
LN205 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60030 |
LN205 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZN205,LN205 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZN205,LN205 |
1 | ||
| 84222B - SWITCH, TRANSFER INDICATOR, NO.2 | ||||
| 84222-35060 |
LN205..SR5 |
1 | ||
| 84222-35060 |
LN205 |
1 | ||
| 84222-35050 |
LN205..SR5 |
1 | ||
| 84222B - SWITCH, TRANSFER INDICATOR, NO.2 | ||||
| 84222-35060 |
LN205..SR5 |
1 | ||
| 84222-35060 |
LN205 |
1 | ||
| 84222-35050 |
LN205..SR5 |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-35080 |
LN205..SR5 |
1 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-35070 |
LN205..SR5 |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-35090 |
LN205..SR5 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KZN205,LN205 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-20010 |
LN205 |
1 | ||
| Common parts | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91651-40612 | ||||
ILLUST NO. 5 OF 5(0106- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-54360 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82015 |
LN205 7.5A,BROWN |
1 | ||
| 90982-09003 |
LN205 15A,(J) |
1 | ||
| 90080-82013 |
LN205 15A,BLUE,(L) |
1 | ||
| 90982-09002 |
LN205 10A |
1 | ||
| 90080-82012 |
LN205 10A,RED,(L) |
1 | ||
| 90982-09003 |
LN205 15A |
1 | ||
| 90982-09002 |
LN205 10A,(J) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-89102 |
KZN205,LN205 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-3D030 |
LN205 |
1 | ||
| 82662-3D070 |
LN205 |
1 | ||
| 82663-35010 |
LN205 LOWER |
1 | ||
| 82662-3D070 |
LN205 UPPER |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30100 |
KZN205,LN205 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KZN205,LN205 |
1 | ||

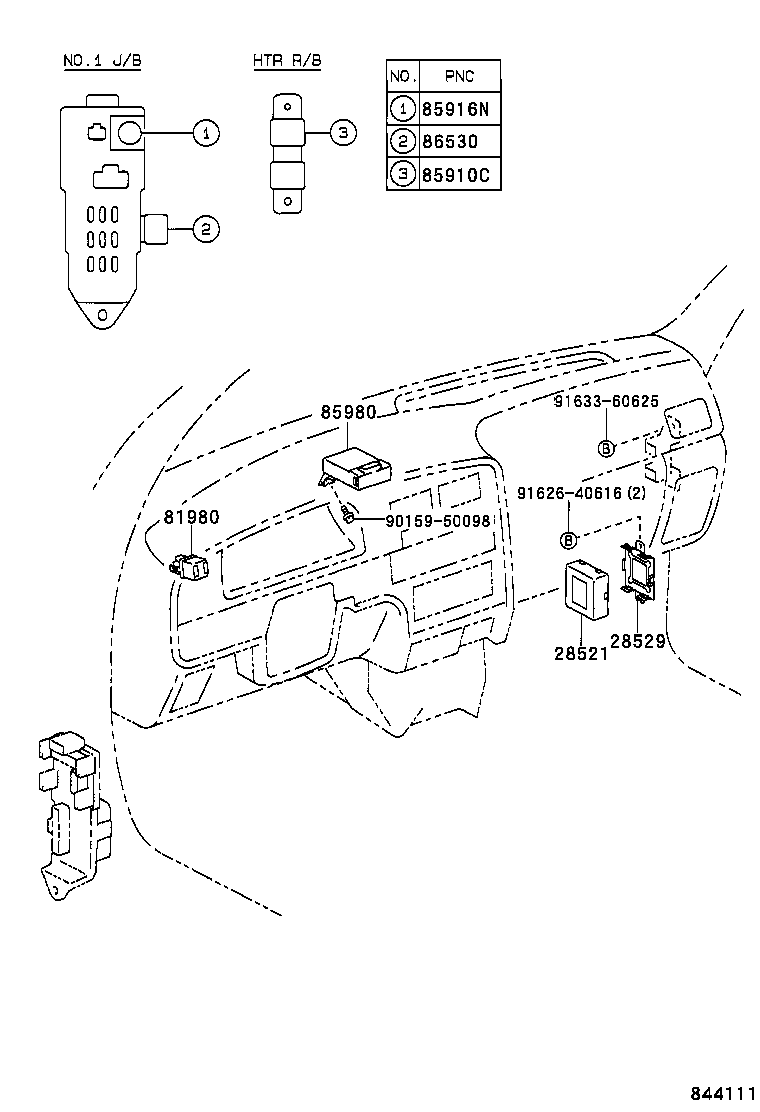

ILLUST NO. 3 OF 4(0106- )
INSTRUMENT PANEL & COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-54591 |
5L..LN205 |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-54380 |
5L..LN205 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-32010 |
KZN205,LN205 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KZN205,LN205 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-01003 |
KZN205,LN205 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-35010 |
KZN205,LN205..SR5,SRV |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
KZN205,LN205 |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 91626-40616 | ||||
| 91633-60625 | ||||
