LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
Production
Jun 2001
-
Dec 2004
Engine
5L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0106- )LN205

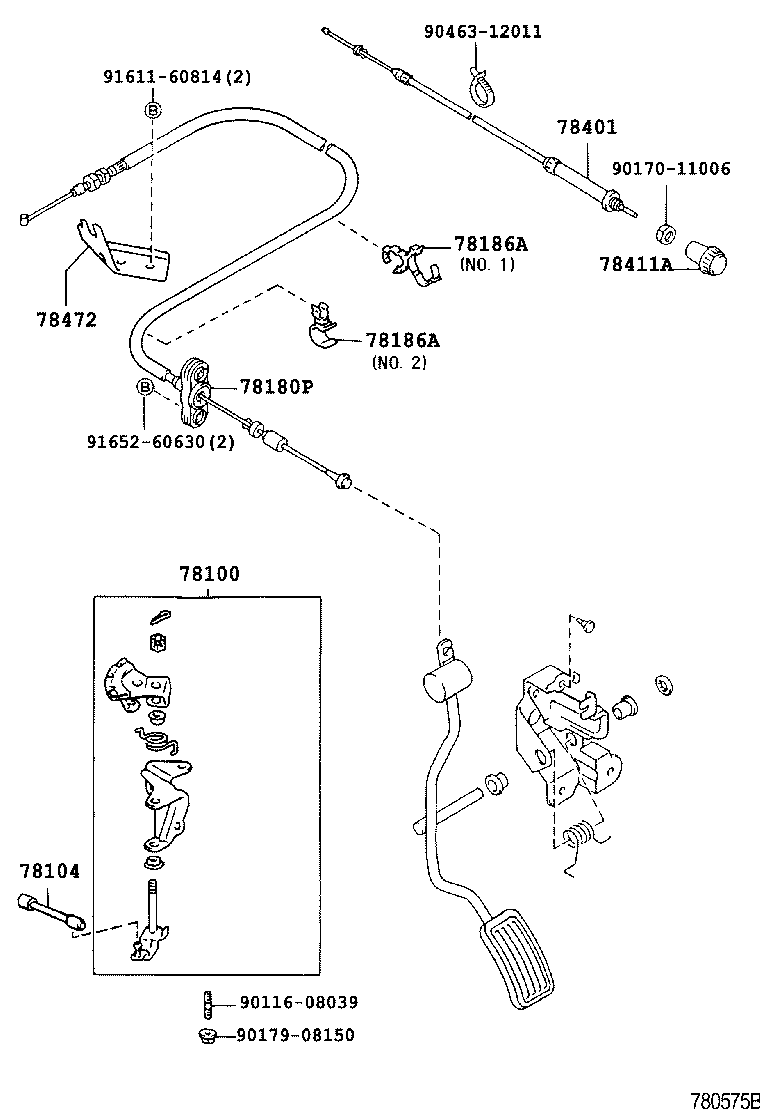

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-35071 |
LN205 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-22140 |
LN205 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-35480 |
LN205 |
1 | ||
| 78186A - CLAMP, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78186-35100 |
LN205 NO.2 |
1 | ||
| 78186-35070 |
LN205 NO.1 |
1 | ||
| 78186A - CLAMP, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78186-35100 |
LN205 NO.2 |
1 | ||
| 78186-35070 |
LN205 NO.1 |
1 | ||
| 78401 - CABLE SUB-ASSY, THROTTLE CONTROL | ||||
| 78401-89112 |
LN205 |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-89105 |
LN205 |
1 | ||
| 78472 - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-35010 |
LN205 |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90170-11006 | ||||
| 90179-08150 | ||||
| 90463-12011 | ||||
| 91611-60814 | ||||
| 91652-60630 | ||||
