LN205L-PRMSS (2001)

Toyota Hilux/4runner (4wd)

Production Jun 2001 - Dec 2004
Engine 5L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

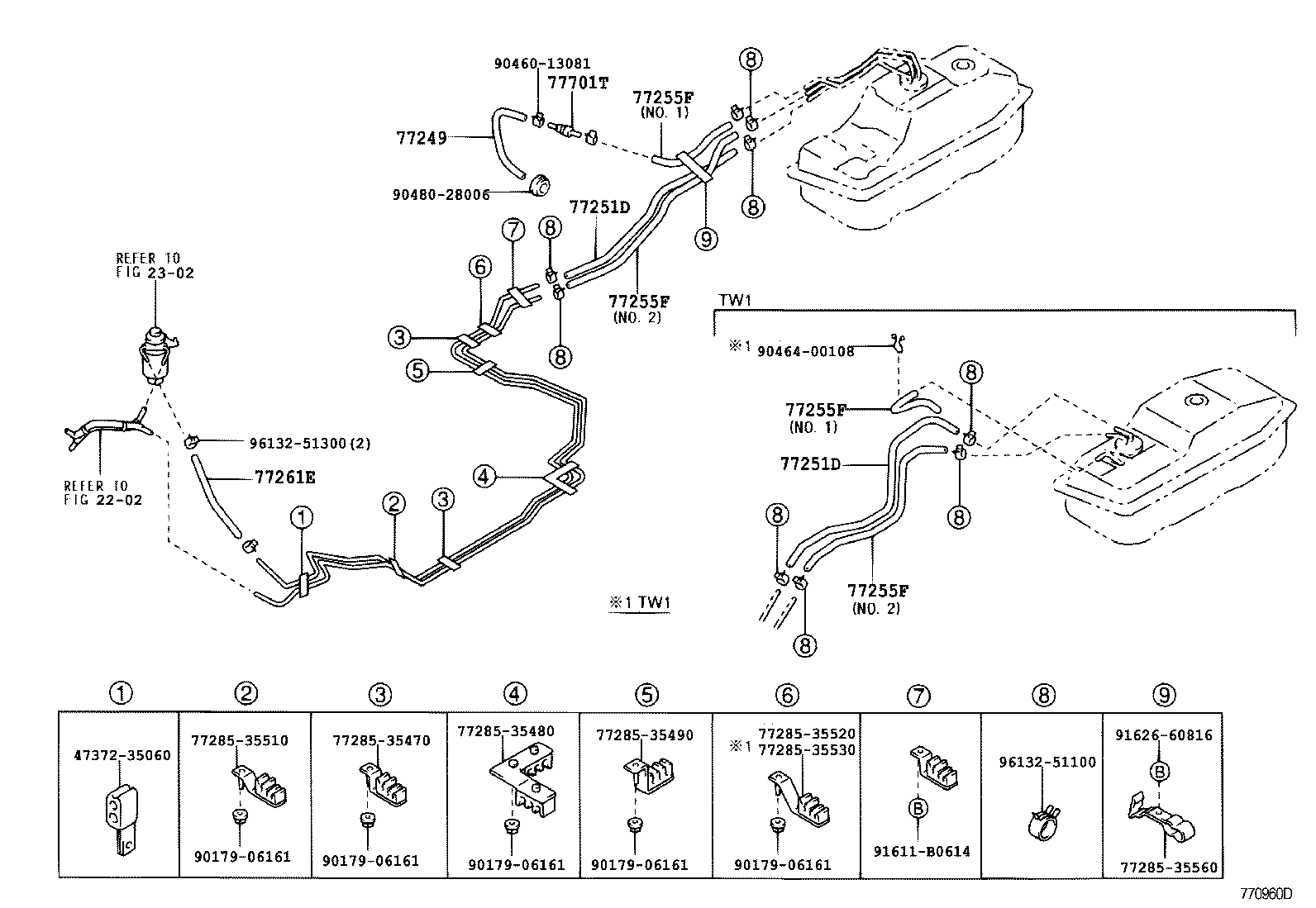

ILLUST NO. 2 OF 2(0106- )LN205

Click highlighted areas on diagram

diagram 2202 2302 4737235060 77249 77251D 77251D 77255F 77255F 77255F 77255F 77261E 7728535470 7728535480 7728535490 7728535510 7728535520 7728535530 7728535560 77701T 9017906161 9017906161 9017906161 9017906161 9017906161 9046013081 9046400108 9048028006 91611B0614 9162660816 9613251100 9613251300
Part # Description Qty Price
77249 - HOSE, FUEL EMISSION
77249-35140

KZN205,LN205

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77259-35360

KZN205,LN205..TW1

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77259-35360

KZN205,LN205..TW1

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77259-35370

KZN205,LN205..TW1

 1
95333-06020

KZN205,LN205..TW1

*H,L=200

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77259-35370

KZN205,LN205..TW1

 1
95333-06020

KZN205,LN205..TW1

*H,L=200

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77259-35370

KZN205,LN205..TW1

 1
95333-06020

KZN205,LN205..TW1

*H,L=200

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77259-35370

KZN205,LN205..TW1

 1
95333-06020

KZN205,LN205..TW1

*H,L=200

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-08030

LN205

*H,L=240,ID=7.6

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10091

KZN205,LN205

 1
Common parts
47372-35060
77285-35470
77285-35480
77285-35490
77285-35510
77285-35520
77285-35530
77285-35560
90179-06161
90460-13081
90464-00108
90480-28006
91611-B0614
91626-60816
96132-51100
96132-51300
Linked diagrams
2202
2302

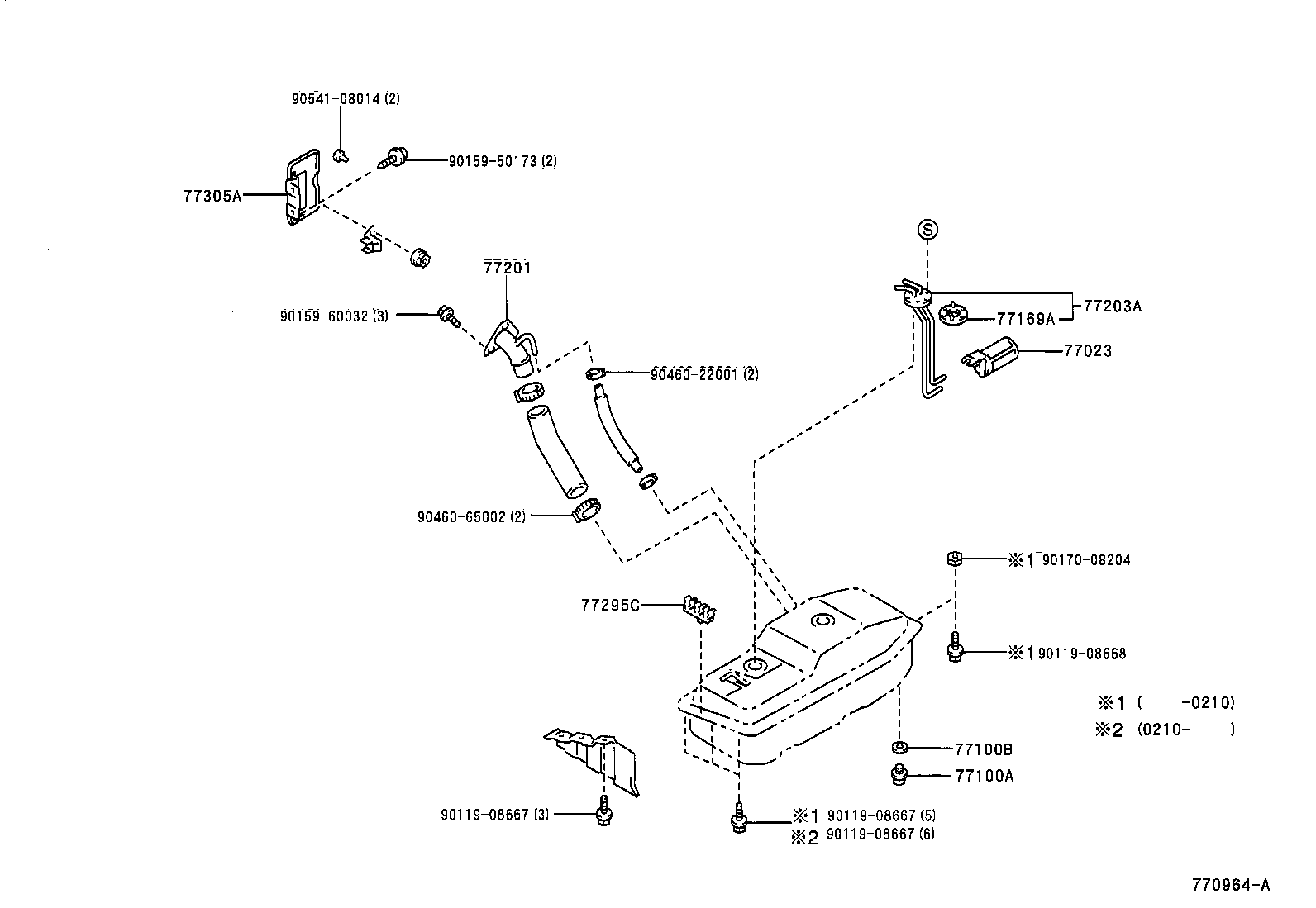

ILLUST NO. 1 OF 2(0106- )TW1

Click highlighted areas on diagram

diagram 77023 77100A 77100B 77169A 77201 77203A 77295C 77305A 9011908667 9011908667 9011908667 9011908668 9015950173 9015960032 9017008204 9046022001 9046065002 9054108014
Part # Description Qty Price
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-22040

KZN205,LN205

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

KZN205,LN205

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

KZN205,LN205

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020

KZN205,LN205

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35340

KZN205,LN205..TW1

 1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-35240

KZN205,LN205..TW1

 1
77295C - GROMMET, FUEL TUBE
77295-35270

KZN205,LN205..TW1

 1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-89107

KZN205,LN205..TW1

 1
Common parts
90119-08667
90119-08668
90159-50173
90159-60032
90170-08204
90460-22001
90460-65002
90541-08014
