LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
Production
Jun 2001
-
Dec 2004
Engine
5L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0106- )

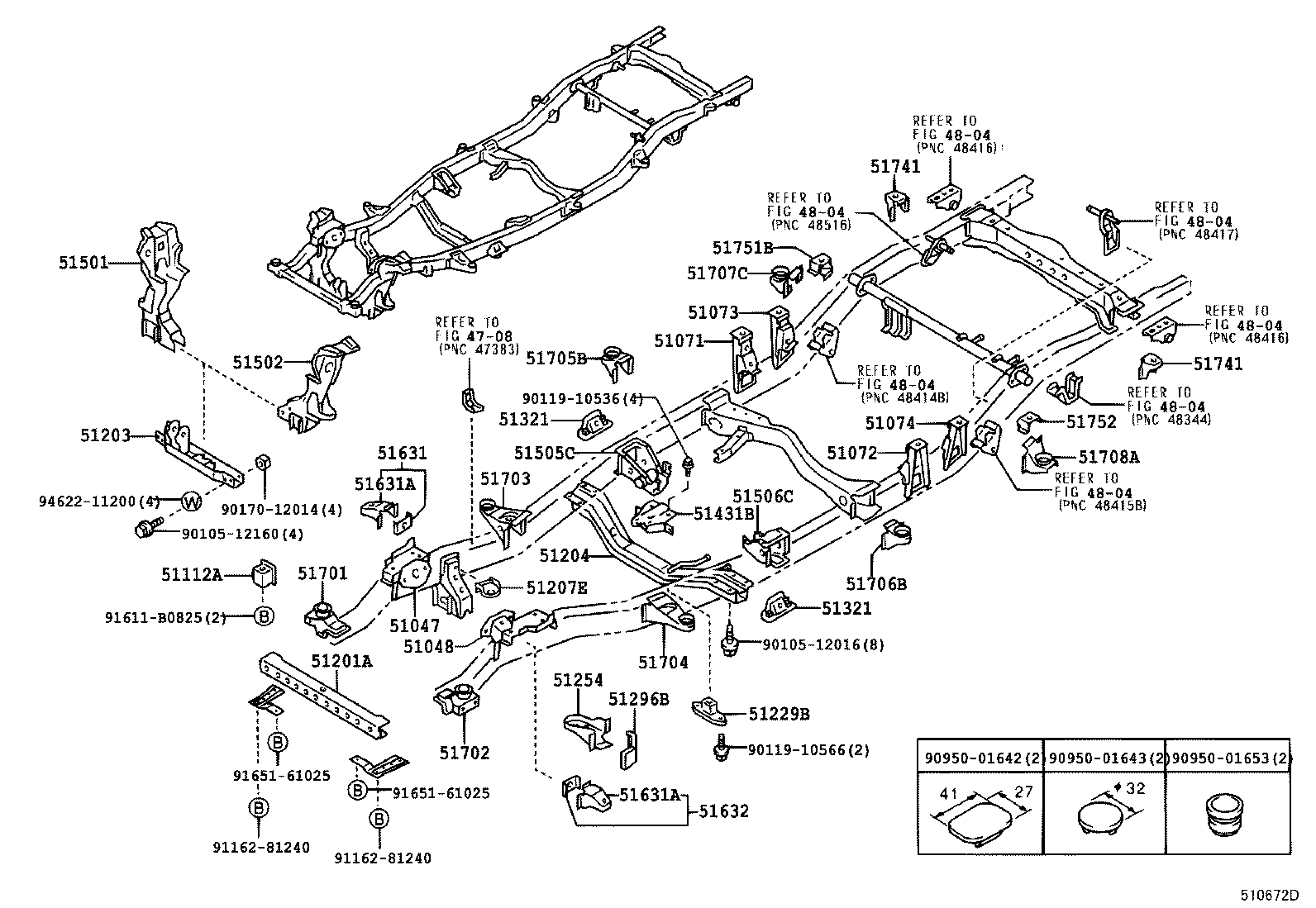

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51047 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH | ||||
| 51047-35070 |
LN205 |
1 | ||
| 51048 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH | ||||
| 51048-35070 |
LN205 |
1 | ||
| 51112A - EXTENSION, SIDE RAIL, RH | ||||
| 51112-35070 |
KZN205,LN205 |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-35320 |
KZN205,LN205 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51203-35270 |
KZN205,LN205 |
1 | ||
| 51207E - BRACKET SUB-ASSY, DIFFERENTIAL SUPPORT, RH | ||||
| 51207-35010 |
KZN205,LN205 |
1 | ||
| 51229B - DUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC | ||||
| 51229-35040 |
LN205 |
1 | ||
| 51254 - BRACKET, DIFFERENTIAL SUPPORT, LH | ||||
| 51254-35010 |
KZN205,LN205 |
1 | ||
| 51296B - REINFORCEMENT, DIFFERENTIAL BRACKET, LH | ||||
| 51296-35010 |
KZN205,LN205 |
1 | ||
| 51321 - GUSSET, CROSSMEMBER, NO.2 RH | ||||
| 51321-35050 |
KZN205,LN205 |
2 | ||
| 51321 - GUSSET, CROSSMEMBER, NO.2 RH | ||||
| 51321-35050 |
KZN205,LN205 |
2 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-35130 |
KZN205,LN205 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-35130 |
KZN205,LN205 |
1 | ||
| 51505C - SUPPORT SUB-ASSY, ANCHOR ARM, RH | ||||
| 51505-35090 |
KZN205,LN205 |
1 | ||
| 51506C - SUPPORT SUB-ASSY, ANCHOR ARM, LH | ||||
| 51506-35020 |
KZN205,LN205 |
1 | ||
| 51631 - STOPPER, FRONT SUSPENSION REBOUND, RH | ||||
| 51061-35010 |
KZN205,LN205 |
1 | ||
| 51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1 | ||||
| 51631-35040 |
KZN205,LN205 |
2 | ||
| 51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1 | ||||
| 51631-35040 |
KZN205,LN205 |
2 | ||
| 51632 - STOPPER, FRONT SUSPENSION REBOUND, LH | ||||
| 51061-35010 |
KZN205,LN205 |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-35130 |
KZN205,LN205 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51702-35110 |
KZN205,LN205 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-35090 |
KZN205,LN205 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-35110 |
KZN205,LN205 |
1 | ||
| 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH | ||||
| 51705-35090 |
KZN205,LN205 |
1 | ||
| 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH | ||||
| 51705-35090 |
KZN205,LN205 |
1 | ||
| 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH | ||||
| 51707-35030 |
KZN205,LN205..TW1 |
1 | ||
| 51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH | ||||
| 51708-35030 |
KZN205,LN205..TW1 |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
KZN205,LN205 |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
KZN205,LN205 |
2 | ||
| 51751B - BRACKET, BODY SUPPORT, NO.1 RH | ||||
| 51751-35070 |
KZN205,LN205..TW1 |
1 | ||
| 51752 - BRACKET, BODY SUPPORT, NO.1 LH | ||||
| 51752-35040 |
KZN205,LN205..TW1 |
1 | ||
| Common parts | ||||
| 90105-12016 | ||||
| 90105-12160 | ||||
| 90119-10536 | ||||
| 90119-10566 | ||||
| 90170-12014 | ||||
| 90950-01642 | ||||
| 90950-01643 | ||||
| 90950-01653 | ||||
| 91162-81240 | ||||
| 91611-B0825 | ||||
| 91651-61025 | ||||
| 94622-11200 | ||||
| Linked diagrams | ||||
| 4708 | ||||
| 4804 | ||||
