LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
Production
Jun 2001
-
Dec 2004
Engine
5L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

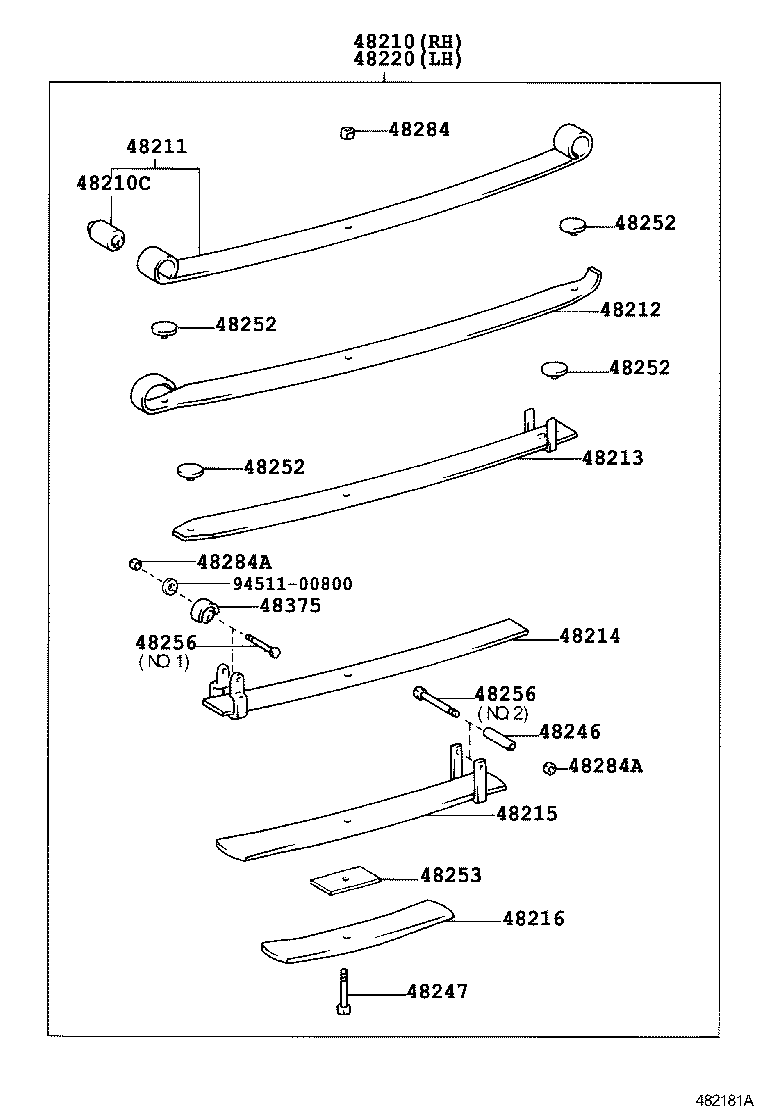

ILLUST NO. 2 OF 2(0106-0410)LN205
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35A10 |
LN205 6-LEAF |
1 | ||
| 48210-35881 |
LN205 6-LEAF |
1 | ||
| 48210-35882 |
LN205 6-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
LN205 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-35882 |
LN205 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35882 |
LN205 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35882 |
LN205 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-35882 |
LN205 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48204-35882 |
LN205 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-35882 |
LN205 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35A10 |
LN205 6-LEAF |
1 | ||
| 48210-35882 |
LN205 6-LEAF |
1 | ||
| 48210-35881 |
LN205 6-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LN205 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-27020 |
LN205 |
2 | ||
| 48247-36530 |
LN205 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN205 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN205 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN205 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN205 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3D180 |
LN205 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35360 |
LN205 NO.1 |
2 | ||
| 48256-36570 |
LN205 NO.2 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35360 |
LN205 NO.1 |
2 | ||
| 48256-36570 |
LN205 NO.2 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
LN205 |
2 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-20440 |
LN205 |
4 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-20440 |
LN205 |
4 | ||
| 48375 - DAMPER, LEAF SPRING DYNAMIC | ||||
| 48375-35011 |
LN205 |
2 | ||
| Common parts | ||||
| 94511-00800 | ||||

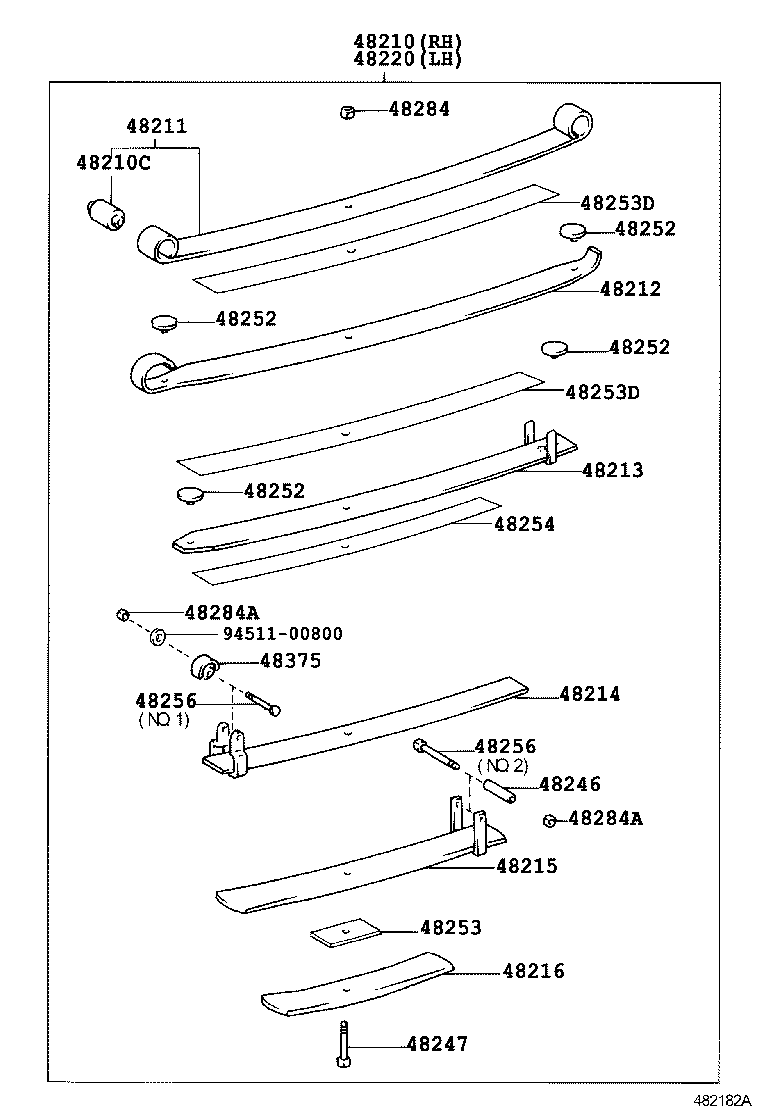

ILLUST NO. 2 OF 2(0410-0412)LN205
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35A10 |
LN205 6-LEAF |
1 | ||
| 48210-35881 |
LN205 6-LEAF |
1 | ||
| 48210-35882 |
LN205 6-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
LN205 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-35882 |
LN205 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35882 |
LN205 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35882 |
LN205 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-35882 |
LN205 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48204-35882 |
LN205 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-35882 |
LN205 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35A10 |
LN205 6-LEAF |
1 | ||
| 48210-35882 |
LN205 6-LEAF |
1 | ||
| 48210-35881 |
LN205 6-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LN205 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-27020 |
LN205 |
2 | ||
| 48247-36530 |
LN205 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN205 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN205 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN205 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN205 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3D180 |
LN205 |
2 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-35A10 |
LN205 |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-35A10 |
LN205 |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-35A10 |
LN205 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35360 |
LN205 NO.1 |
2 | ||
| 48256-36570 |
LN205 NO.2 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35360 |
LN205 NO.1 |
2 | ||
| 48256-36570 |
LN205 NO.2 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
LN205 |
2 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-20440 |
LN205 |
4 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-20440 |
LN205 |
4 | ||
| 48375 - DAMPER, LEAF SPRING DYNAMIC | ||||
| 48375-35011 |
LN205 |
2 | ||
| Common parts | ||||
| 94511-00800 | ||||
