LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
Production
Jun 2001
-
Dec 2004
Engine
5L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0106- )

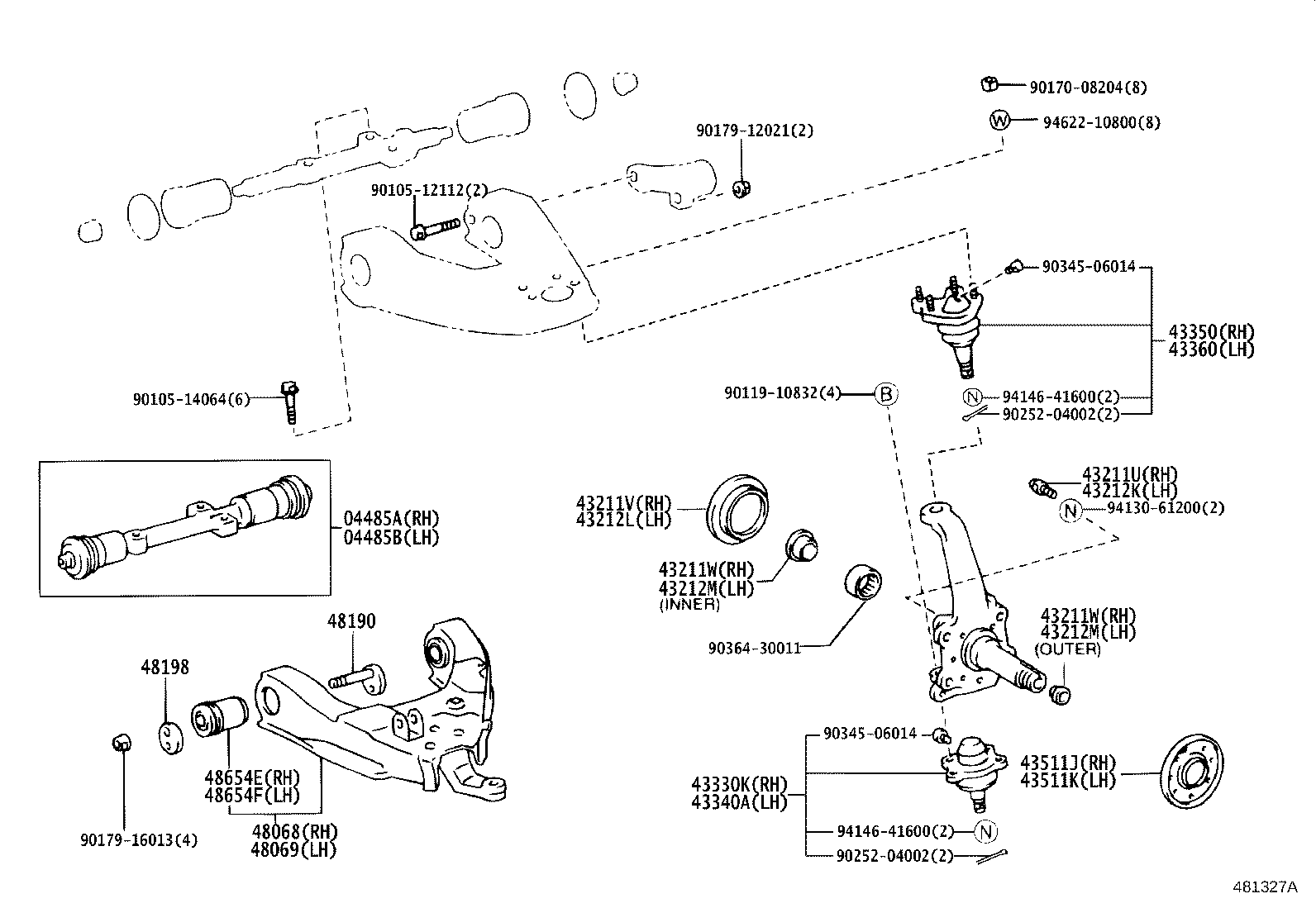

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485A - SHAFT KIT, FRONT SUSPENSION UPPER ARM, RH | ||||
| 04485-35040 |
KZN205,LN205 |
1 | ||
| 04485B - SHAFT KIT, FRONT SUSPENSION UPPER ARM, LH | ||||
| 04485-35040 |
KZN205,LN205 |
1 | ||
| 43211U - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE RH) | ||||
| 90106-12012 |
KZN205,LN205 |
1 | ||
| 43211V - SEAL, OIL (FOR STEERING KNUCKLE RH) | ||||
| 90316-60002 |
LN205 |
1 | ||
| 90316-60004 |
KZN205,LN205 |
1 | ||
| 43211W - BUSH (FOR STEERING KNUCKLE RH) | ||||
| 90381-30003 |
KZN205,LN205 OUTER |
1 | ||
| 90381-32001 |
KZN205,LN205 INNER |
1 | ||
| 43211W - BUSH (FOR STEERING KNUCKLE RH) | ||||
| 90381-30003 |
KZN205,LN205 OUTER |
1 | ||
| 90381-32001 |
KZN205,LN205 INNER |
1 | ||
| 43212K - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE LH) | ||||
| 90106-12012 |
KZN205,LN205 |
1 | ||
| 43212L - SEAL, OIL (FOR STEERING KNUCKLE LH) | ||||
| 90316-60004 |
KZN205,LN205 |
1 | ||
| 90316-60002 |
LN205 |
1 | ||
| 43212M - BUSH (FOR STEERING KNUCKLE LH) | ||||
| 90381-32001 |
KZN205,LN205 INNER |
1 | ||
| 90381-30003 |
KZN205,LN205 OUTER |
1 | ||
| 43212M - BUSH (FOR STEERING KNUCKLE LH) | ||||
| 90381-32001 |
KZN205,LN205 INNER |
1 | ||
| 90381-30003 |
KZN205,LN205 OUTER |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-39315 |
KZN205,LN205 |
1 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43350-39085 |
KZN205,LN205 |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43360-39085 |
KZN205,LN205 |
1 | ||
| 43360-39085 |
LN205 |
1 | ||
| 43511J - SEAL, DUST(FOR FRONT AXLE HUB RH) | ||||
| 90313-92001 |
KZN205,LN205..DLX,SR5 |
1 | ||
| 43511K - SEAL, DUST(FOR FRONT AXLE HUB LH) | ||||
| 90313-92001 |
KZN205,LN205..DLX,SR5 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-35090 |
KZN205,LN205 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-35090 |
KZN205,LN205 |
1 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-35020 |
KZN205,LN205 |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-35010 |
KZN205,LN205 |
4 | ||
| 48654E - BUSH, FRONT LOWER ARM, NO.1 RH | ||||
| 48061-35011 |
KZN205,LN205 |
2 | ||
| 48654F - BUSH, FRONT LOWER ARM, NO.1 LH | ||||
| 48061-35011 |
KZN205,LN205 |
2 | ||
| Common parts | ||||
| 90105-12112 | ||||
| 90105-14064 | ||||
| 90119-10832 | ||||
| 90170-08204 | ||||
| 90179-12021 | ||||
| 90179-16013 | ||||
| 90252-04002 | ||||
| 90345-06014 | ||||
| 90364-30011 | ||||
| 94130-61200 | ||||
| 94146-41600 | ||||
| 94622-10800 | ||||
