LN205L-PRMSS (2001)

Toyota Hilux/4runner (4wd)

Production Jun 2001 - Dec 2004
Engine 5L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

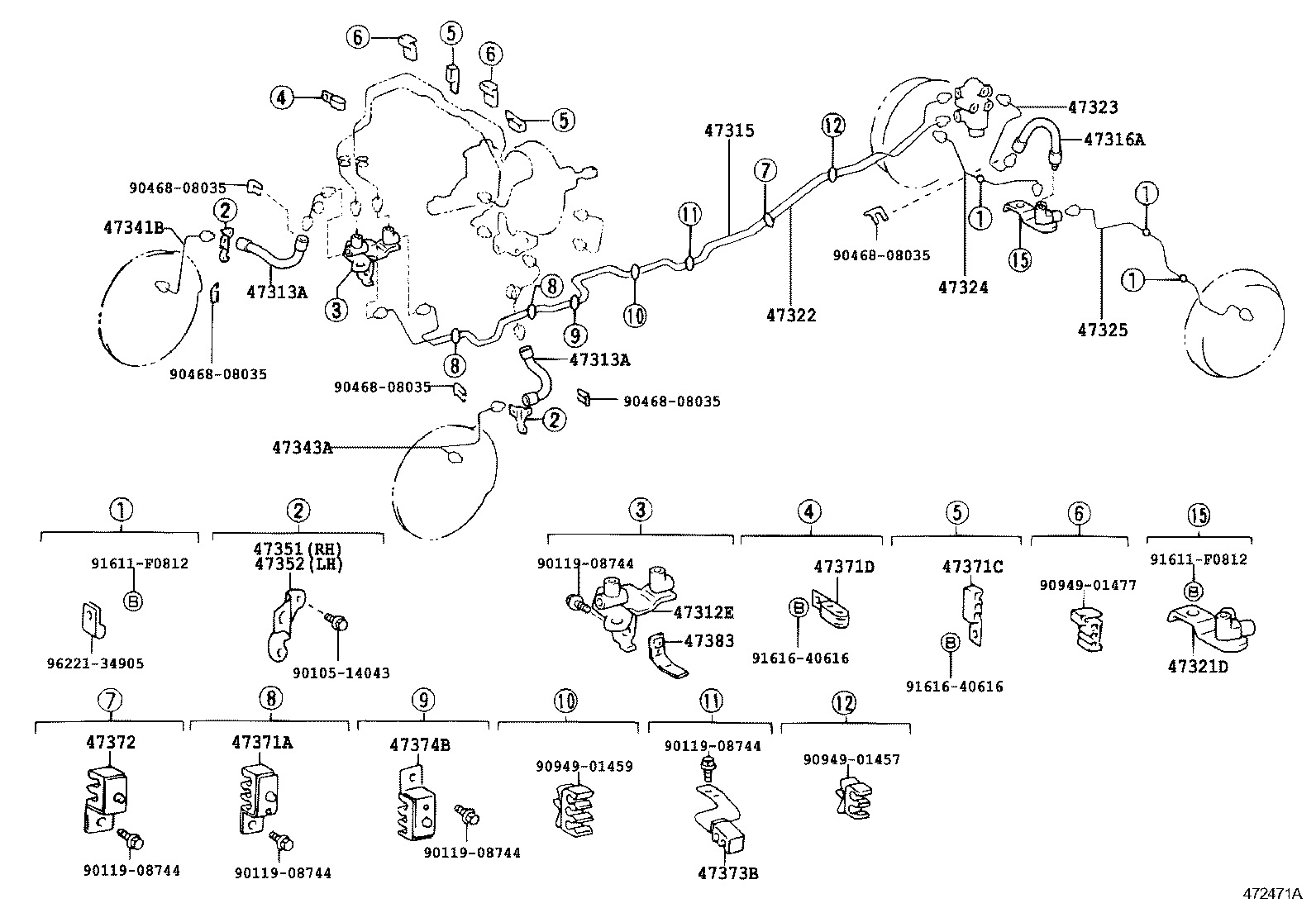

ILLUST NO. 1 OF 3(0106- )LN205

Click highlighted areas on diagram

diagram 47312E 47313A 47313A 47315 47316A 47321D 47322 47323 47324 47325 47341B 47343A 47351 47352 47371A 47371C 47371D 47372 47373B 47374B 47383 9010514043 9011908744 9011908744 9011908744 9011908744 9011908744 9046808035 9046808035 9046808035 9046808035 9046808035 9094901457 9094901459 9094901477 91611F0812 91611F0812 9161640616 9161640616 9622134905
Part # Description Qty Price
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10233

KZN205,LN205..DLX,SR5

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02957

KZN205,LN205

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02957

KZN205,LN205

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-35140

KZN205,LN205..DLX,SR5

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02958

KZN205,LN205

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90904-13036

KZN205,LN205

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35450

KZN205,LN205..DLX,SR5

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35190

KZN205,LN205

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35250

KZN205,LN205

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35290

KZN205,LN205

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-35170

KZN205,LN205

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-35170

KZN205,LN205

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35300

KZN205,LN205..DLX,SR5

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35350

KZN205,LN205..DLX,SR5

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35080

KZN205,LN205

NO.1

 2
47371C - CLAMP, BRAKE TUBE, NO.7
47371-35130

KZN205,LN205

 2
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080

KZN205,LN205

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35030

KZN205,LN205

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47372-35100

KZN205,LN205

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47373-35050

KZN205,LN205

 1
47383 - BRACKET, CONNECTOR
47383-35010

KZN205,LN205

 1
Common parts
90105-14043
90119-08744
90468-08035
90949-01457
90949-01459
90949-01477
91611-F0812
91616-40616
96221-34905
