LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
Production
Jun 2001
-
Dec 2004
Engine
5L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

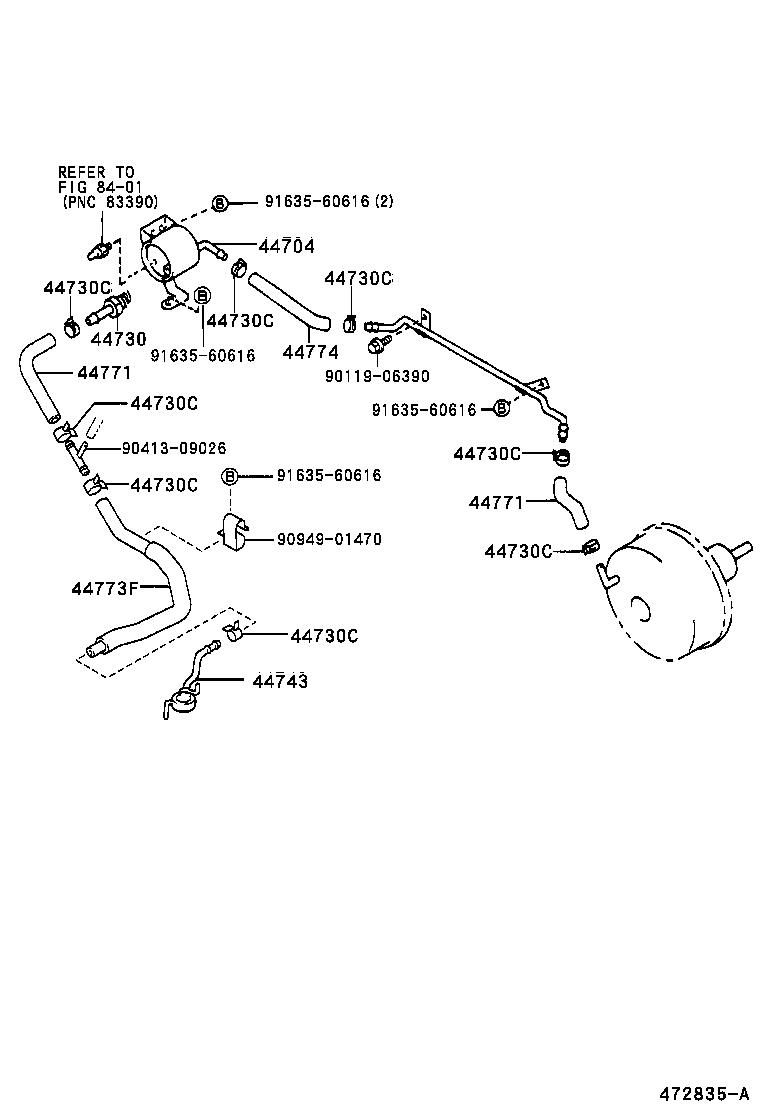

ILLUST NO. 2 OF 2(0108- )LN205..SR5
Click highlighted areas on diagram
W(A.D.D)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-35060 |
LN205 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
LN205 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KZN205,LN205 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KZN205,LN205 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KZN205,LN205 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KZN205,LN205 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KZN205,LN205 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KZN205,LN205 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KZN205,LN205 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KZN205,LN205 |
6 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90904-05011 |
LN205 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35230 |
LN205..SR5 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35230 |
LN205..SR5 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44774-35220 |
LN205..SR5 |
1 | ||
| 44773-35630 |
LN205 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 95446-09230 |
LN205..SR5 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90413-09026 | ||||
| 90949-01470 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
