LN205L-PRMSS (2001)

Toyota Hilux/4runner (4wd)

Production Jun 2001 - Dec 2004
Engine 5L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )

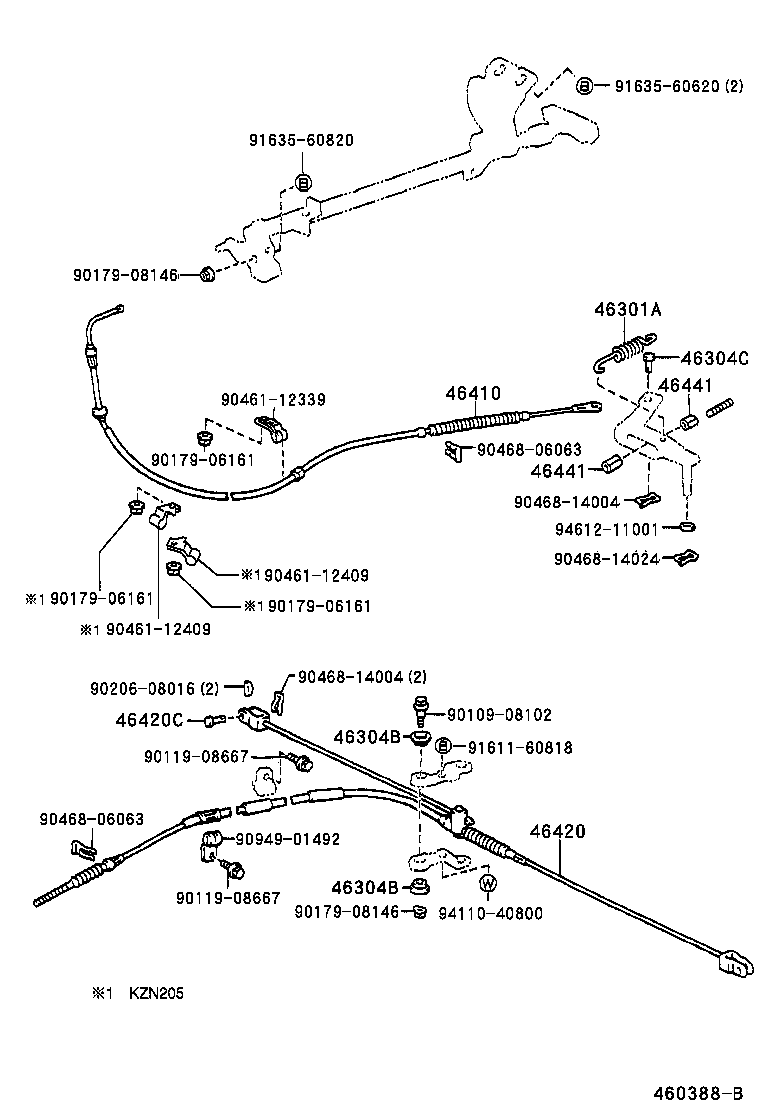

Click highlighted areas on diagram

diagram 46301A 46304B 46304B 46304C 46410 46420 46420C 46441 46441 9010908102 9011908667 9011908667 9017906161 9017906161 9017906161 9017908146 9017908146 9020608016 9046112339 9046112409 9046112409 9046806063 9046806063 9046814004 9046814004 9046814024 9094901492 9161160818 9163560620 9163560820 9411040800 9461211001
Part # Description Qty Price
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-25003

KZN205,LN205

 1
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

KZN205,LN205

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

KZN205,LN205

 2
46304C - PIN(FOR PARKING BRAKE EQUALIZER)
90240-08040

KZN205,LN205

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-3D030

LN205

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35720

KZN205,LN205

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08059

KZN205,LN205

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

KZN205,LN205

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

KZN205,LN205

 2
Common parts
90109-08102
90119-08667
90179-06161
90179-08146
90206-08016
90461-12339
90461-12409
90468-06063
90468-14004
90468-14024
90949-01492
91611-60818
91635-60620
91635-60820
94110-40800
94612-11001
