LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
Production
Jun 2001
-
Dec 2004
Engine
5L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

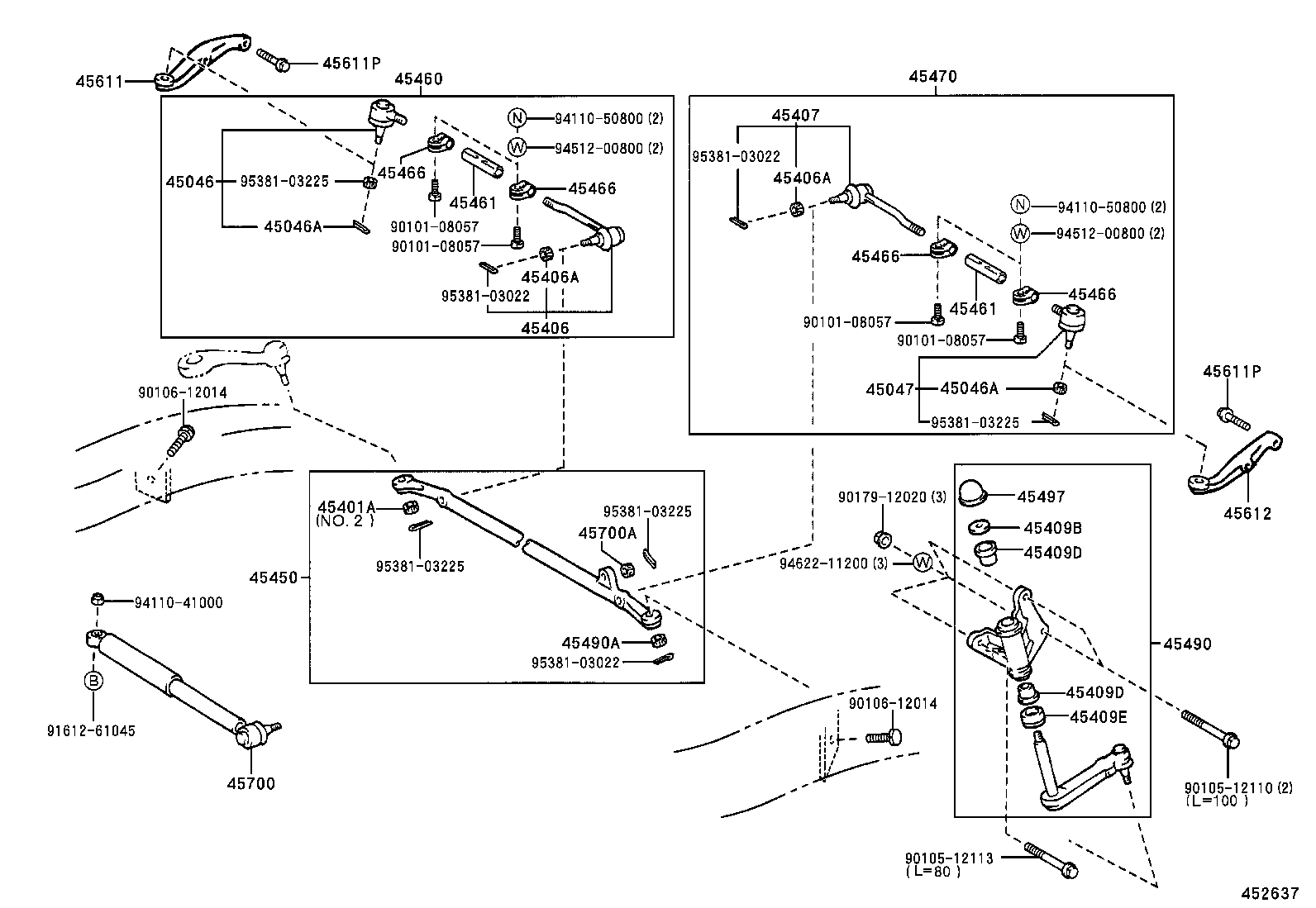

ILLUST NO. 1 OF 3(0106- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39385 |
KZN205,LN205 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
KZN205,LN205 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
KZN205,LN205 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39385 |
KZN205,LN205 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
KZN205,LN205 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39185 |
KZN205,LN205 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
KZN205,LN205 |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
KZN205,LN205 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39185 |
KZN205,LN205 |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14010 |
KZN205,LN205 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90389-21004 |
KZN205,LN205 |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90389-21004 |
KZN205,LN205 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
KZN205,LN205 |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45451-39605 |
KZN205,LN205 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39505 |
KZN205,LN205 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35040 |
KZN205,LN205 |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35040 |
KZN205,LN205 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
KZN205,LN205 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
KZN205,LN205 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
KZN205,LN205 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
KZN205,LN205 |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39505 |
KZN205,LN205 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39455 |
KZN205,LN205 |
1 | ||
| 45490-39456 |
KZN205,LN205 |
1 | ||
| 45490-39515 |
KZN205,LN205 |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
KZN205,LN205 |
1 | ||
| 45497 - CAP, IDLER ARM BRACKET | ||||
| 45497-28010 |
KZN205,LN205 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-35130 |
KZN205,LN205 |
1 | ||
| 45611P - BOLT(FOR STEERING KNUCKLE) | ||||
| 90105-14043 |
KZN205,LN205 |
4 | ||
| 45611P - BOLT(FOR STEERING KNUCKLE) | ||||
| 90105-14043 |
KZN205,LN205 |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-35150 |
KZN205,LN205 |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-39046 |
KZN205,LN205 |
1 | ||
| 45700-39085 |
KZN205,LN205 |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12028 |
KZN205,LN205 |
1 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90106-12014 | ||||
| 90179-12020 | ||||
| 91612-61045 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94622-11200 | ||||
| 95381-03022 | ||||
| 95381-03225 | ||||
