LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
Production
Jun 2001
-
Dec 2004
Engine
5L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0106- )LN205

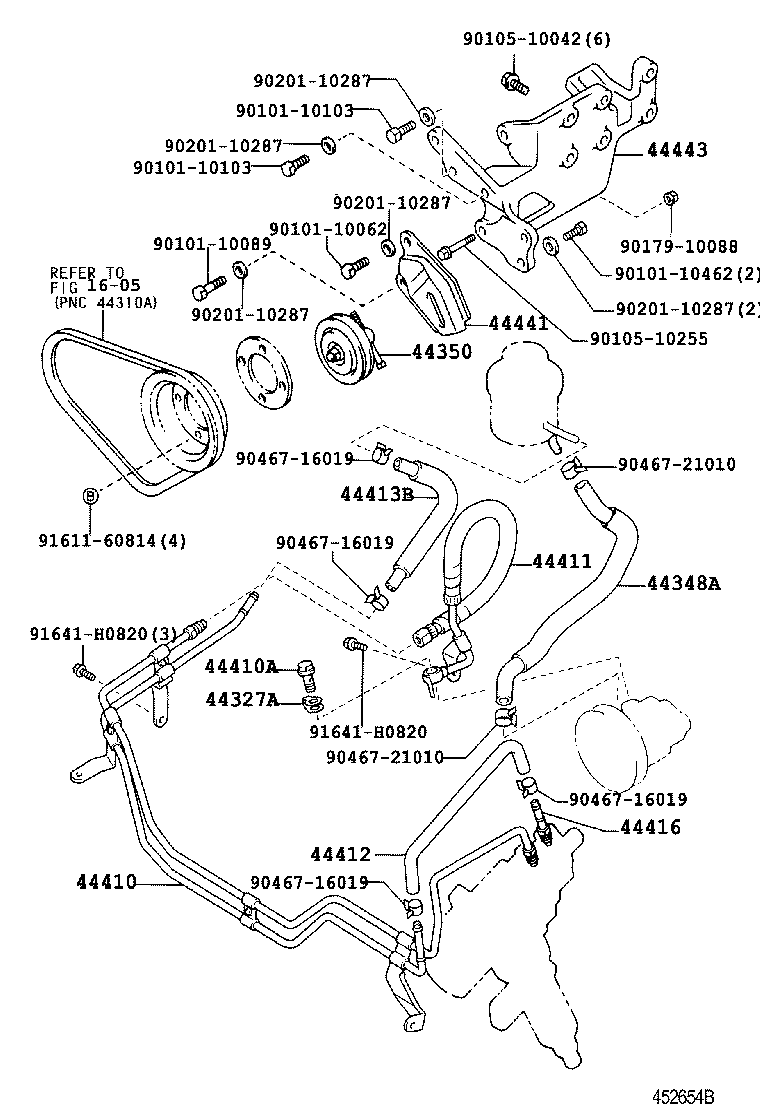

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26020 |
LN205 |
1 | ||
| 44327-30040 |
LN205 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-35230 |
LN205 |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-60020 |
LN205 |
1 | ||
| 44350-60021 |
LN205 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-35600 |
LN205 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16034 |
LN205 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35600 |
LN205 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-35100 |
LN205 |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 90447-18040 |
LN205 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35020 |
KZN205,LN205 |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-35040 |
LN205 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-35070 |
LN205 |
1 | ||
| Common parts | ||||
| 90101-10062 | ||||
| 90101-10089 | ||||
| 90101-10103 | ||||
| 90101-10462 | ||||
| 90105-10042 | ||||
| 90105-10255 | ||||
| 90179-10088 | ||||
| 90201-10287 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91611-60814 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 1605 | ||||
