LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
Production
Jun 2001
-
Dec 2004
Engine
5L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0106- )LN205

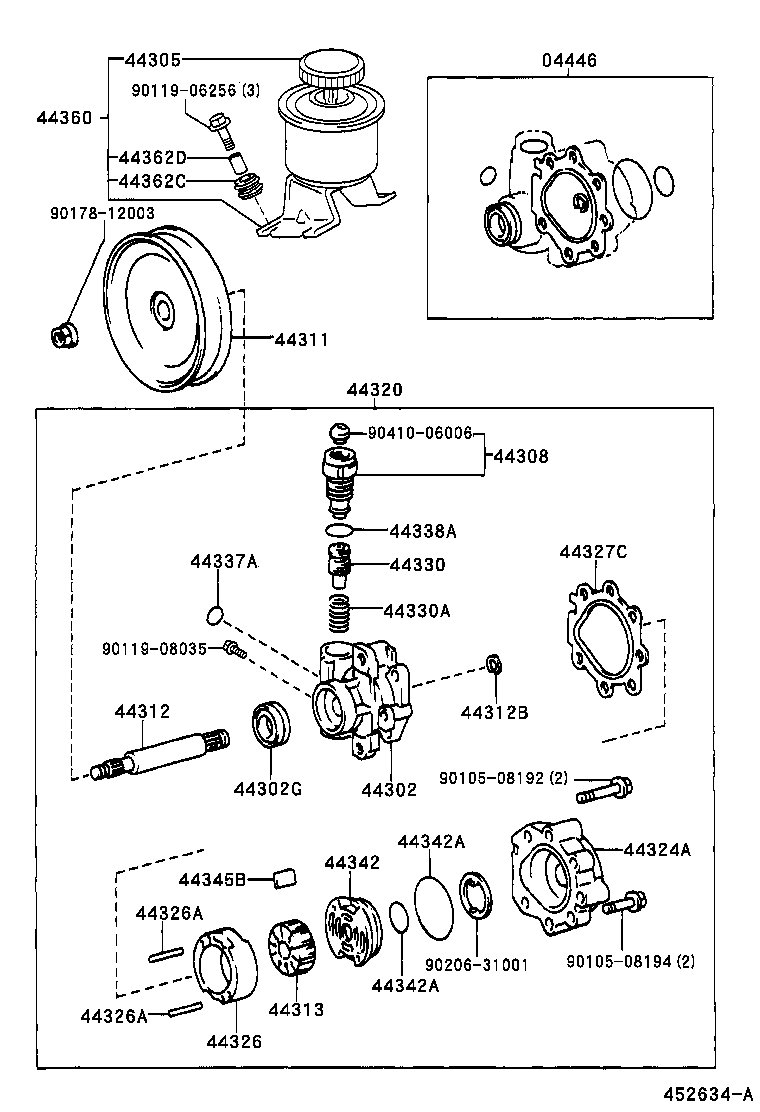

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-53030 |
LN205 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-35040 |
LN205 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18015 |
LN205 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-35010 |
LN205 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-26041 |
LN205 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-35050 |
LN205 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-32020 |
LN205 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
LN205 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26070 |
KZN205,LN205 MARK 1 |
1 | ||
| 44313-26090 |
KZN205,LN205 MARK 3 |
1 | ||
| 44313-26100 |
KZN205,LN205 MARK 4 |
1 | ||
| 44313-26060 |
KZN205,LN205 NO MARK |
1 | ||
| 44313-26080 |
KZN205,LN205 MARK 2 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-35570 |
LN205 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-34010 |
LN205 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-32290 |
LN205 MARK 2 |
1 | ||
| 44325-32280 |
LN205 MARK 1 |
1 | ||
| 44325-32300 |
LN205 MARK 3 |
1 | ||
| 44325-32270 |
LN205 NO MARK |
1 | ||
| 44325-32310 |
LN205 MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04071 |
LN205 L=23.3,OD=4.0 |
2 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04071 |
LN205 L=23.3,OD=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-26010 |
LN205 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-26091 |
LN205 MARK C |
1 | ||
| 44330-26081 |
LN205 MARK B |
1 | ||
| 44330-26071 |
LN205 MARK A |
1 | ||
| 44330-26121 |
LN205 MARK F |
1 | ||
| 44330-26101 |
LN205 MARK D |
1 | ||
| 44330-26111 |
LN205 MARK E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-13034 |
LN205 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
LN205 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19018 |
LN205 ID=19.2,OD=22.3 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-26020 |
LN205 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-18007 |
LN205 INNER |
1 | ||
| 90301-47001 |
LN205 OUTER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-18007 |
LN205 INNER |
1 | ||
| 90301-47001 |
LN205 OUTER |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-26010 |
LN205 L=15.000 |
10 | ||
| 44345-26040 |
LN205 L=14.994 |
10 | ||
| 44345-26030 |
LN205 L=14.996 |
10 | ||
| 44345-26020 |
LN205 L=14.998 |
10 | ||
| 44345-26050 |
LN205 L=14.992 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-35180 |
LN205 |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09020 |
LN205 |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
LN205 |
3 | ||
| Common parts | ||||
| 90105-08192 | ||||
| 90105-08194 | ||||
| 90119-06256 | ||||
| 90119-08035 | ||||
| 90178-12003 | ||||
| 90206-31001 | ||||
| 90410-06006 | ||||
