Toyota Hilux/4runner (4wd) LN205 STEERING COLUMN & SHAFT

LN205L-PRMSS (2001)

Toyota Hilux/4runner (4wd)

Production Jun 2001 - Dec 2004

Engine 5L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0106- )LN205

Click highlighted areas on diagram

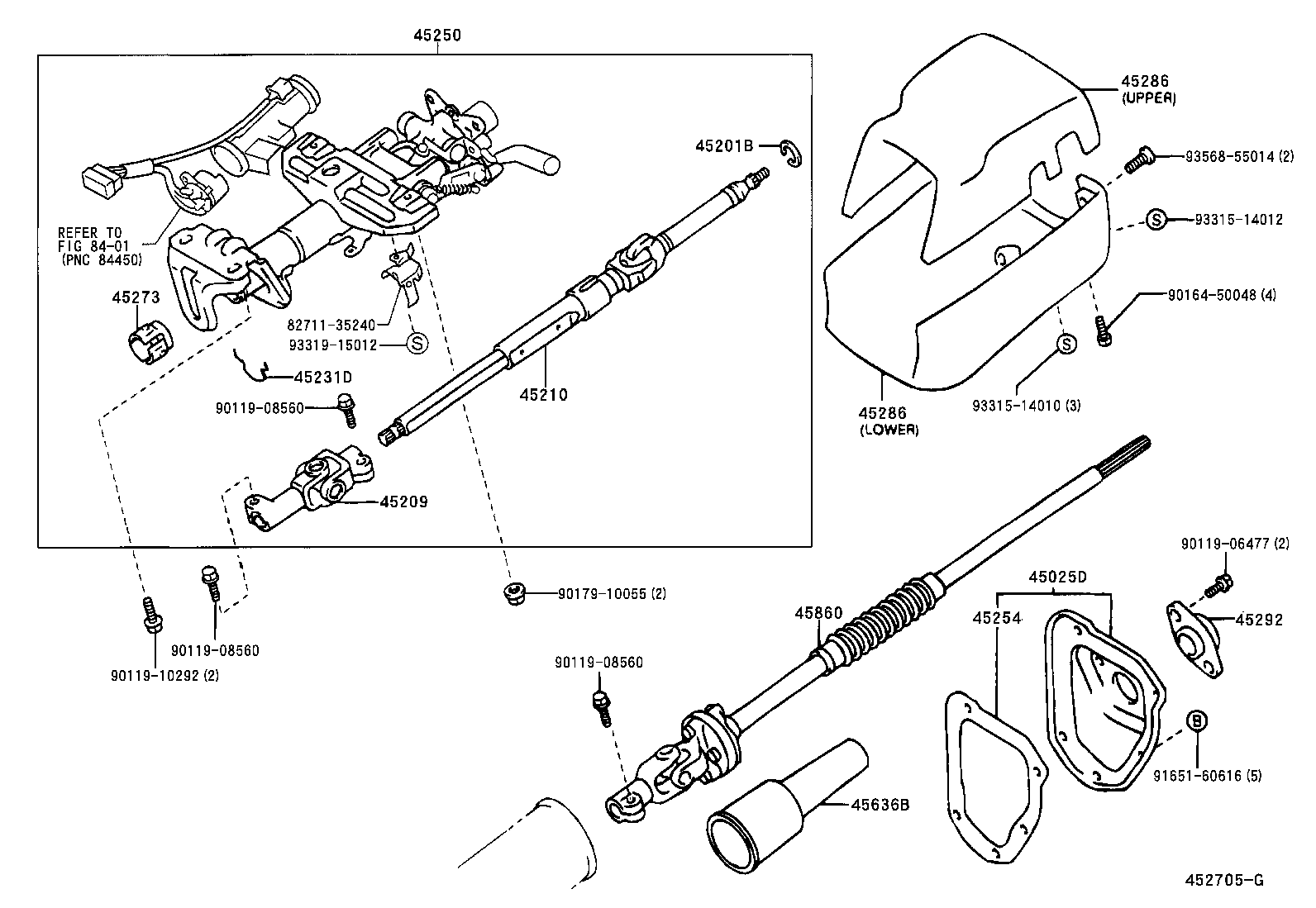

TILT STEERING

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-35200	KZN205,LN205	06/2001 - 12/2999	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	LN205 T=1.20,UPPER	06/2001 - 08/2001	1
90520-17042	LN205 T=1.20,LOWER	06/2001 - 08/2001	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-35030	KZN205,LN205	06/2001 - 12/2999	1
45210 - SHAFT ASSY, STEERING MAIN
45210-35170	LN205 W(*80,DRIVER SIDE)	06/2001 - 12/2999	1
45210-35160	LN205	06/2001 - 08/2001	1
45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT)
90521-01005	KZN205,LN205	06/2001 - 12/2999	1
45250 - COLUMN ASSY, STEERING
45250-3D510	LN205..TW1 W(RIGID STEERING)	06/2001 - 08/2001	1
45250-3D840	LN205 W(TILT STEERING & AIR BACK SYSTEM)	06/2001 - 12/2004	1
45250-3D520	KZN205,LN205..TW1..(DLX,SR5) W(TILT STEERING)	08/2001 - 12/2004	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-35110	KZN205,LN205	06/2001 - 12/2999	1
45273 - BUSH, STEERING MAIN SHAFT
45273-16010	KZN205,LN205	06/2001 - 12/2999	1
45286 - COVER, STEERING COLUMN
45286-04020	KZN205,LN205..SR5 UPPER	08/2001 - 11/2001	1
45287-35360B0	LN205 W/O(*80),MD.GRAY,TRIM1#,LOWER	06/2001 - 12/2004	1
45287-04020	KZN205,LN205..SR5 LOWER	08/2001 - 11/2001	1
45286-35470B0	LN205 W/O(*80),MD.GRAY,TRIM1#,UPPER	06/2001 - 12/2004	1
45287-04020B0	LN205..SR5 MEDIUM GRAY,TRIM1#,LOWER	11/2001 - 12/2004	1
45286-04020B0	LN205..SR5 MEDIUM GRAY,TRIM1#,UPPER	11/2001 - 12/2004	1
45286 - COVER, STEERING COLUMN
45286-04020	KZN205,LN205..SR5 UPPER	08/2001 - 11/2001	1
45287-35360B0	LN205 W/O(*80),MD.GRAY,TRIM1#,LOWER	06/2001 - 12/2004	1
45287-04020	KZN205,LN205..SR5 LOWER	08/2001 - 11/2001	1
45286-35470B0	LN205 W/O(*80),MD.GRAY,TRIM1#,UPPER	06/2001 - 12/2004	1
45287-04020B0	LN205..SR5 MEDIUM GRAY,TRIM1#,LOWER	11/2001 - 12/2004	1
45286-04020B0	LN205..SR5 MEDIUM GRAY,TRIM1#,UPPER	11/2001 - 12/2004	1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-35050	KZN205,LN205	06/2001 - 12/2999	1
45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45860-35270	LN205	06/2001 - 12/2999	1
Common parts
82711-35240
90119-06477
90119-08560
90119-10292
90164-50048
90179-10055
91651-60616
93315-14010
93315-14012
93319-15012
93568-55014
Linked diagrams
8401

(0106- )LN205

Click highlighted areas on diagram

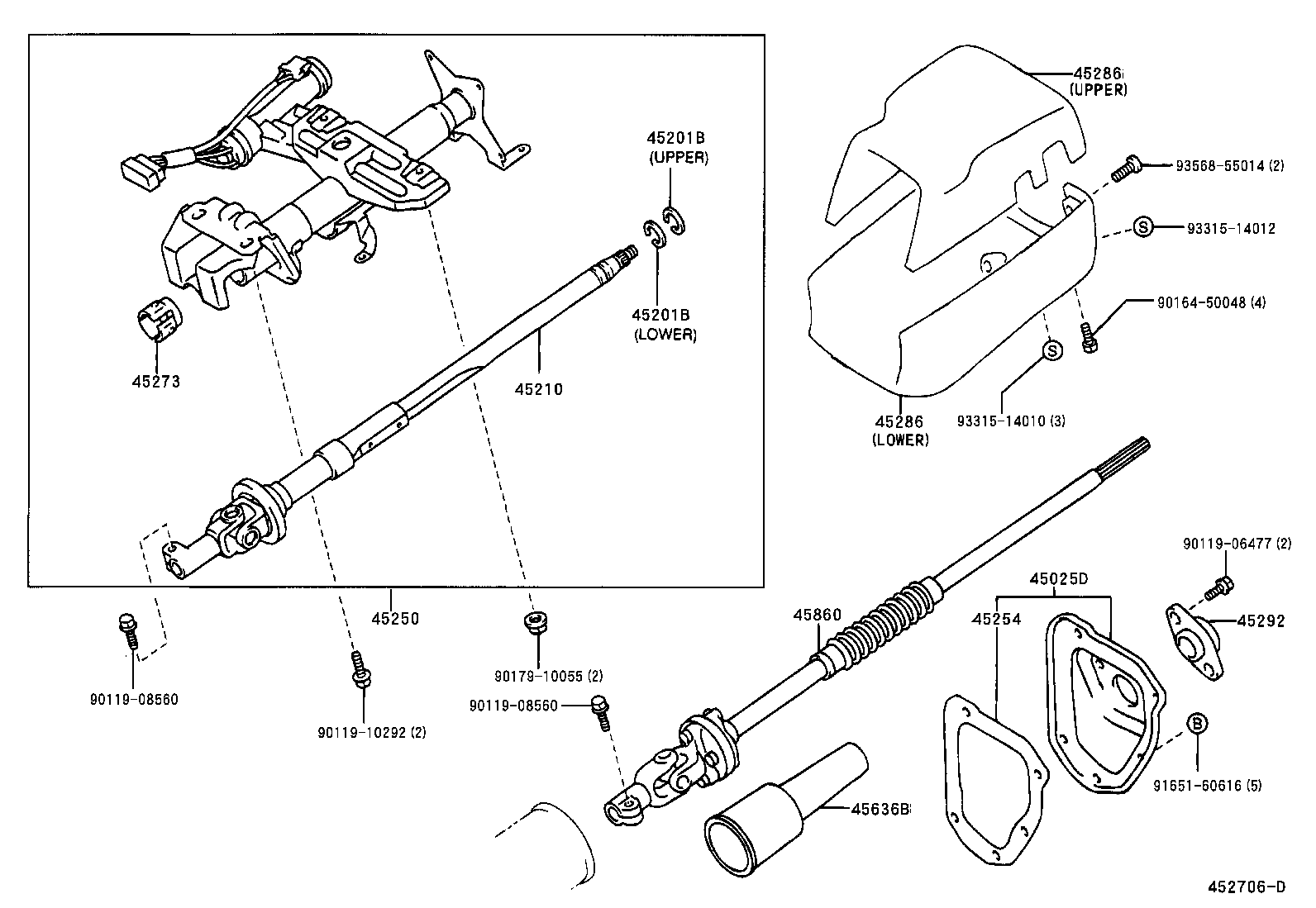

RIGID STEERING

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-35200	KZN205,LN205	06/2001 - 12/2999	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	LN205 T=1.20,UPPER	06/2001 - 08/2001	1
90520-17042	LN205 T=1.20,LOWER	06/2001 - 08/2001	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	LN205 T=1.20,UPPER	06/2001 - 08/2001	1
90520-17042	LN205 T=1.20,LOWER	06/2001 - 08/2001	1
45210 - SHAFT ASSY, STEERING MAIN
45210-35170	LN205 W(*80,DRIVER SIDE)	06/2001 - 12/2999	1
45210-35160	LN205	06/2001 - 08/2001	1
45250 - COLUMN ASSY, STEERING
45250-3D510	LN205..TW1 W(RIGID STEERING)	06/2001 - 08/2001	1
45250-3D840	LN205 W(TILT STEERING & AIR BACK SYSTEM)	06/2001 - 12/2004	1
45250-3D520	KZN205,LN205..TW1..(DLX,SR5) W(TILT STEERING)	08/2001 - 12/2004	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-35110	KZN205,LN205	06/2001 - 12/2999	1
45273 - BUSH, STEERING MAIN SHAFT
45273-16010	KZN205,LN205	06/2001 - 12/2999	1
45286 - COVER, STEERING COLUMN
45286-04020	KZN205,LN205..SR5 UPPER	08/2001 - 11/2001	1
45287-35360B0	LN205 W/O(*80),MD.GRAY,TRIM1#,LOWER	06/2001 - 12/2004	1
45287-04020	KZN205,LN205..SR5 LOWER	08/2001 - 11/2001	1
45286-35470B0	LN205 W/O(*80),MD.GRAY,TRIM1#,UPPER	06/2001 - 12/2004	1
45287-04020B0	LN205..SR5 MEDIUM GRAY,TRIM1#,LOWER	11/2001 - 12/2004	1
45286-04020B0	LN205..SR5 MEDIUM GRAY,TRIM1#,UPPER	11/2001 - 12/2004	1
45286 - COVER, STEERING COLUMN
45286-04020	KZN205,LN205..SR5 UPPER	08/2001 - 11/2001	1
45287-35360B0	LN205 W/O(*80),MD.GRAY,TRIM1#,LOWER	06/2001 - 12/2004	1
45287-04020	KZN205,LN205..SR5 LOWER	08/2001 - 11/2001	1
45286-35470B0	LN205 W/O(*80),MD.GRAY,TRIM1#,UPPER	06/2001 - 12/2004	1
45287-04020B0	LN205..SR5 MEDIUM GRAY,TRIM1#,LOWER	11/2001 - 12/2004	1
45286-04020B0	LN205..SR5 MEDIUM GRAY,TRIM1#,UPPER	11/2001 - 12/2004	1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-35050	KZN205,LN205	06/2001 - 12/2999	1
45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45860-35270	LN205	06/2001 - 12/2999	1
Common parts
90119-06477
90119-08560
90119-10292
90164-50048
90179-10055
91651-60616
93315-14010
93315-14012
93568-55014
