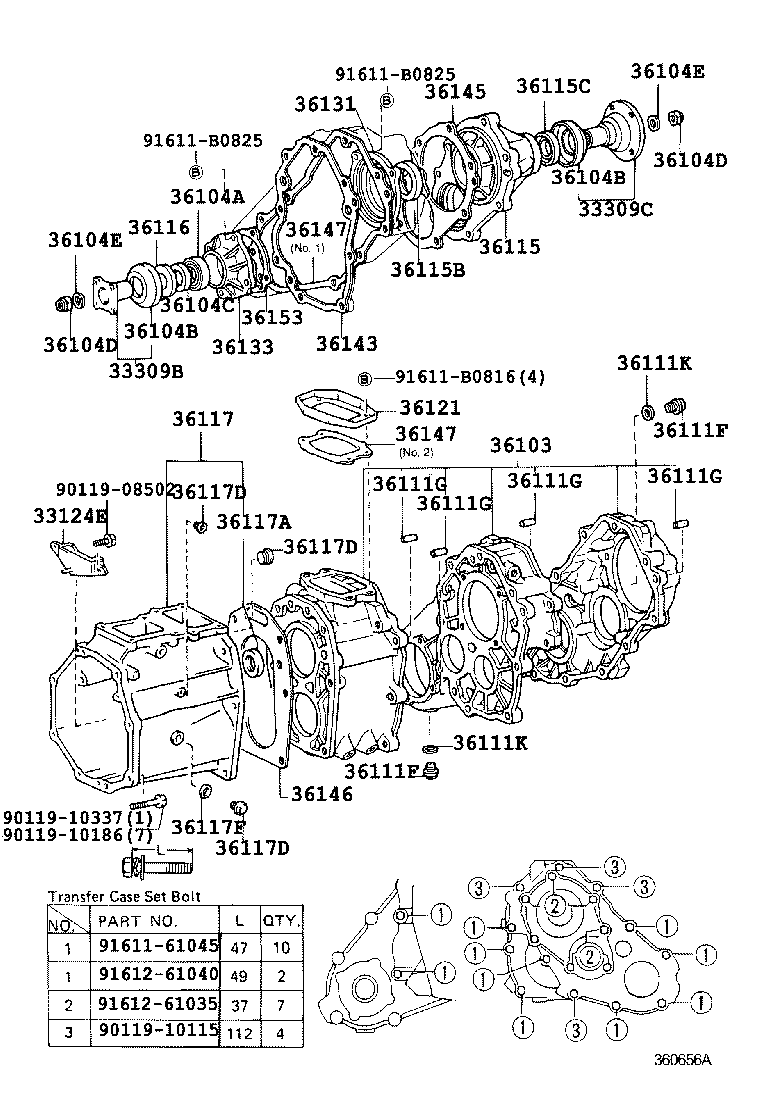

LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
(0106-0202)LN205 ; (0202- )DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-36010 |
LN205..SR5 NO.2 |
1 | ||
| 33124-35070 |
LN205..SR5 NO.1 |
1 | ||
| 33124-35020 |
LN205..SR5 |
1 | ||
| 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35061 |
LN205..SR5 |
1 | ||
| 33309-35030 |
LN205..SR5 |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35040 |
LN205..SR5 |
1 | ||
| 33309-35100 |
LN205..SR5 |
1 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-35014 |
LN205..SR5 |
1 | ||
| 36104A - SEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90311-38016 |
LN205..SR5 |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-35020 |
LN205..SR5 |
2 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-35020 |
LN205..SR5 |
2 | ||
| 36104C - SEAL, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90303-38010 |
LN205..SR5 |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20001 |
LN205..SR5 |
2 | ||
| 90179-22016 |
LN205..SR5 |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20001 |
LN205..SR5 |
2 | ||
| 90179-22016 |
LN205..SR5 |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-20005 |
LN205..SR5 |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-20005 |
LN205..SR5 |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LN205..SR5 FILLER |
1 | ||
| 90341-18057 |
LN205..SR5 DRAIN |
1 | ||
| 90341-18006 |
LN205..SR5 |
4 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LN205..SR5 FILLER |
1 | ||
| 90341-18057 |
LN205..SR5 DRAIN |
1 | ||
| 90341-18006 |
LN205..SR5 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN205..SR5 L=15,OD=8 |
4 | ||
| 90250-10214 |
LN205..SR5 L=14,OD=10 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN205..SR5 L=15,OD=8 |
4 | ||
| 90250-10214 |
LN205..SR5 L=14,OD=10 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN205..SR5 L=15,OD=8 |
4 | ||
| 90250-10214 |
LN205..SR5 L=14,OD=10 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN205..SR5 L=15,OD=8 |
4 | ||
| 90250-10214 |
LN205..SR5 L=14,OD=10 |
2 | ||
| 36111K - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LN205..SR5 |
2 | ||
| 36111K - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LN205..SR5 |
2 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-35040 |
LN205..SR5 |
1 | ||
| 36115-35010 |
LN205..SR5 |
1 | ||
| 36115B - SEAL, TYPE V OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90312-48001 |
LN205..SR5 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38140 |
LN205..SR5 |
1 | ||
| 90311-41007 |
LN205..SR5 |
1 | ||
| 36116 - RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL | ||||
| 33145-30010 |
LN205..SR5 |
1 | ||
| 36117 - ADAPTER, TRANSFER | ||||
| 36107-35092 |
LN205..SR5 |
1 | ||
| 36107-35100 |
LN205..SR5 |
1 | ||
| 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90311-32009 |
LN205..SR5 |
1 | ||
| 90311-40023 |
LN205..SR5 |
1 | ||
| 36117D - PLUG(FOR TRANSFER ADAPTER) | ||||
| 90341-18006 |
LN205..SR5 FILLER |
1 | ||
| 90930-03085 |
LN205..SR5 |
1 | ||
| 90341-30003 |
LN205..SR5 DRAIN |
1 | ||
| 36117D - PLUG(FOR TRANSFER ADAPTER) | ||||
| 90341-18006 |
LN205..SR5 FILLER |
1 | ||
| 90930-03085 |
LN205..SR5 |
1 | ||
| 90341-30003 |
LN205..SR5 DRAIN |
1 | ||
| 36117D - PLUG(FOR TRANSFER ADAPTER) | ||||
| 90341-18006 |
LN205..SR5 FILLER |
1 | ||
| 90930-03085 |
LN205..SR5 |
1 | ||
| 90341-30003 |
LN205..SR5 DRAIN |
1 | ||
| 36117F - GASKET(FOR TRANSFER ADAPTER PLUG) | ||||
| 90430-18008 |
LN205..SR5 |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36102-35040 |
LN205..SR5 |
1 | ||
| 36121-35010 |
LN205..SR5 |
1 | ||
| 36131 - RETAINER, TRANSFER OUTPUT SHAFT FRONT BEARING | ||||
| 36131-35010 |
LN205..SR5 |
1 | ||
| 36133 - RETAINER, TRANSFER FRONT DRIVE GEAR BEARING | ||||
| 36133-35010 |
LN205..SR5 |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-35010 |
LN205..SR5 |
1 | ||
| 36145 - GASKET, TRANSFER EXTENSION HOUSING | ||||
| 36145-35010 |
LN205..SR5 |
1 | ||
| 36146 - GASKET, TRANSFER REDUCTION CASE | ||||
| 36146-35021 |
LN205..SR5 |
1 | ||
| 36147 - GASKET, TRANSFER CASE | ||||
| 36147-35010 |
LN205..SR5 NO.2 |
1 | ||
| 36141-35010 |
LN205..SR5 NO.1 |
1 | ||
| 36147 - GASKET, TRANSFER CASE | ||||
| 36147-35010 |
LN205..SR5 NO.2 |
1 | ||
| 36141-35010 |
LN205..SR5 NO.1 |
1 | ||
| 36153 - GASKET, FRONT DRIVE GEAR BEARING RETAINER | ||||
| 36153-35010 |
LN205..SR5 |
1 | ||
| Common parts | ||||
| 90119-08502 | ||||
| 90119-10115 | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
| 91611-61045 | ||||
| 91611-B0816 | ||||
| 91611-B0825 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||

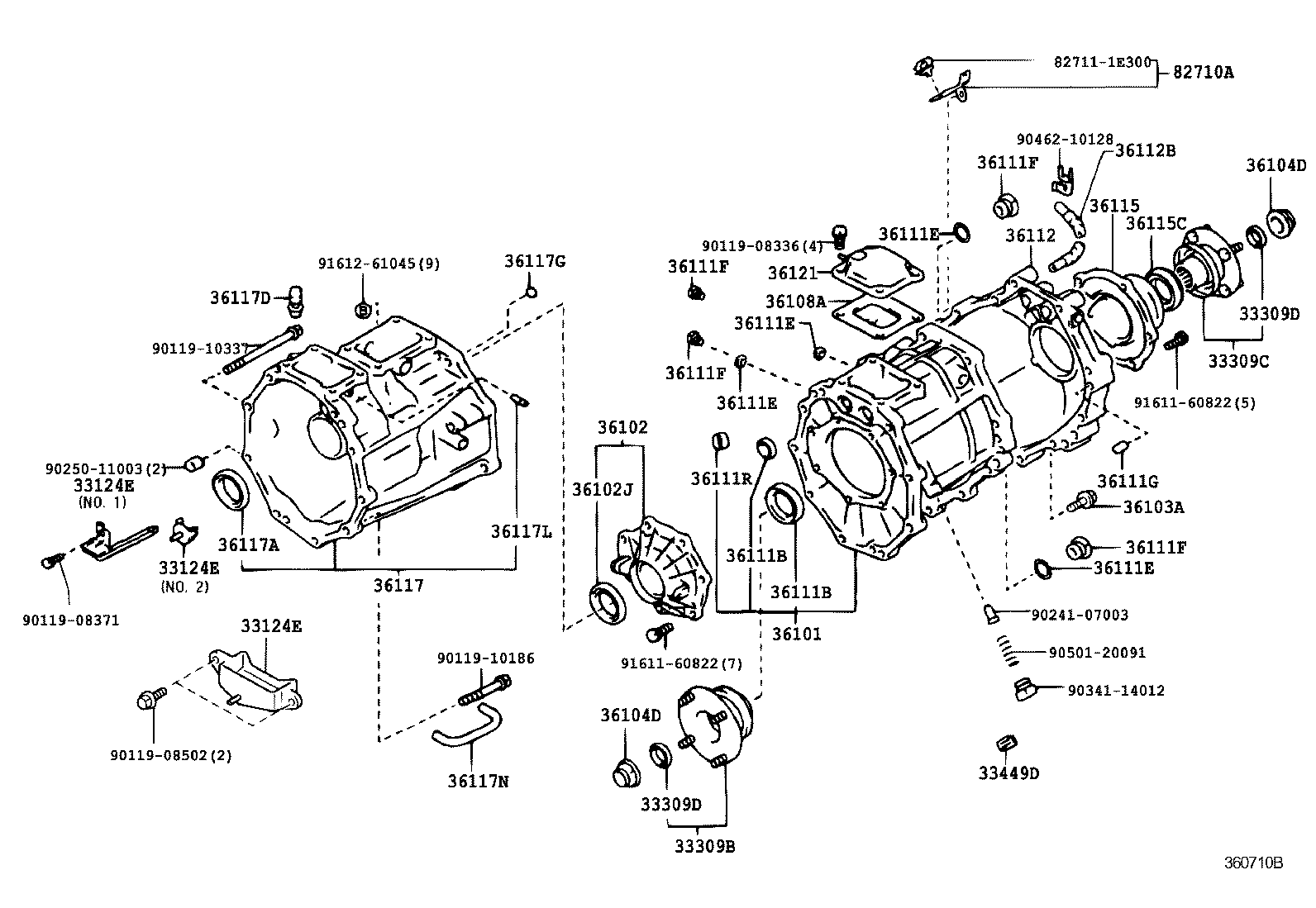

(0202- )LN205..SR5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-36010 |
LN205..SR5 NO.2 |
1 | ||
| 33124-35070 |
LN205..SR5 NO.1 |
1 | ||
| 33124-35020 |
LN205..SR5 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-36010 |
LN205..SR5 NO.2 |
1 | ||
| 33124-35070 |
LN205..SR5 NO.1 |
1 | ||
| 33124-35020 |
LN205..SR5 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-36010 |
LN205..SR5 NO.2 |
1 | ||
| 33124-35070 |
LN205..SR5 NO.1 |
1 | ||
| 33124-35020 |
LN205..SR5 |
1 | ||
| 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35061 |
LN205..SR5 |
1 | ||
| 33309-35030 |
LN205..SR5 |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35040 |
LN205..SR5 |
1 | ||
| 33309-35100 |
LN205..SR5 |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
LN205..SR5 |
2 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
LN205..SR5 |
2 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-32020 |
LN205..SR5 |
1 | ||
| 36101 - CASE SUB-ASSY, TRANSFER | ||||
| 36101-35120 |
LN205..SR5 |
1 | ||
| 36102 - COVER SUB-ASSY, TRANSFER CASE | ||||
| 36102-35051 |
LN205..SR5 |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 90311-40021 |
LN205..SR5 |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 90119-08A28 |
LN205..SR5 *8-1.25PX55-30 |
12 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20001 |
LN205..SR5 |
2 | ||
| 90179-22016 |
LN205..SR5 |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20001 |
LN205..SR5 |
2 | ||
| 90179-22016 |
LN205..SR5 |
2 | ||
| 36108A - DEFLECTOR SUB-ASSY, BREATHER OIL | ||||
| 36128-35060 |
KZN205,LN205..SR5,SRV |
1 | ||
| 36108-35031 |
LN205..SR5 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41010 |
KZN205,LN205..SR5,SRV FR OUTPUT SIDE |
1 | ||
| 90311-15008 |
LN205..SR5 FORK SHAFT SIDE |
2 | ||
| 90311-41008 |
LN205..SR5 FR OUTPUT SIDE |
1 | ||
| 90311-41011 |
KZN205,LN205..SR5,SRV FR OUTPUT SIDE |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41010 |
KZN205,LN205..SR5,SRV FR OUTPUT SIDE |
1 | ||
| 90311-15008 |
LN205..SR5 FORK SHAFT SIDE |
2 | ||
| 90311-41008 |
LN205..SR5 FR OUTPUT SIDE |
1 | ||
| 90311-41011 |
KZN205,LN205..SR5,SRV FR OUTPUT SIDE |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LN205..SR5 |
4 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LN205..SR5 |
4 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LN205..SR5 |
4 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LN205..SR5 |
4 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LN205..SR5 FILLER |
1 | ||
| 90341-18057 |
LN205..SR5 DRAIN |
1 | ||
| 90341-18006 |
LN205..SR5 |
4 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LN205..SR5 FILLER |
1 | ||
| 90341-18057 |
LN205..SR5 DRAIN |
1 | ||
| 90341-18006 |
LN205..SR5 |
4 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LN205..SR5 FILLER |
1 | ||
| 90341-18057 |
LN205..SR5 DRAIN |
1 | ||
| 90341-18006 |
LN205..SR5 |
4 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LN205..SR5 FILLER |
1 | ||
| 90341-18057 |
LN205..SR5 DRAIN |
1 | ||
| 90341-18006 |
LN205..SR5 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN205..SR5 L=15,OD=8 |
4 | ||
| 90250-10214 |
LN205..SR5 L=14,OD=10 |
2 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-35070 |
LN205..SR5 |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-35040 |
LN205..SR5 |
1 | ||
| 36115-35010 |
LN205..SR5 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38140 |
LN205..SR5 |
1 | ||
| 90311-41007 |
LN205..SR5 |
1 | ||
| 36117 - ADAPTER, TRANSFER | ||||
| 36107-35092 |
LN205..SR5 |
1 | ||
| 36107-35100 |
LN205..SR5 |
1 | ||
| 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90311-32009 |
LN205..SR5 |
1 | ||
| 90311-40023 |
LN205..SR5 |
1 | ||
| 36117D - PLUG(FOR TRANSFER ADAPTER) | ||||
| 90341-18006 |
LN205..SR5 FILLER |
1 | ||
| 90930-03085 |
LN205..SR5 |
1 | ||
| 90341-30003 |
LN205..SR5 DRAIN |
1 | ||
| 36117L - TUBE(FOR TRANSFER ADAPTER) | ||||
| 90441-05001 |
LN205..SR5 |
1 | ||
| 36117N - HOSE(FOR TRANSFER ADAPTER) | ||||
| 90904-45005 |
LN205..SR5 |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36102-35040 |
LN205..SR5 |
1 | ||
| 36121-35010 |
LN205..SR5 |
1 | ||
| 82710A - CLAMP ASSY, WIRING HARNESS | ||||
| 82710-35040 |
LN205..SR5 |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 90119-08336 | ||||
| 90119-08371 | ||||
| 90119-08502 | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
| 90241-07003 | ||||
| 90250-11003 | ||||
| 90341-14012 | ||||
| 90462-10128 | ||||
| 90501-20091 | ||||
| 91611-60822 | ||||
| 91612-61045 | ||||
