LN205L-PRMSS (2001)

Toyota Hilux/4runner (4wd)

Production Jun 2001 - Dec 2004
Engine 5L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )LN205

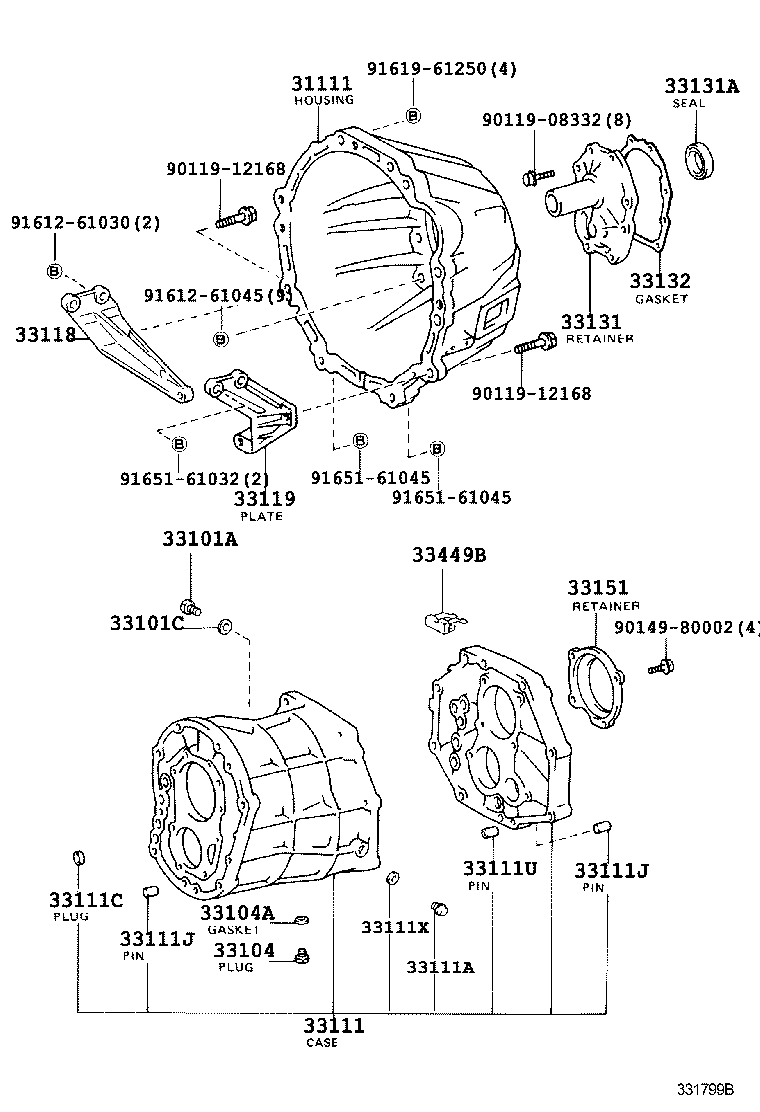

Click highlighted areas on diagram

diagram 31111 33101A 33101C 33104 33104A 33111 33111A 33111C 33111J 33111J 33111U 33111X 33118 33119 33131 33131A 33132 33151 33449B 9011908332 9011912168 9011912168 9014980002 9161261030 9161261045 9161961250 9165161032 9165161045 9165161045
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-35032

LN205

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

LN205..SR5

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

LN205..SR5

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

LN205

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

KZN205,LN205

 1
33111 - CASE, MANUAL TRANSMISSION
33101-35050

LN205..SR5

 1
33101-35070

LN205..SR5

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18019

LN205..SR5

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

LN205

OD=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

LN205

L=16,OD=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

LN205

L=16,OD=12

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

LN205

L=14,OD=15

 2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

LN205

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-35060

LN205

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-25020

LN205

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020

LN205

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014

LN205

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010

LN205

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030

LN205

 1
33449B - MAGNET, TRANSMISSION
33449-26010

LN205

 1
Common parts
90119-08332
90119-12168
90149-80002
91612-61030
91612-61045
91619-61250
91651-61032
91651-61045
