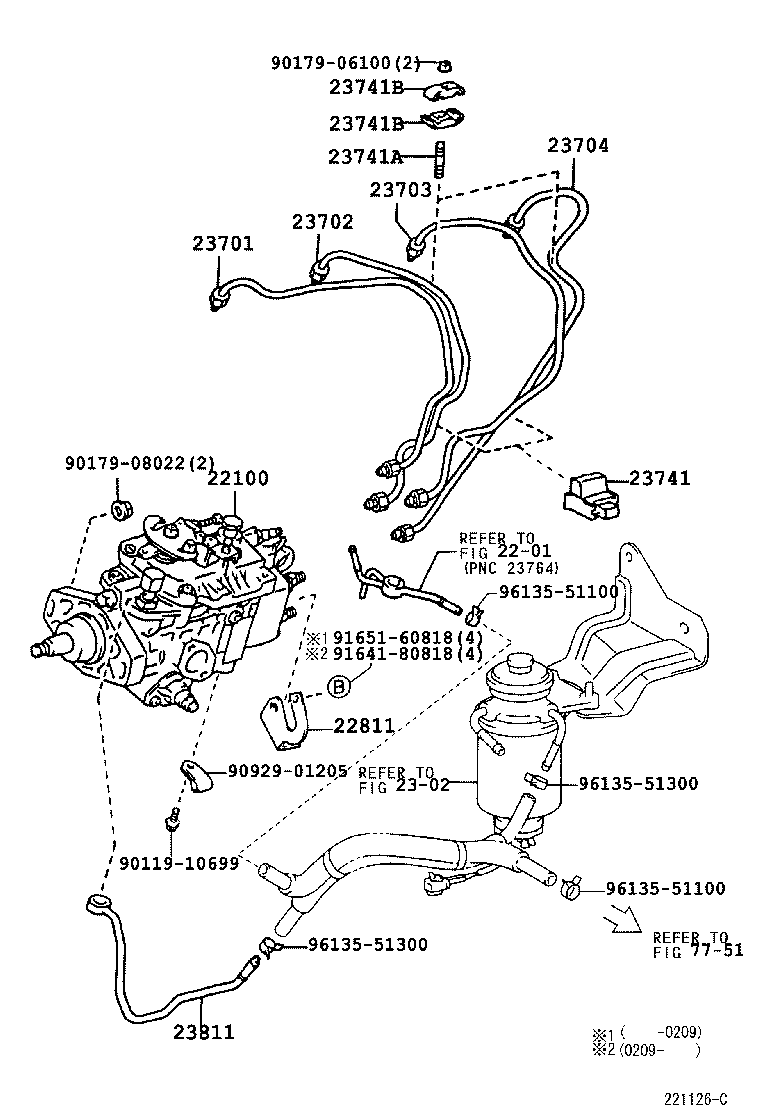

Toyota Hilux/4runner (4wd) LN205 INJECTION PUMP ASSEMBLY

Part #	Description	Period	Qty
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-5D200	5L..LN205 W(HIGH ALTITUDE COMPENSATOR)	06/2001 - 12/2004	1
22100-5D220	5L..LN205 W/O(HIGH ALTITUDE COMPENSATOR)	06/2001 - 12/2004	1
22811 - STAY, INJECTION PUMP, NO.1
22811-54042	5L..LN205	06/2001 - 12/2004	1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54140	5L..LN205	06/2001 - 12/2004	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54140	5L..LN205	06/2001 - 12/2004	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54100	5L..LN205	06/2001 - 12/2004	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54100	5L..LN205	06/2001 - 12/2004	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54030	5L..LN205	06/2001 - 12/2004	2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06095	5L..LN205	06/2001 - 12/2004	2
23741B - CLAMP, INJECTION PIPE
23741-56010	5L..LN205	06/2001 - 12/2004	4
23741B - CLAMP, INJECTION PIPE
23741-56010	5L..LN205	06/2001 - 12/2004	4
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54151	5L..LN205	06/2001 - 12/2004	1
Common parts
90119-10699
90179-06100
90179-08022
90929-01205
91641-80818
91651-60818
96135-51100
96135-51300
Linked diagrams
2201
2302
7751

LN205L-PRMSS (2001)
