LN205L-PRMSS (2001)

Toyota Hilux/4runner (4wd)

Production Jun 2001 - Dec 2004
Engine 5L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )5L

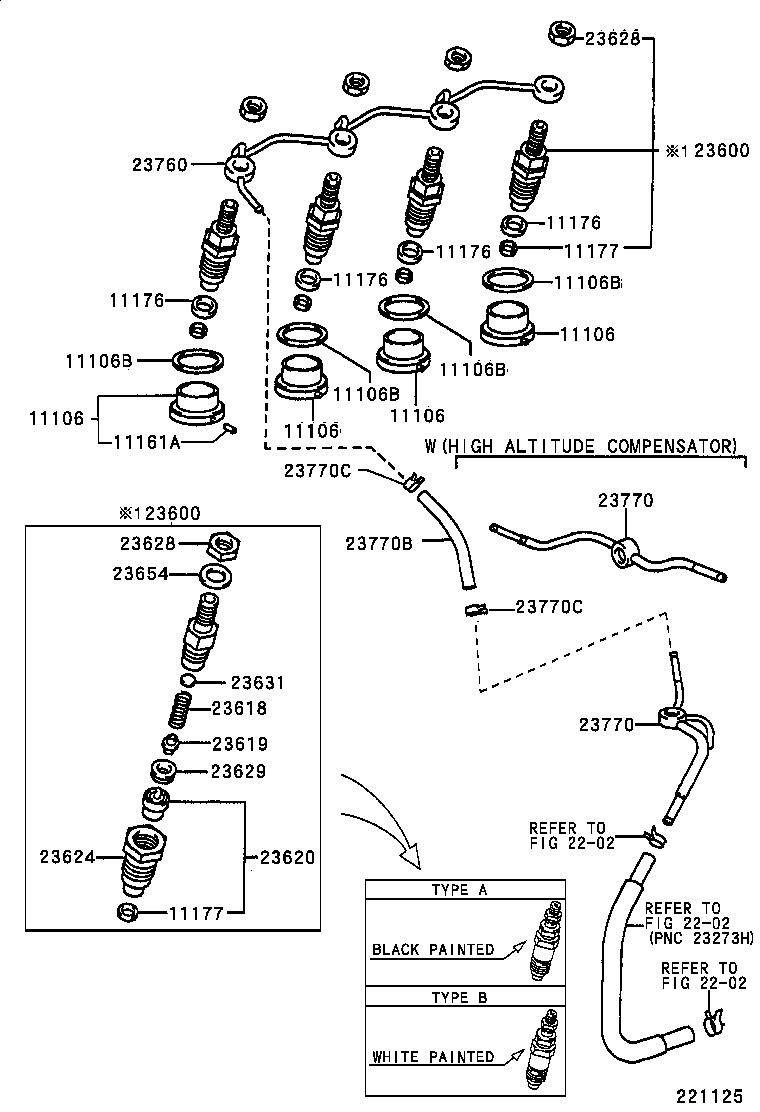

Click highlighted areas on diagram

diagram 11106 11106 11106 11106 11106B 11106B 11106B 11106B 11161A 11176 11176 11176 11176 11177 11177 2202 2202 2202 23600 23600 23618 23619 23620 23624 23628 23628 23629 23631 23654 23760 23770 23770 23770B 23770C 23770C
Part # Description Qty Price
11106 - CHAMBER SUB-ASSY, COMBUSTION
11106-54171

5L..LN205

 4
11106 - CHAMBER SUB-ASSY, COMBUSTION
11106-54171

5L..LN205

 4
11106 - CHAMBER SUB-ASSY, COMBUSTION
11106-54171

5L..LN205

 4
11106 - CHAMBER SUB-ASSY, COMBUSTION
11106-54171

5L..LN205

 4
11106B - SHIM(FOR COMBUSTION CHAMBER)
11165-54030

5L..LN205

T=0.03

 8
11106B - SHIM(FOR COMBUSTION CHAMBER)
11165-54030

5L..LN205

T=0.03

 8
11106B - SHIM(FOR COMBUSTION CHAMBER)
11165-54030

5L..LN205

T=0.03

 8
11106B - SHIM(FOR COMBUSTION CHAMBER)
11165-54030

5L..LN205

T=0.03

 8
11161A - PIN, STRAIGHT(FOR COMBUSTION CHAMBER)
90250-02046

5L..LN205

 4
11176 - SEAT, INJECTION NOZZLE
11176-64010

5L..LN205

 4
11176-05010

5L..LN205

(L)

 4
11176-64010

5L..LN205

(J)

 4
11176 - SEAT, INJECTION NOZZLE
11176-64010

5L..LN205

 4
11176-05010

5L..LN205

(L)

 4
11176-64010

5L..LN205

(J)

 4
11176 - SEAT, INJECTION NOZZLE
11176-64010

5L..LN205

 4
11176-05010

5L..LN205

(L)

 4
11176-64010

5L..LN205

(J)

 4
11176 - SEAT, INJECTION NOZZLE
11176-64010

5L..LN205

 4
11176-05010

5L..LN205

(L)

 4
11176-64010

5L..LN205

(J)

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-54020

5L..LN205

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-54020

5L..LN205

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-59315

5L..LN205

TYPE B:REFER ILLUST.

 4
23600-59266

5L..LN205

TYPE A:REFER ILLUST.

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-59315

5L..LN205

TYPE B:REFER ILLUST.

 4
23600-59266

5L..LN205

TYPE A:REFER ILLUST.

 4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-54730

5L..LN205

 4
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-64010

5L..LN205

 4
23620 - NOZZLE ASSY
23620-59115

5L..LN205

 4
23624 - NUT, NOZZLE RETAINING
23624-64041

5L..LN205

TYPE B:REFER ILLUST.

 1
23624-64040

5L..LN205

TYPE A:REFER ILLUST.

 1
23628 - NUT(FOR RING PACKING SETTING)
23628-64010

5L..LN205

 4
23628 - NUT(FOR RING PACKING SETTING)
23628-64010

5L..LN205

 4
23629 - PIECE, DISTANCE(FOR NOZZLE)
23629-54080

5L..LN205

 4
23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631-64018

5L..LN205

T=1.100

 4
23631-64012

5L..LN205

T=0.950

 4
23632-64018

5L..LN205

T=1.350

 4
23632-64016

5L..LN205

T=1.300

 4
23633-64010

5L..LN205

T=1.400

 4
23631-64016

5L..LN205

T=1.050

 4
23631-64014

5L..LN205

T=1.000

 4
23632-64012

5L..LN205

T=1.200

 4
23633-64016

5L..LN205

T=1.550

 4
23632-64010

5L..LN205

T=1.150

 4
23632-64014

5L..LN205

T=1.250

 4
23634-64012

5L..LN205

T=1.700

 4
23634-64016

5L..LN205

T=1.800

 4
23633-64014

5L..LN205

T=1.500

 4
23633-64012

5L..LN205

T=1.450

 4
23631-64010

5L..LN205

T=0.900

 4
23634-64014

5L..LN205

T=1.750

 4
23634-64018

5L..LN205

T=1.850

 4
23634-64010

5L..LN205

T=1.650

 4
23633-64018

5L..LN205

T=1.600

 4
23635-64012

5L..LN205

T=1.950

 4
23635-64010

5L..LN205

T=1.900

 4
23654 - WASHER(FOR RING PACKING)
23654-64010

5L..LN205

 1
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-54030

5L..LN205

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23764-54090

5L..LN205

W(HIGH ALTITUDE COMPENSATOR)

 1
23764-54080

5L..LN205

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23764-54090

5L..LN205

W(HIGH ALTITUDE COMPENSATOR)

 1
23764-54080

5L..LN205

 1
23770B - HOSE, FUEL
95333-04020

5L..LN205

*H,L=120,ID=4

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96132-51000

5L..LN205

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96132-51000

5L..LN205

 2
