LN205L-PRMSS (2001)

Toyota Hilux/4runner (4wd)

Production Jun 2001 - Dec 2004

Engine 5L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0106- )5L

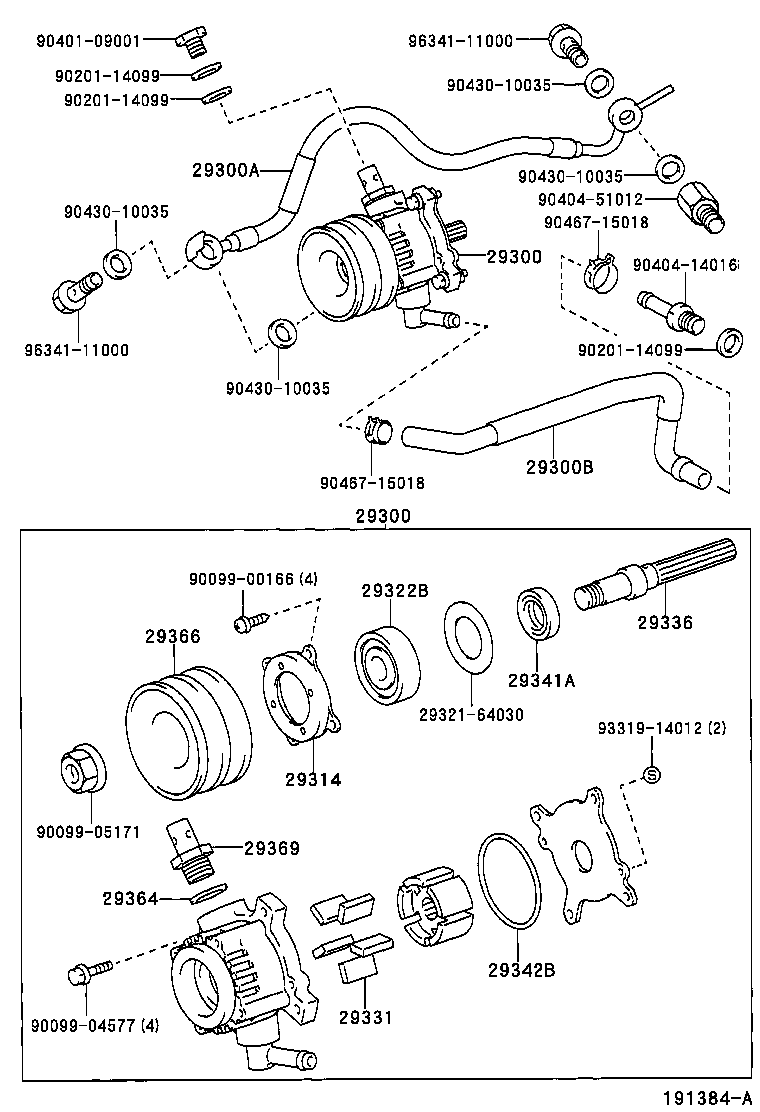

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
29300 - PUMP ASSY, VACUUM
29300-54180	5L..LN205	06/2001 - 12/2999	1
29300 - PUMP ASSY, VACUUM
29300-54180	5L..LN205	06/2001 - 12/2999	1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02120	5L..LN205	06/2001 - 12/2004	1
29300B - HOSE, VACUUM PUMP OIL OUTLET
29611-54050	5L..LN205	06/2001 - 12/2999	1
29314 - RING, STOP
29314-64030	5L..LN205	06/2001 - 12/2999	1
29322B - BEARING, VACUUM PUMP
90099-10199	5L..LN205	06/2001 - 12/2999	1
29331 - BLADE, VACUUM PUMP, A
29331-54130	5L..LN205	06/2001 - 12/2999	5
29336 - SHAFT, VACUUM PUMP
29336-64031	5L..LN205	06/2001 - 12/2999	1
29341A - SEAL, OIL
29341-64030	5L..LN205	06/2001 - 12/2999	1
29342B - RING, O
29342-64030	5L..LN205	06/2001 - 12/2999	1
29364 - WASHER, VACUUM PUMP
29364-66010	1KZTE,5L..KZN205,LN205	06/2001 - 12/2999	1
29366 - PULLEY, VACUUM PUMP
29366-54110	5L..LN205	06/2001 - 12/2999	1
29369 - VALVE SUB-ASSY, CHECK
29369-64030	1KZTE,5L..KZN205,LN205	06/2001 - 12/2999	1
Common parts
29321-64030
90099-00166
90099-04577
90099-05171
90201-14099
90401-09001
90404-14016
90404-51012
90430-10035
90467-15018
93319-14012
96341-11000
