LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
Production
Jun 2001
-
Dec 2004
Engine
5L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0106- )5L

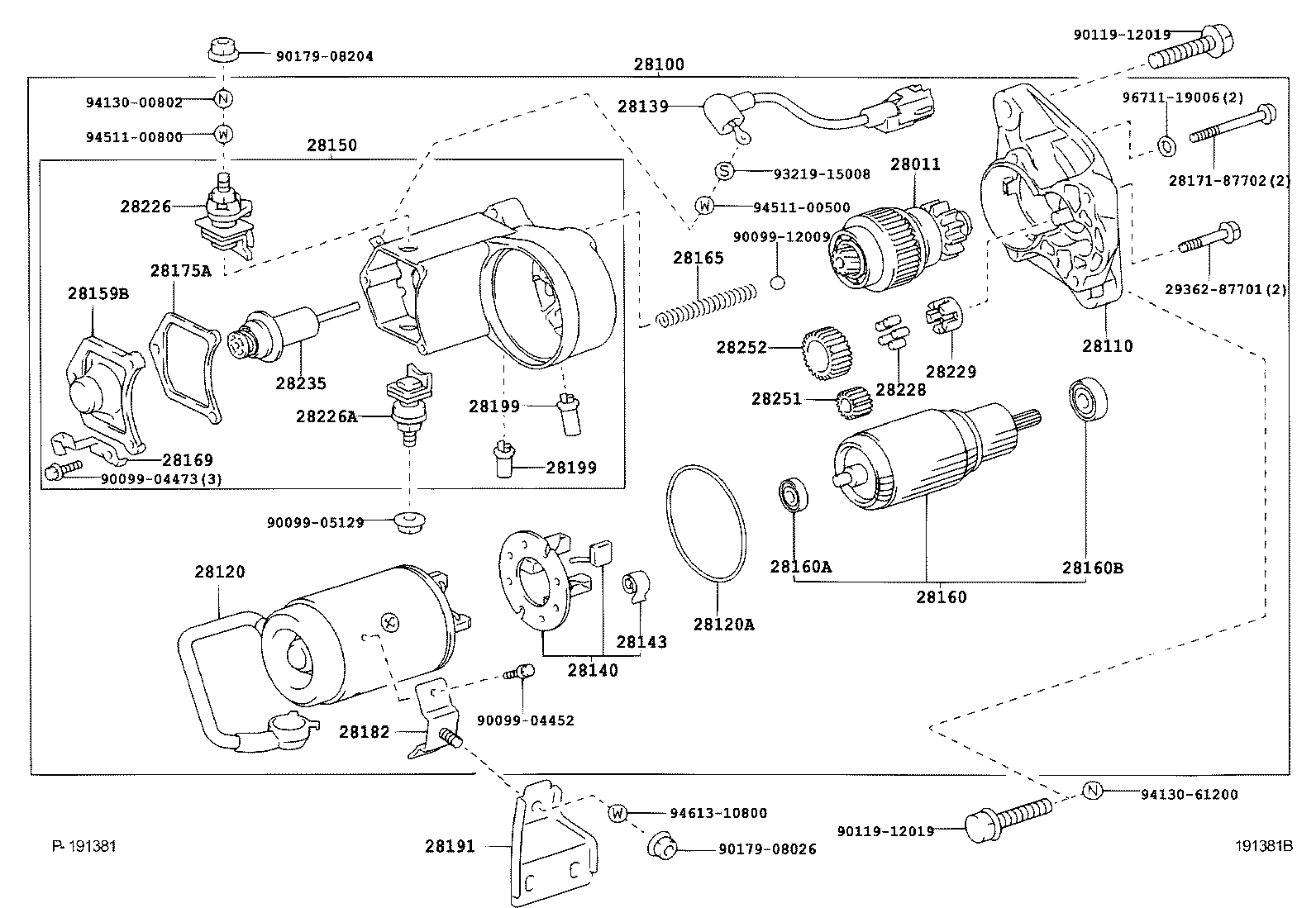

Click highlighted areas on diagram
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54260 |
5L..LN205 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54260 |
5L..LN205 12V 2.2KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54260 |
5L..LN205 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54260 |
5L..LN205 |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-64040 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54171 |
5L..LN205 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-64040 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
1KZTE,5L..KZN205,LN205 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54330 |
5L..LN205 |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-64041 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10143 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54260 |
5L..LN205 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28183-54260 |
5L..LN205 |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54040 |
5L..LN205 |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
1KZTE,5L..KZN205,LN205 |
2 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
1KZTE,5L..KZN205,LN205 |
2 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54330 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
1KZTE,5L..KZN205,LN205 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-64040 |
1KZTE,5L..KZN205,LN205 |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90099-04452 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08026 | ||||
| 90179-08204 | ||||
| 93219-15008 | ||||
| 94130-00802 | ||||
| 94130-61200 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94613-10800 | ||||
| 96711-19006 | ||||
