LN205L-PRMSS (2001)

Toyota Hilux/4runner (4wd)

Production Jun 2001 - Dec 2004
Engine 5L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )5L

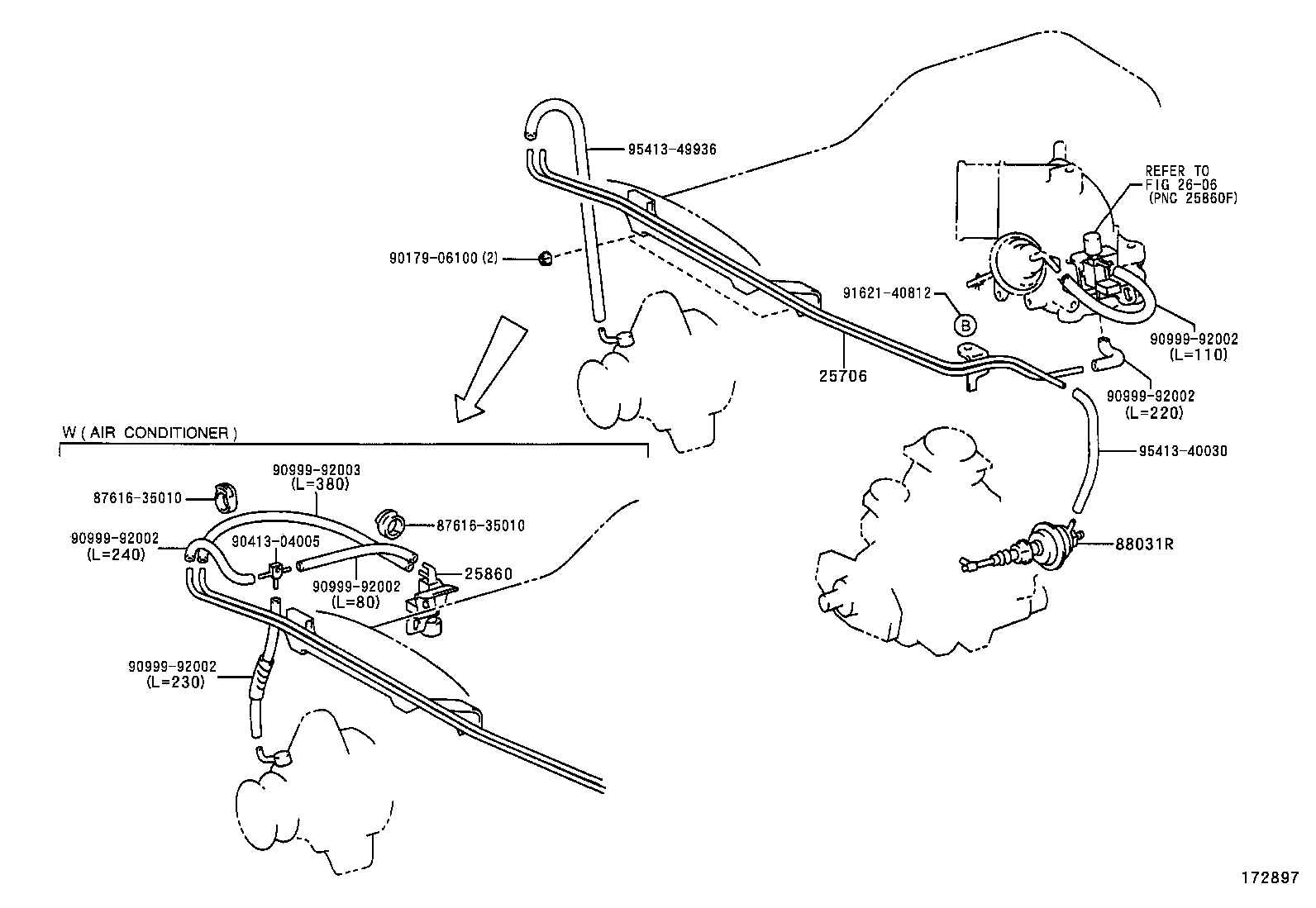

Click highlighted areas on diagram

diagram 25706 25860 2606 8761635010 8761635010 88031R 9017906100 9041304005 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9162140812 9541340030 9541349936
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-54041

5L..LN205

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-54330

5L..LN205

 1
88031R - ACTUATOR SET, IDLE-UP
88031-35131

LN205

 1
88031-35130

LN205

 1
Common parts
87616-35010
90179-06100
90413-04005
90999-92002
90999-92003
91621-40812
95413-40030
95413-49936
Linked diagrams
2606
