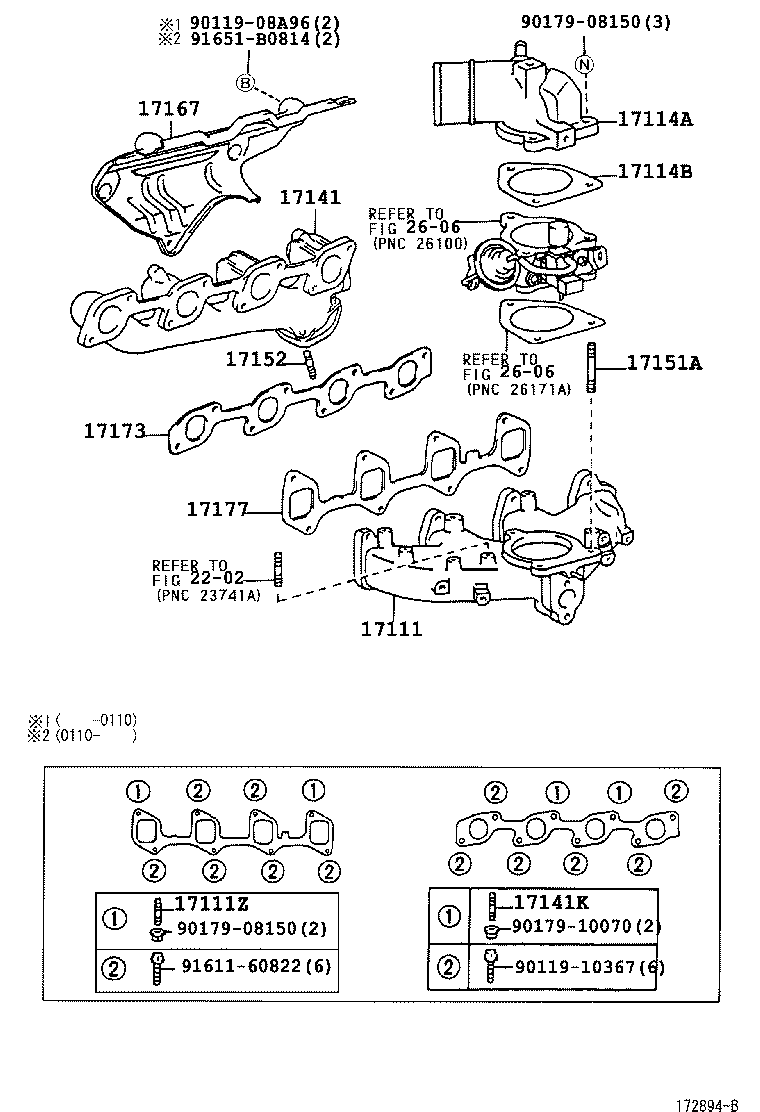

Toyota Hilux/4runner (4wd) LN205 MANIFOLD

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17111-54113	5L..LN205	06/2002 - 12/2004	1
17111-54112	5L..LN205	06/2001 - 06/2002	1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90116-08220	5L..LN205	06/2001 - 12/2004	2
17114A - FLANGE, INTAKE
17114-54120	5L..LN205	06/2001 - 12/2004	1
17114B - GASKET, INTAKE FLANGE
17116-54030	5L..LN205	06/2001 - 12/2004	1
17141 - MANIFOLD, EXHAUST
17141-54111	5L..LN205	06/2001 - 12/2004	1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90116-10141	5L..LN205	06/2001 - 12/2004	2
17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI)
90116-08292	5L..LN205	06/2001 - 12/2004	3
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10088	5L..LN205	06/2001 - 12/2004	3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-54120	5L..LN205	06/2001 - 12/2004	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54030	5L..LN205	06/2001 - 12/2004	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54021	5L..LN205	06/2001 - 12/2004	1
Common parts
90119-08A96
90119-10367
90179-08150
90179-10070
91611-60822
91651-B0814
Linked diagrams
2202
2606

LN205L-PRMSS (2001)
