LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
Production
Jun 2001
-
Dec 2004
Engine
5L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0106- )5L

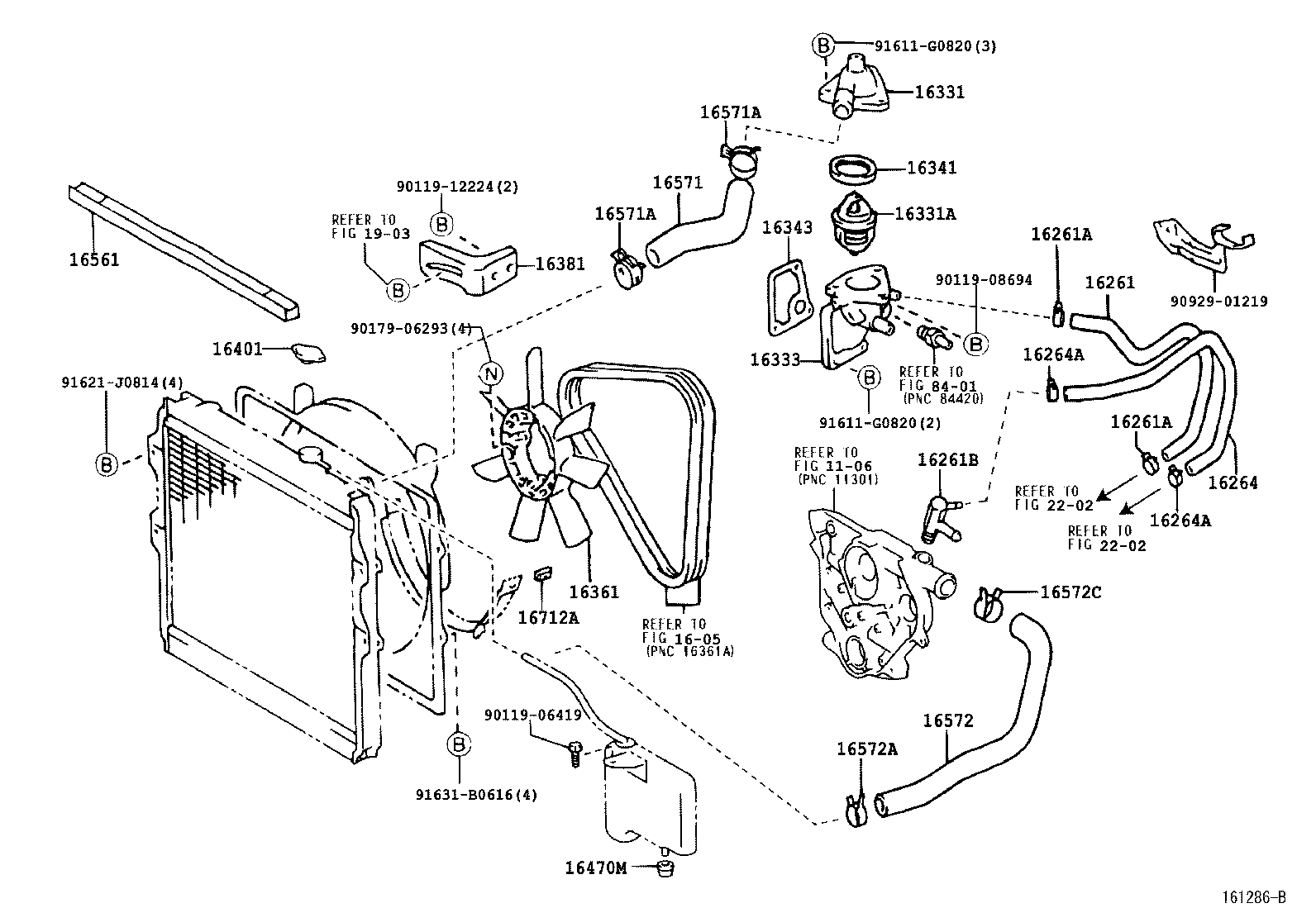

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54121 |
5L..LN205 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
5L..LN205 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
5L..LN205 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
5L..LN205 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54121 |
5L..LN205 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
5L..LN205 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
5L..LN205 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54210 |
5L..LN205 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-54010 |
5L..LN205 *WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54113 |
5L..LN205 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-05020 |
5L..LN205 (L) |
1 | ||
| 16341-35010 |
5L..LN205 (J) |
1 | ||
| 16341-35010 |
5L..LN205 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54040 |
5L..LN205 |
1 | ||
| 16361 - FAN | ||||
| 16361-54131 |
5L..LN205 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54121 |
5L..LN205 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-05140 |
5L..LN205 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-25025 |
5L..LN205 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-54030 |
5L..LN205 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54590 |
5L..LN205 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
5L..LN205 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
5L..LN205 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54690 |
5L..LN205 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
5L..LN205 |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90466-41008 |
5L..LN205 |
1 | ||
| 16712A - CLIP | ||||
| 90468-06092 |
5L..LN205 |
2 | ||
| Common parts | ||||
| 90119-06419 | ||||
| 90119-08694 | ||||
| 90119-12224 | ||||
| 90179-06293 | ||||
| 90929-01219 | ||||
| 91611-G0820 | ||||
| 91621-J0814 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1605 | ||||
| 1903 | ||||
| 2202 | ||||
| 8401 | ||||
