LN205L-PRMSS (2001)

Toyota Hilux/4runner (4wd)

Production Jun 2001 - Dec 2004
Engine 5L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )5L

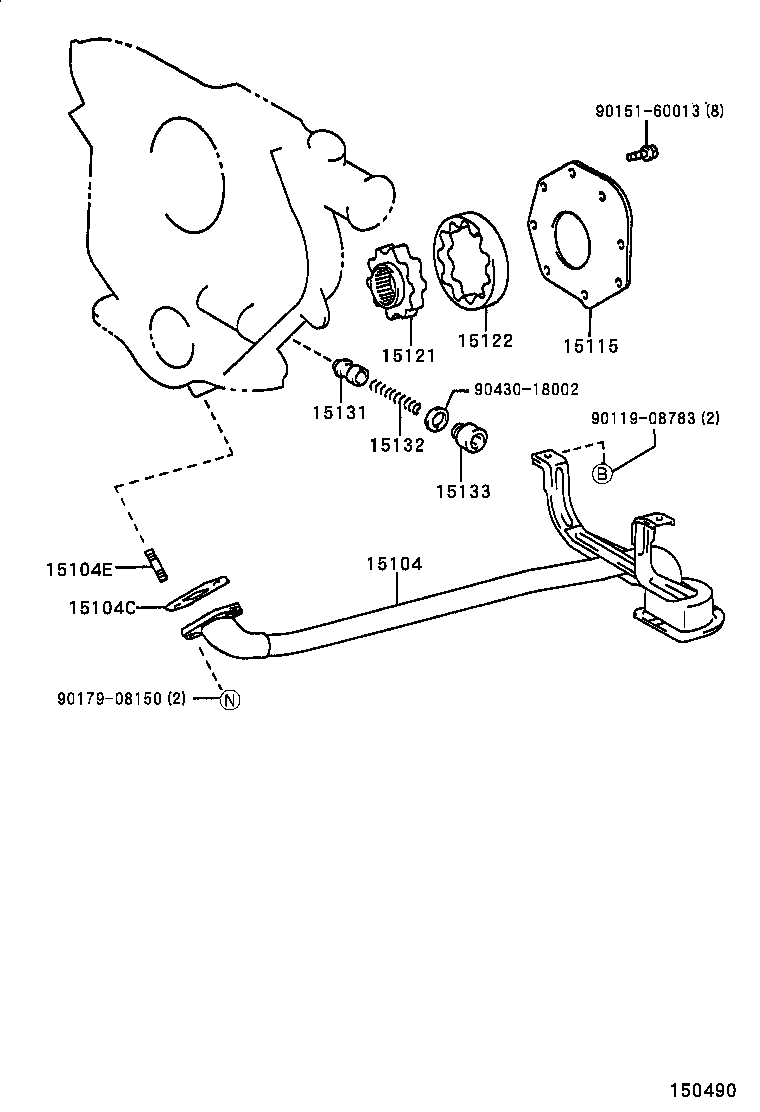

Click highlighted areas on diagram

diagram 15104 15104C 15104E 15115 15121 15122 15131 15132 15133 9011908783 9015160013 9017908150 9043018002
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-54170

5L..LN205

 1
15104C - GASKET(FOR OIL STRAINER)
15149-54030

5L..LN205

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
92122-40816

5L..LN205

 2
92122-80816

5L..LN205

 2
15115 - COVER, OIL PUMP
15115-54022

5L..LN205

 1
15121 - GEAR, OIL PUMP DRIVE
15121-54020

5L..LN205

 1
15121-54030

5L..LN205

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-54030

5L..LN205

 1
15122-54020

5L..LN205

 1
15131 - VALVE, OIL PUMP RELIEF
15131-54010

5L..LN205

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-54010

5L..LN205

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-54010

5L..LN205

 1
Common parts
90119-08783
90151-60013
90179-08150
90430-18002
